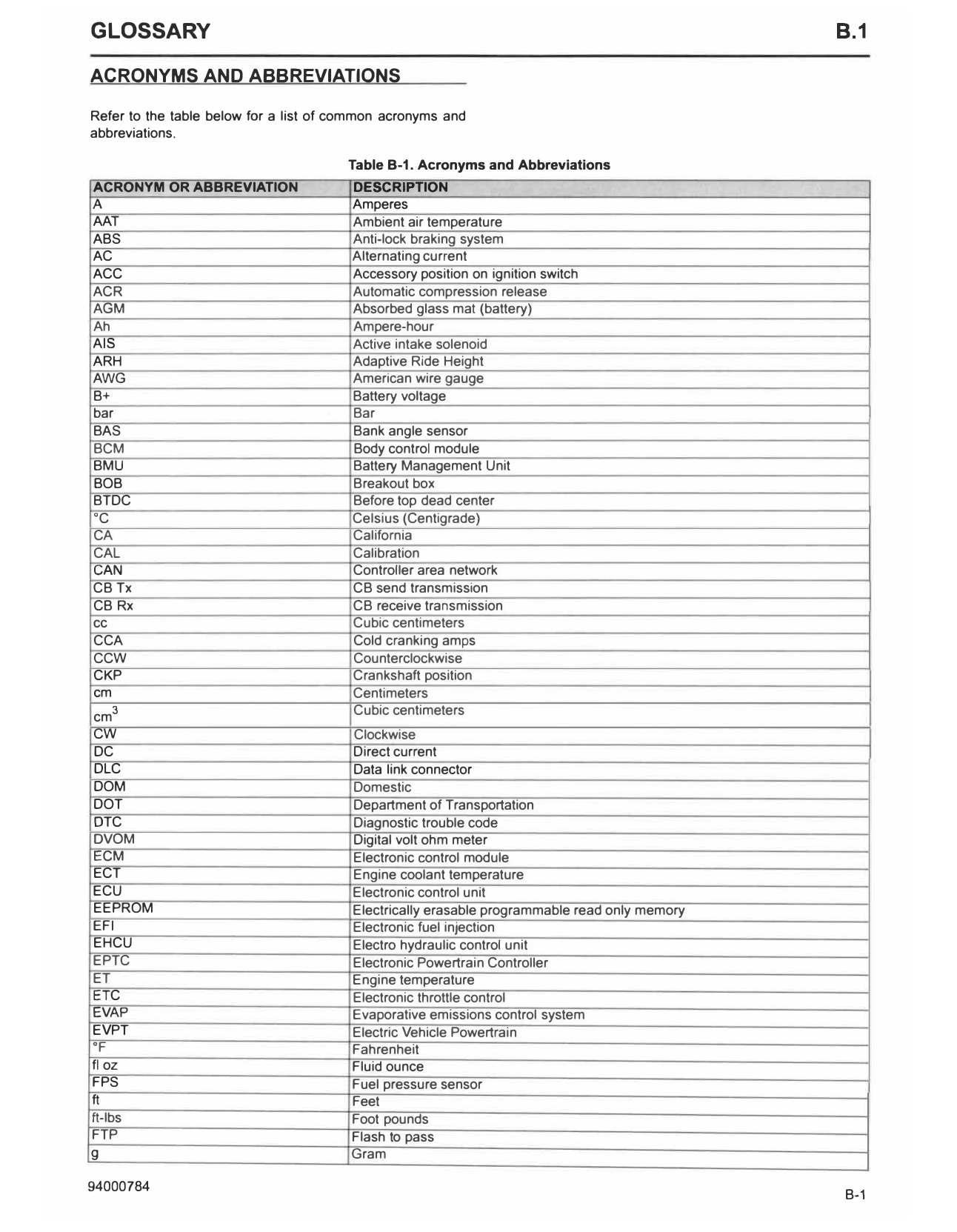

GLOSSARY B.1
ACRONYMS AND ABBREVIATIONS
Refer to the table below for a list of common acronyms and
abbreviations.
Table B-1. Acronyms and Abbreviations
ACRONYM OR ABBREVIATION DESCRIPTION
A Amperes
AAT Ambient air temperature
ABS Anti-lock braking system
AC Alternating current
ACC Accessory position on ignition switch
ACR Automatic compression release
AGM Absorbed glass mat (battery)
Ah Ampere-hour
AIS Active intake solenoid
ARH Adaptive Ride Height
AWG American wire gauge
B+ Battery voltage
bar Bar
BAS Bank angle sensor
BCM Body control module
BMU Battery Management Unit
BOB Breakout box
BTDC Before top dead center
oc Celsius (Centigrade)
CA California
CAL Calibration
CAN Controller area network
CB Tx CB send transmission
CB Rx CB receive transmission
cc Cubic centimeters
CCA Cold cranking amps
ccw Counterclockwise
CKP Crankshaft position
cm Centimeters
cm
3 Cubic centimeters
cw Clockwise
DC Direct current
DLC Data link connector
DOM Domestic
DOT Department of Transportation
OTC Diagnostic trouble code
DVOM Digital volt ohm meter
ECM Electronic control module
ECT Engine coolant temperature
ECU Electronic control unit
EEPROM Electrically erasable programmable read only memory
EFI Electronic fuel injection
EHCU Electro hydraulic control unit
EPTC Electronic Powertrain Controller
ET Engine temperature
ETC Electronic throttle control
EVAP Evaporative emissions control system
EVPT Electric Vehicle Powertrain
OF Fahrenheit
fl oz Fluid ounce
FPS Fuel pressure sensor
ft Feet
ft-lbs Foot pounds
FTP Flash to pass
g Gram
B-1

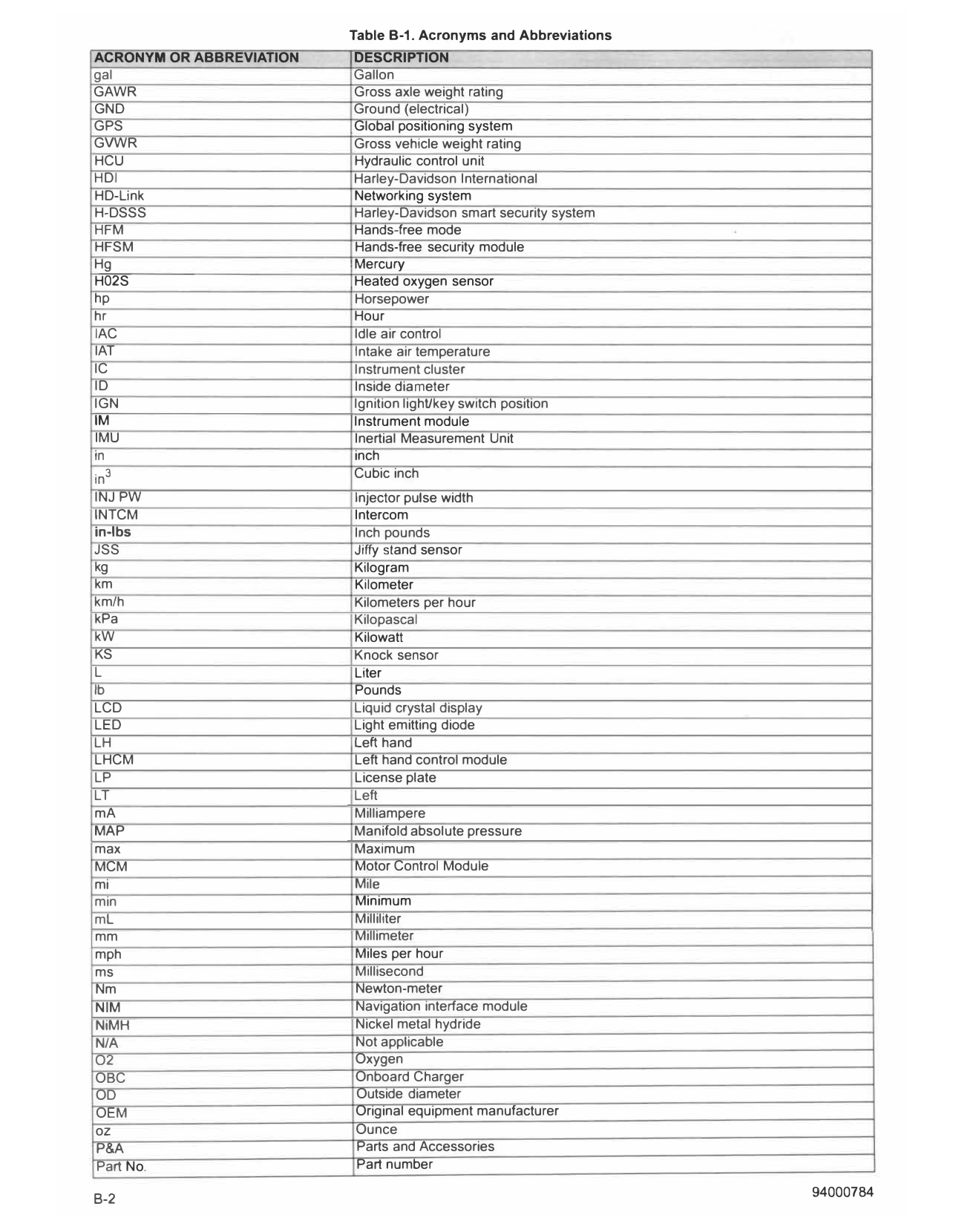

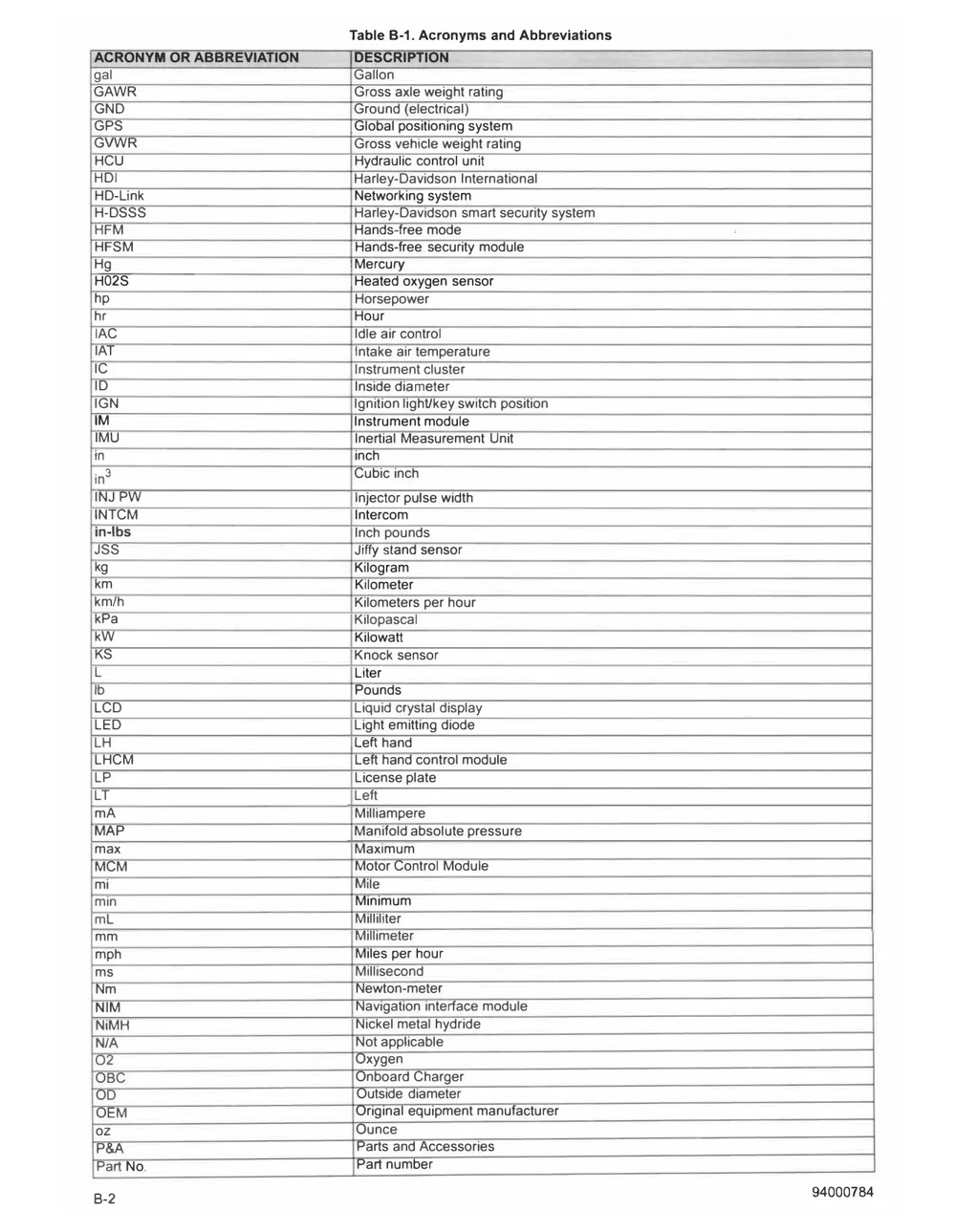

Table B-1. Acronyms and Abbreviations
ACRONYM OR ABBREVIATION DESCRIPTION
gal Gallon
GAWR Gross axle weight rating
GND Ground (electrical)
GPS Global positioning system
GVWR Gross vehicle weight rating
HCU Hydraulic control unit
HDI Harley-Davidson International
HD-Link Networking system
H-DSSS Harley-Davidson smart security system
HFM Hands-free mode
HFSM Hands-free security module
Hg Mercury
H02S Heated oxygen sensor
hp Horsepower
hr Hour
IAC Idle air control
IAT Intake air temperature
IC Instrument cluster
ID Inside diameter
IGN Ignition light/key switch position
IM Instrument module
IMU Inertial Measurement Unit
in inch
. 3
tn Cubic inch
INJ PW Injector pulse width
INTCM Intercom
in-lbs Inch pounds
JSS Jiffy stand sensor
kg Kilogram
km Kilometer
km/h Kilometers per hour
kPa Kilopascal
kW Kilowatt
KS Knock sensor
L Liter
lb Pounds
LCD Liquid crystal display
LED Light emitting diode
LH Left hand
LHCM Left hand control module
LP License plate
LT Left
mA Milliampere
MAP Manifold absolute pressure
max Maximum
MCM Motor Control Module
mi Mile
min Minimum
ml Milliliter
mm Millimeter
mph Miles per hour
ms Millisecond
Nm Newton-meter
NIM Navigation interface module
NiMH Nickel metal hydride
N/A Not applicable
02 Oxygen
OBC Onboard Charger
OD Outside diameter
OEM Original equipment manufacturer
oz Ounce
P&A Parts and Accessories
Part No. Part number
8-2 94000784

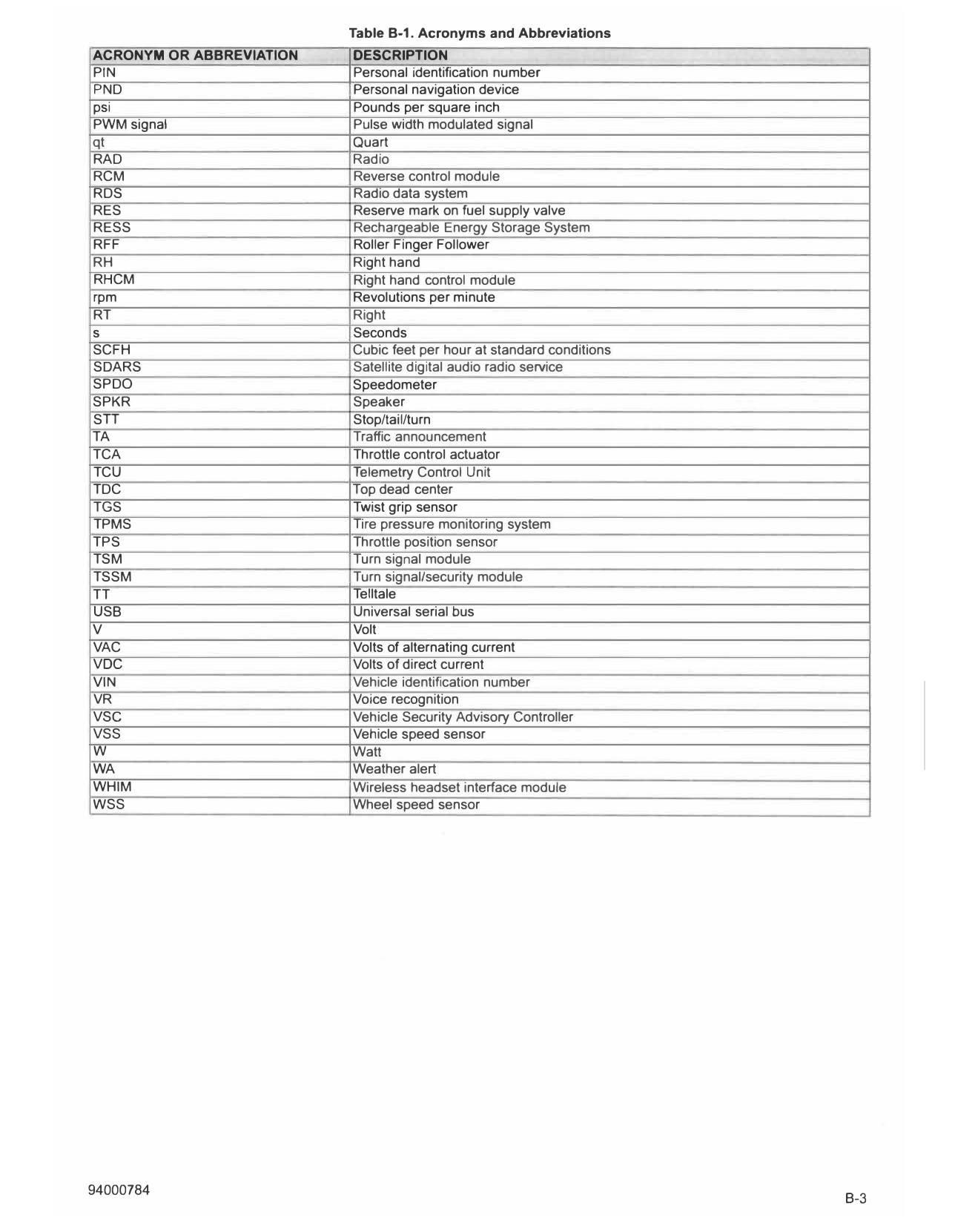

Table B-1. Acronyms and Abbreviations
ACRONYM OR ABBREVIATION DESCRIPTION
PIN Personal identification number
PND Personal navigation device
psi Pounds per square inch
PWM signal Pulse width modulated signal
qt Quart
RAD Radio
RCM Reverse control module
RDS Radio data system
RES Reserve mark on fuel supply valve
RESS Rechargeable Energy Storage System
RFF Roller Finger Follower
RH Right hand
RHCM Right hand control module
rpm Revolutions per minute
RT Right
s Seconds
SCFH Cubic feet per hour at standard conditions
SOARS Satellite digital audio radio service
SPDO Speedometer
SPKR Speaker
STT Stop/tail/turn
TA Traffic announcement
TCA Throttle control actuator
TCU Telemetry Control Unit
TDC Top dead center
TGS Twist grip sensor
TPMS Tire pressure monitoring system
TPS Throttle position sensor
TSM Turn signal module
TSSM Turn signal/security module
TT Telltale
USB Universal serial bus
V Volt
VAC Volts of alternating current
voe Volts of direct current
VIN Vehicle identification number
VR Voice recognition
vsc Vehicle Security Advisory Controller
vss Vehicle speed sensor
w Watt
WA Weather alert
WHIM Wireless headset interface module
wss Wheel speed sensor
B-3
