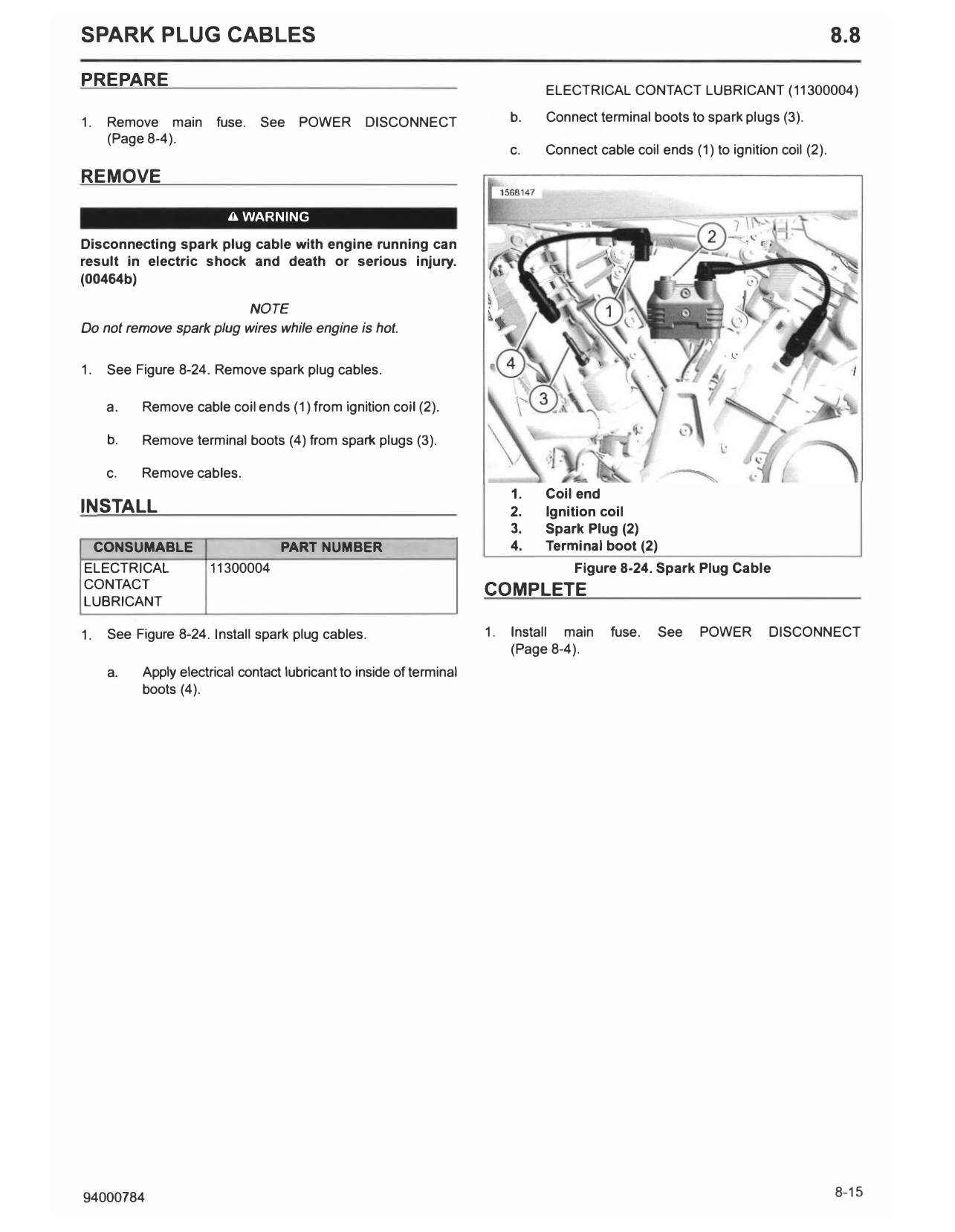

8.8 Spark Plug Cables

SPARK PLUG CABLES                                                                                                                  8.8
PREPARE                                                                        ELECT RICAL CONTACT LUBRICANT (11300004)

1.   Remove main       fuse.   See POWER         DISCONNECT               b.   Connect terminal boots to spark plugs (3).
     (Page 8-4).
                                                                          c.   Connect cable coil ends (1) to ignition coil (2).

REMOVE

                         a WARNING
Disconnecting spark plug cable with engine running can
result in electric shock and death or serious injury.
(00464b)

                          NOTE
Do not remove spark plug wires while engine is hot.

1.   See Figure 8-24. Remove spark plug cables.

     a.   Remove cable coil ends (1) from ignition coil (2).

     b.   Remove terminal boots (4) from spark plugs (3).

     c.   Remove cables.
                                                                          1.   Coil end
INSTALL                                                                   2.   Ignition coil
                                                                          3.   Spark Plug (2)
 CONSUMABLE                       PART NUMBER                             4.   Terminal boot (2)
ELECT RICAL           11300004                                                      Figure 8-24. Spark Plug Cable
CONTACT                                                              COMPLETE
LUBRICANT

1.   See Figure 8-24. Install spark plug cables.                     1.   Install main    fuse.    See   POWER       DISCONNECT
                                                                          (Page 8-4).
     a.   Apply electrical contact lubricant to inside of terminal
          boots (4).

94000784                                                                                                                           8-15
