8.5 Starter Solenoid

STARTER SOLENOID                                                                                                               8.5
PREPARE                                                                  c.   Slide starter solenoid rearward into locking tab (2).

                                                                         d.   Lift rubber boot (7) install positive cable (5) install
1.   Remove main fuse.          See POWER DISCONNECT
                                                                              nut (6). Tighten.
     (Page 8-4).
                                                                              Torque: 53.1-88.5 in-lbs (6-10 N·m) Starter solenoid
2.   Remove skid plate. See SKID PLATE (Page 3-92).                           nut
                                                                         e.   Connect solenoid connector (4).
3.   Remove battery negative cable from battery. See INSPECT
     BATTERY (Page 2-38).

REMOVE

1.   See Figure 8-6. Remove starter solenoid (3).

     a.    Disconnect solenoid connector (4).

     b.   Lift rubber boot (7) remove nut (6) and positive cable
          (5) from starter solenoid.

     c.   Release locking tab (2) and slide starter solenoid
          forward.
                                                                         1.   Starter cable
     d.    Pull down on rubber boot (7) remove nut (8) and               2.   Locking tab
           starter cable (1) from starter solenoid.                      3.   Starter solenoid
                                                                         4.   Solenoid connector
     e.    Remove starter solenoid (3).                                  5.   Positive battery cable
                                                                         6.   Nut
INSTALL                                                                  7.   Rubber boot
                                                                         8.   Nut

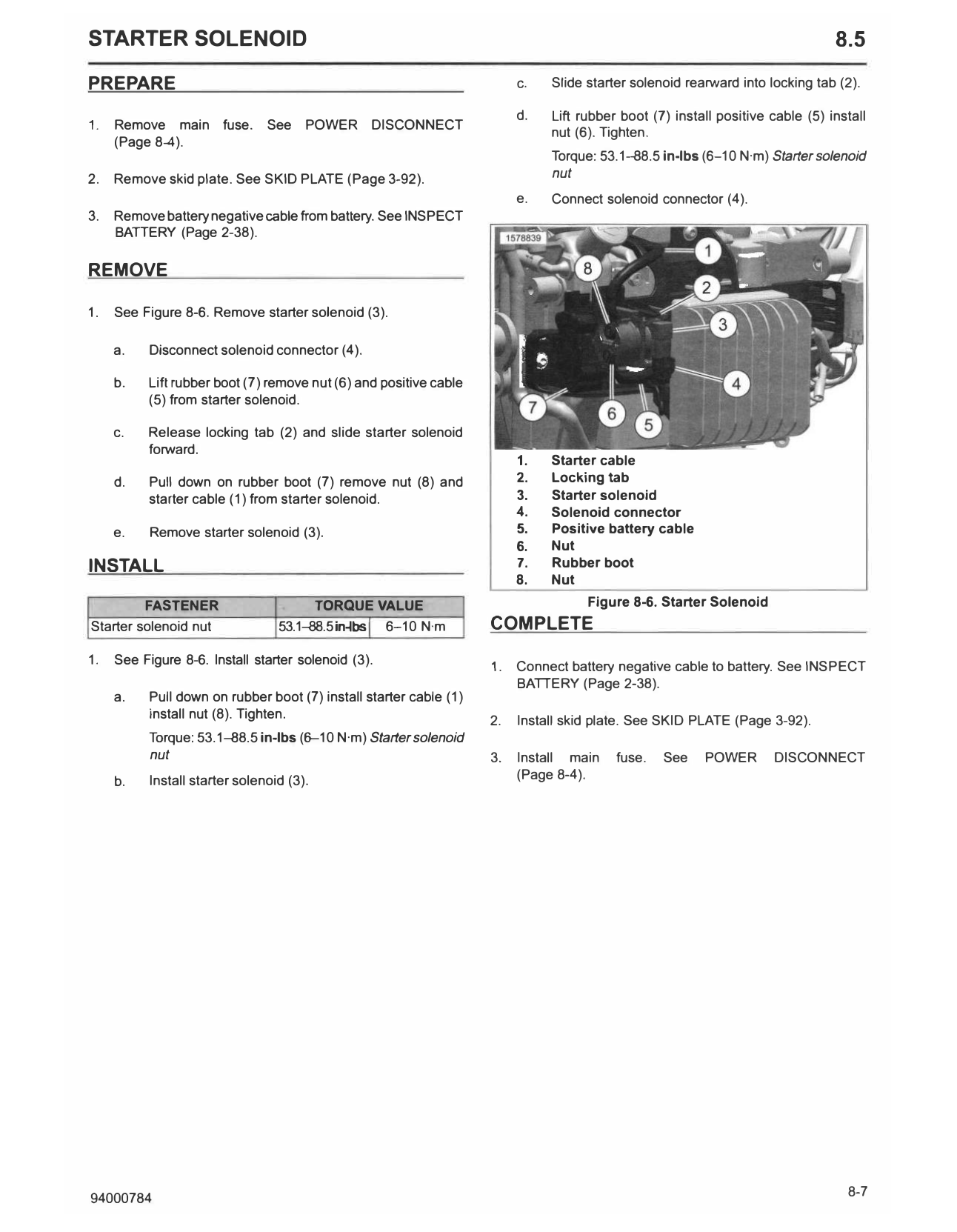

         FASTENER                       TORQUE VALUE                                Figure 8-6. Starter Solenoid
Starter solenoid nut              53.1-88.5in-lbs 6-10 N·m          COMPLETE
1.   See Figure 8-6. Install starter solenoid (3).                  1.   Connect battery negative cable to battery. See INSPECT
                                                                         BATTERY (Page 2-38).
     a.    Pull down on rubber boot (7) install starter cable (1)
           install nut (8). Tighten.                                2.   Install skid plate. See SKID PLATE (Page 3-92).
           Torque: 53.1-88.5 in-lbs (6-10 N·m) Starter solenoid
           nut                                                      3.   Install main    fuse.   See    POWER       DISCONNECT
     b.    Install starter solenoid (3).                                 (Page 8-4).
