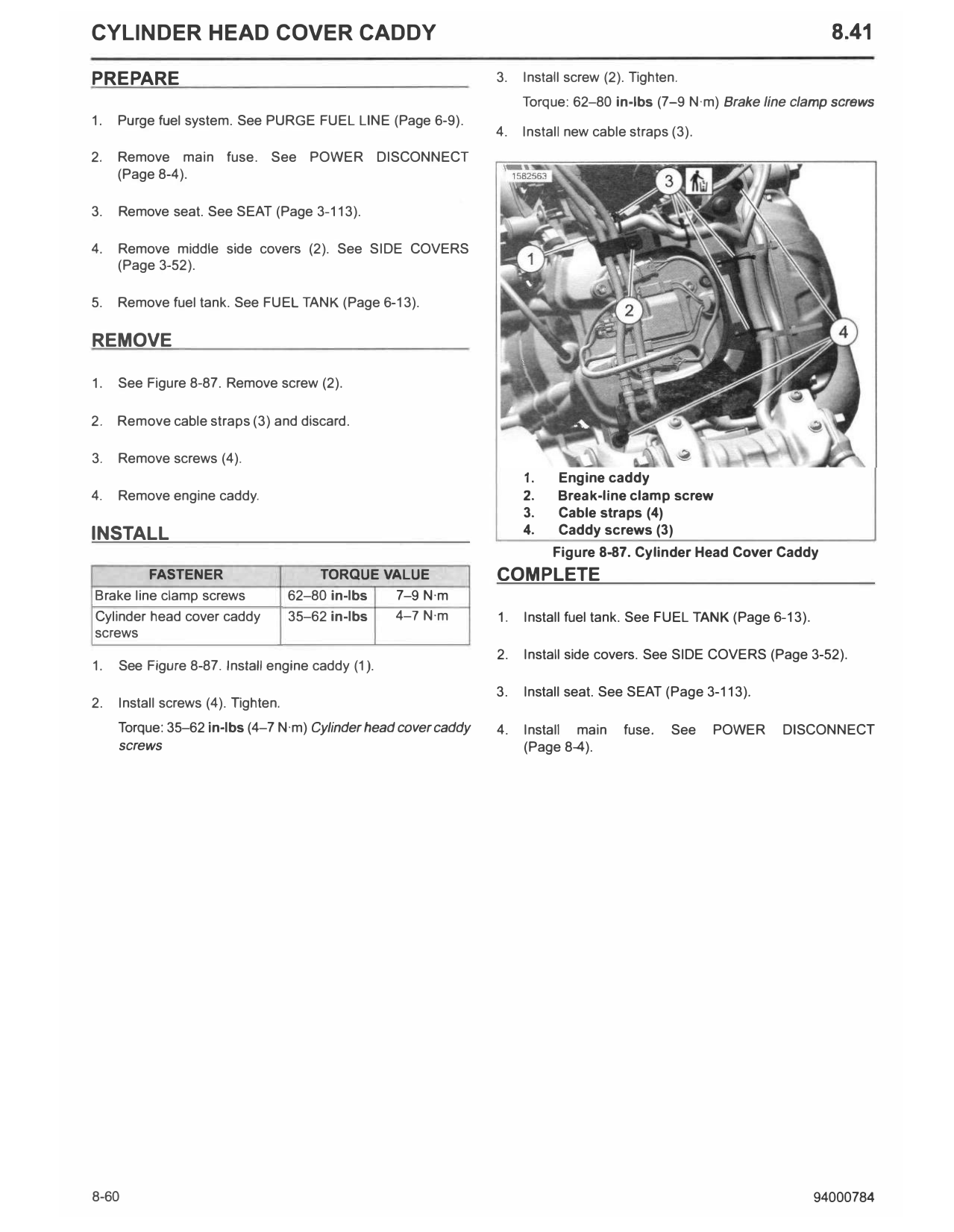

CYLINDER HEAD COVER CADDY 8.41
PREPARE 3. Install screw (2). Tighten.
Torque: 62-80 in-lbs (7-9 N·m) Brake line clamp screws
1. Purge fuel system. See PURGE FUEL LINE (Page 6-9).
4. Install new cable straps (3).
2. Remove main fuse. See POWER DISCONNECT
(Page 8-4).
3. Remove seat. See SEAT (Page 3-113).
4. Remove middle side covers (2). See SIDE COVERS
(Page 3-52).
5. Remove fuel tank. See FUEL TANK (Page 6-13).
REMOVE
1. See Figure 8-87. Remove screw (2).
2. Remove cable straps (3) and discard.
3. Remove screws (4).
1. Engine caddy
4. Remove engine caddy. 2. Break-line clamp screw
3. Cable straps (4)
INSTALL 4. Caddy screws (3)
Figure 8-87. Cylinder Head Cover Caddy
FASTENER TORQUE VALUE COMPLETE
Brake line clamp screws 62-80 in-lbs 7-9 N·m
Cylinder head cover caddy 35-62 in-lbs 4-7 N·m 1. Install fuel tank. See FUEL TANK (Page 6-13).
screws
2. Install side covers. See SIDE COVERS (Page 3-52).
1. See Figure 8-87. Install engine caddy (1 ).
3. Install seat. See SEAT (Page 3-113).
2. Install screws (4). Tighten.
Torque: 35-62 in-lbs (4-7 N·m) Cylinder head cover caddy 4. Install main fuse. See POWER DISCONNECT
screws (Page 8-4).
8-60 94000784
