8.40 Front Electrical Caddy

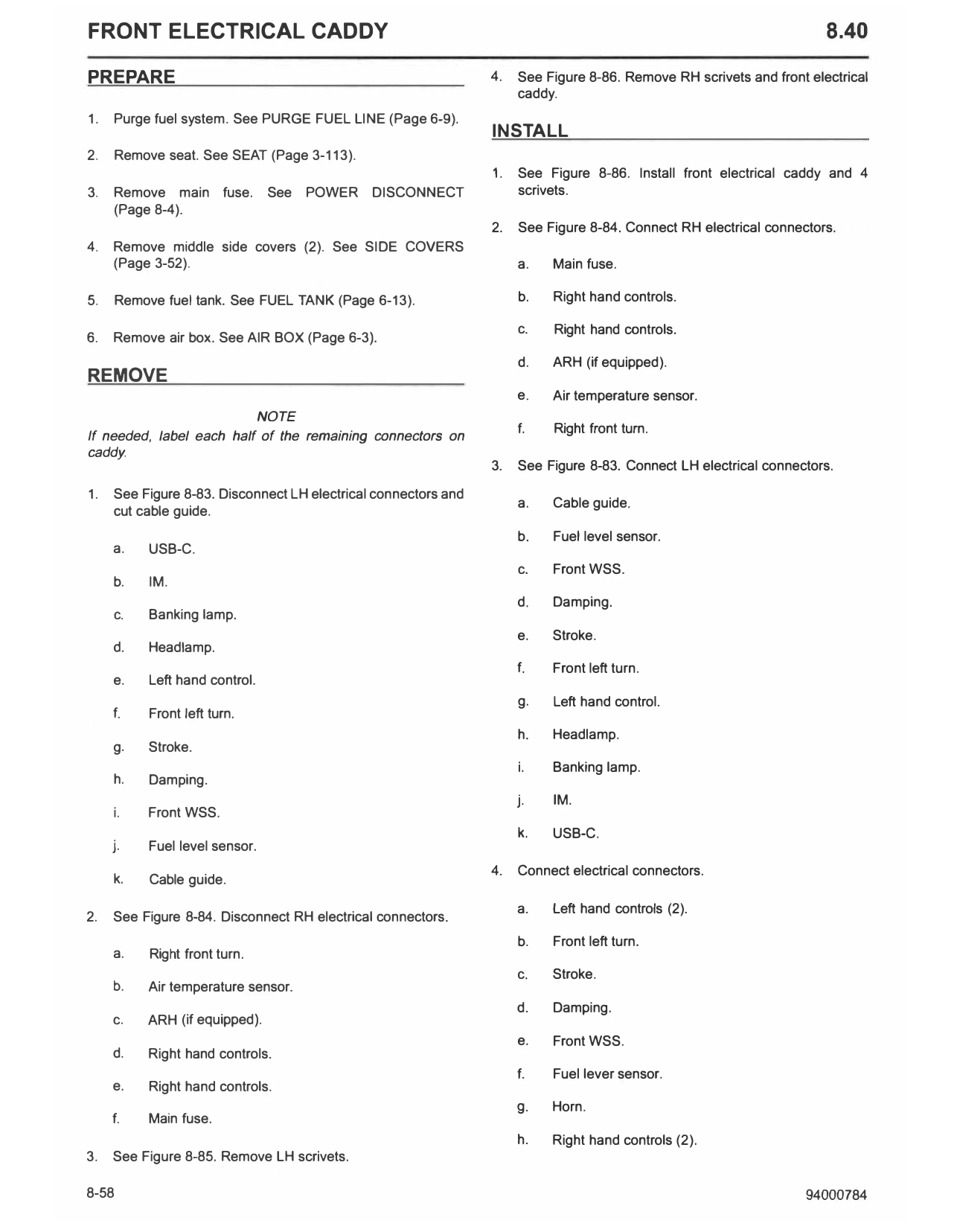

FRONT ELECTRICAL CADDY                                                                                                8.40

PREPARE                                                         4.   See Figure 8-86. Remove RH scrivets and front electrical
                                                                     caddy.
1.   Purge fuel system. See PURGE FUEL LINE (Page 6-9).
                                                                INSTALL
2.   Remove seat. See SEAT (Page 3-113).
                                                                1.   See Figure 8-86. Install front electrical caddy and 4
3.   Remove main fuse.         See POWER DISCO NNECT                 scrivets.
     (Page 8-4).
                                                                2.   See Figure 8-84. Connect RH electrical connectors.
4.   Remove middle side covers (2). See SIDE COVERS
     (Page 3-52).                                                    a.   Main fuse.

5.   Remove fuel tank. See FUEL TANK (Page 6-13).                    b.   Right hand controls.

                                                                     C.   Right hand controls.
6.   Remove air box. See AIR BOX (Page 6-3).
                                                                     d.   ARH (if equipped).
REMOVE
                                                                     e.   Air temperature sensor.
                          NOTE
                                                                     f.   Right front turn.
If needed, label each half of the remaining connectors on
caddy.
                                                                3.   See Figure 8-83. Connect LH electrical connectors.

1.   See Figure 8-83. Disconnect LH electrical connectors and
                                                                     a.   Cable guide.
     cut cable guide.
                                                                     b.   Fuel level sensor.
     a.   USB-C.
                                                                     C.   FrontWSS.
     b.   IM.
                                                                     d.   Damping.
     C.   Banking lamp.
                                                                     e.   Stroke.
     d.   Headlamp.
                                                                     f.   Front left turn.
     e.   Left hand control.
                                                                     g.   Left hand control.
     f.   Front left turn.
                                                                     h.   Headlamp.
     g.   Stroke.
                                                                     i.   Banking lamp.
     h.   Damping.
                                                                     j.   IM.
     i.   Front WSS.
                                                                     k.   USB-C.
     j.   Fuel level sensor.
                                                                4.   Connect electrical connectors.
     k.   Cable guide.

                                                                     a.   Left hand controls (2).
2.   See Figure 8-84. Disconnect RH electrical connectors.
                                                                     b.   Front left turn.
     a.   Right front turn.
                                                                     C.   Stroke.
     b.   Air temperature sensor.
                                                                     d.   Damping.
     C.   ARH (if equipped).
                                                                     e.   FrontWSS.
     d.   Right hand controls.
                                                                     f.   Fuel lever sensor.
     e.   Right hand controls.
                                                                     g.   Horn.
     f.   Main fuse.
                                                                     h.   Right hand controls (2).
3.   See Figure 8-85. Remove LH scrivets.

8-58                                                                                                               94000784

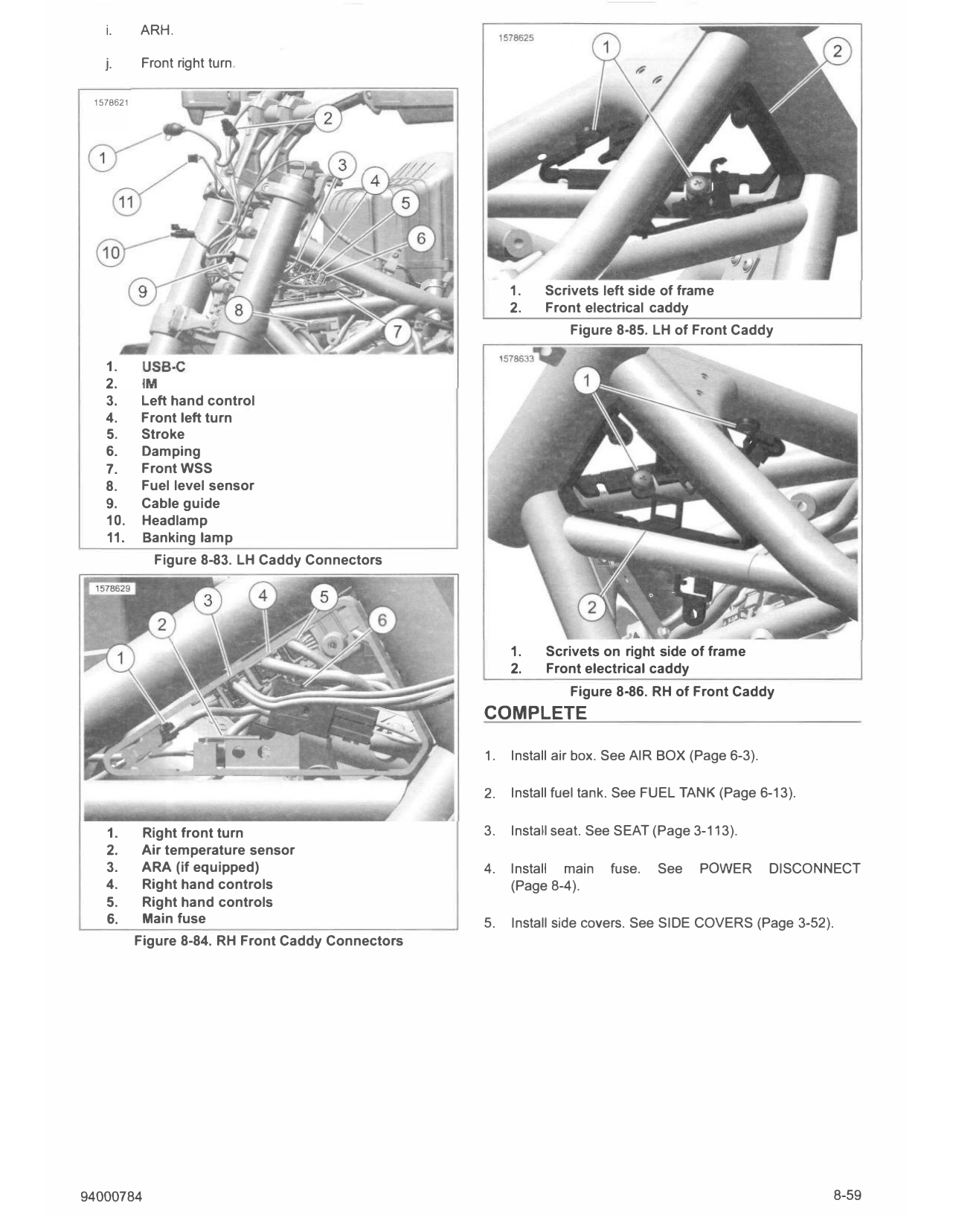

   i.      ARH.

   j.      Front right turn.

 1578621

                                                         1.   Scrivets left side of frame
                                                         2.   Front electrical caddy
                                                                  Figure 8-85. LH of Front Caddy

   1.
   2.
   3.      Left hand control
   4.      Front left turn
   5.      Stroke
   6.      Damping
   7.      Front WSS
   8.      Fuel level sensor
   9.      Cable guide
   10.     Headlamp
   11.     Banking lamp
             Figure 8-83. LH Caddy Connectors

                                                                            ..
                                                              Scrivets on right side of frame
                                                         1.
                                                         2.   Front electrical caddy
                                                                  Figure 8-86. RH of Front Caddy
                                                    COMPLETE

                                                    1.   Install air box. See AIR BOX (Page 6-3).

                                                    2.   Install fuel tank. See FUEL TANK (Page 6-13).

   1.       Right front turn                        3.   Install seat. See SEAT (Page 3-113).
   2.       Air temperature sensor
   3.       ARA (if equipped)                       4.   Install main    fuse.   See   POWER        DISCONNECT
   4.       Right hand controls                          (Page 8-4).
   5.       Right hand controls
   6.       Main fuse                               5.   Install side covers. See SIDE COVERS (Page 3-52).
           Figure 8-84. RH Front Caddy Connectors

94000784                                                                                                   8-59
