8.39 Jiffy Stand Sensor (Jss)

Fragment manuala — str. 439

📋 Tekst do skopiowania (OCR/wyszukiwanie)

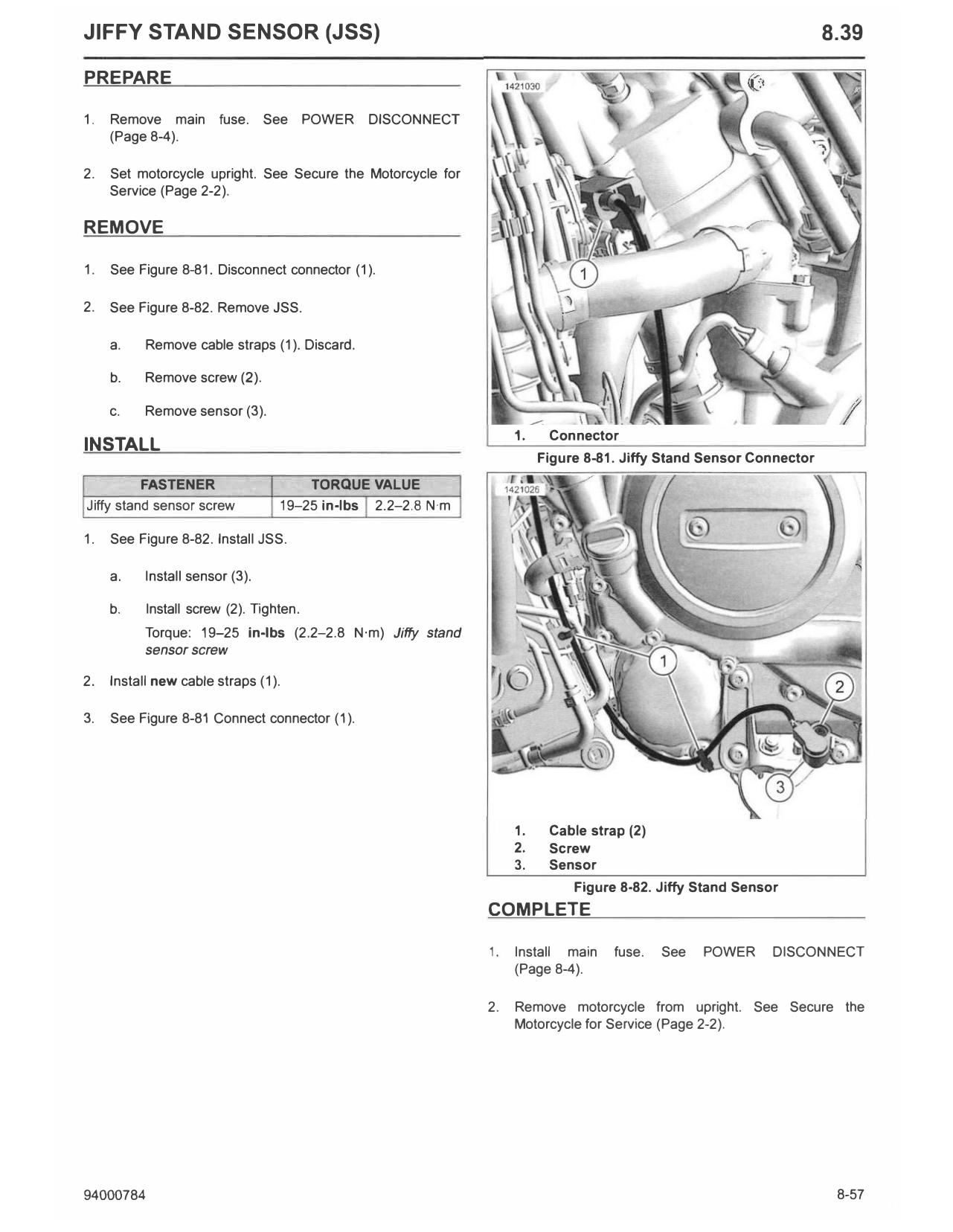

JIFFY STAND SENSOR (JSS) 8.39

PREPARE

1. Remove main fuse. See POWER DISCONNECT
(Page 8-4).

2. Set motorcycle upright. See Secure the Motorcycle for
Service (Page 2-2).

REMOVE

1. See Figure 8-81. Disconnect connector (1).

2. See Figure 8-82. Remove JSS.

a. Remove cable straps (1). Discard.

b. Remove screw (2).

c. Remove sensor (3).
1. Connector
INSTALL
Figure 8-81. Jiffy Stand Sensor Connector
FASTENER TORQUE VALUE
Jiffy stand sensor screw 19-25 in-lbs 2.2-2.8 N·m

1. See Figure 8-82. Install JSS.

a. Install sensor (3).

b. Install screw (2). Tighten.
Torque: 19-25 in-lbs (2.2-2.8 N·m) Jiffy stand
sensor screw

2. Install new cable straps (1).

3. See Figure 8-81 Connect connector (1 ).

1. Cable strap (2)
2. Screw
3. Sensor
Figure 8-82. Jiffy Stand Sensor
COMPLETE

1. Install main fuse. See POWER DISCONNECT
(Page 8-4).

2. Remove motorcycle from upright. See Secure the
Motorcycle for Service (Page 2-2).

94000784 8-57
