8.38 Inertial Measurement Unit (Imu)

INERTIAL MEASUREMENT UNIT (IMU)                                                                                  8.38
PREPARE                                                      2.     Remove IMU screws (20) and detach IMU.

1.   Remove right side steering head cover. See SIDE         INSTALL
     COVERS (Page 3-52).
                                                                     FASTENER                       TORQUE VALUE
2.   Remove main fuse.      See POWER DISCONNECT             IMU screws                         35-62 in-lbs 4-7 N·m
     (Page 8-4).
                                                             1.     See Figure 8-80. Install IMU.
3.   Remove seat. See SEAT (Page 3-113).
                                                             2.     Install IMU screws (20). Tighten.
4.   Remove seat base assembly. See TAIL SECTION                    Torque: 35-62 in-lbs (4-7 N·m) /MU screws
     (Page 3-114).
                                                             3.     Connect IMU connector.
REMOVE

1.   See Figure 8-80. Disconnect IMU connector.

     1.    Security antenna                                       14.   Security siren
     2.    Tail/stop lamp                                         15.   PAC
     3.    Battery tender                                         16.   Rear suspension (if equipped)
     4.    Heated gear (2)                                        17.   PAC relay block
     5.    DLC                                                    18.   Terminating resistor
     6.    Seat release cable                                     19.   Terminating resistor
     7.    Seat release cable guides                              20.   IMU screws
     8.    Fuse block                                             21.   Right rear turn signal
     9.    BCM (if equipped)                                      22.   License plate lamp
     10.   BCM power                                              23.   Under seat caddy
     11.   Screw (3)                                              24.   Left rear turn signal
     12.   BCM                                                    25.   BCM caddy locking tabs
     13.   Cable straps                                           26.   Ground fastener

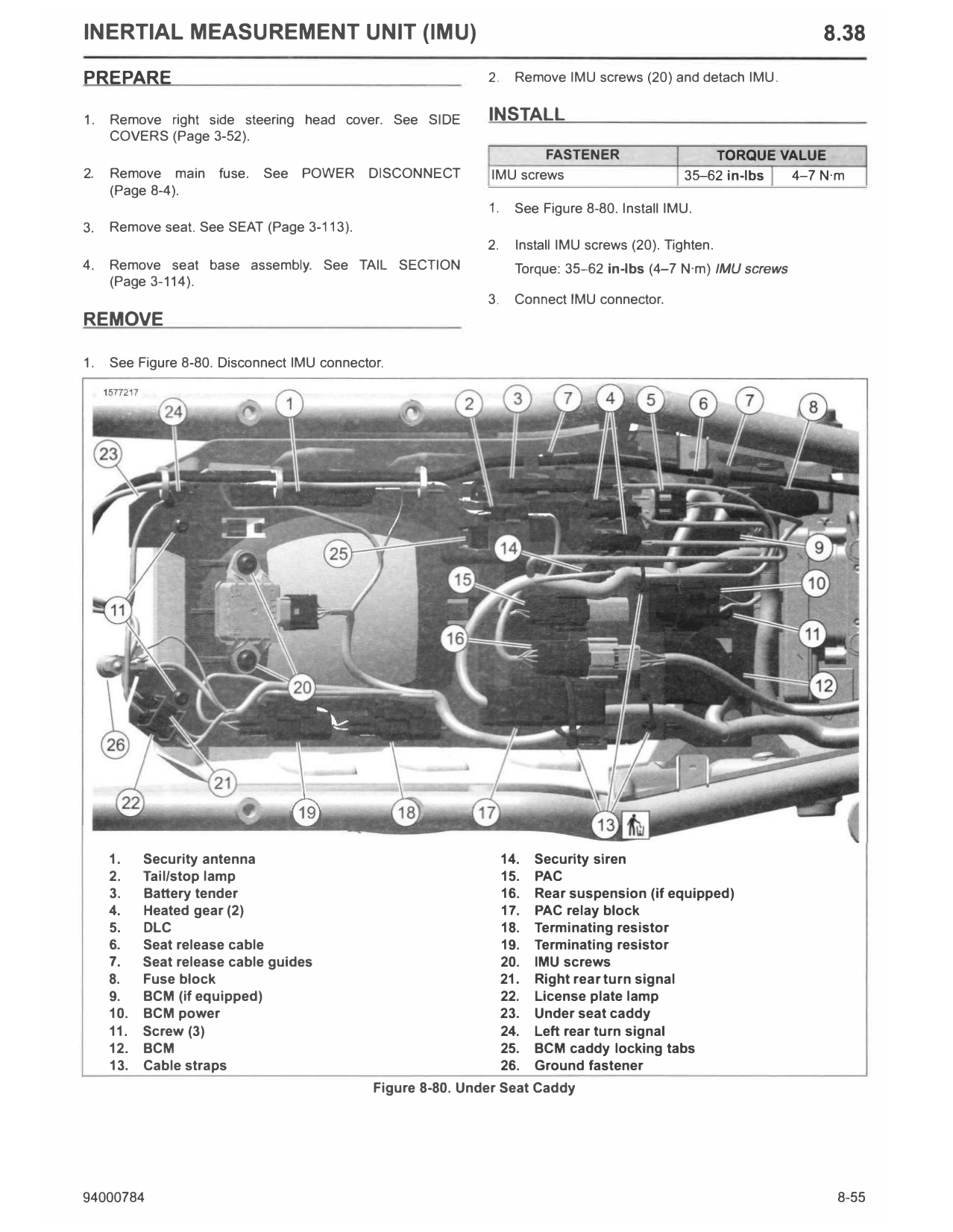

                                             Figure 8-80. Under Seat Caddy

94000784                                                                                                           8-55

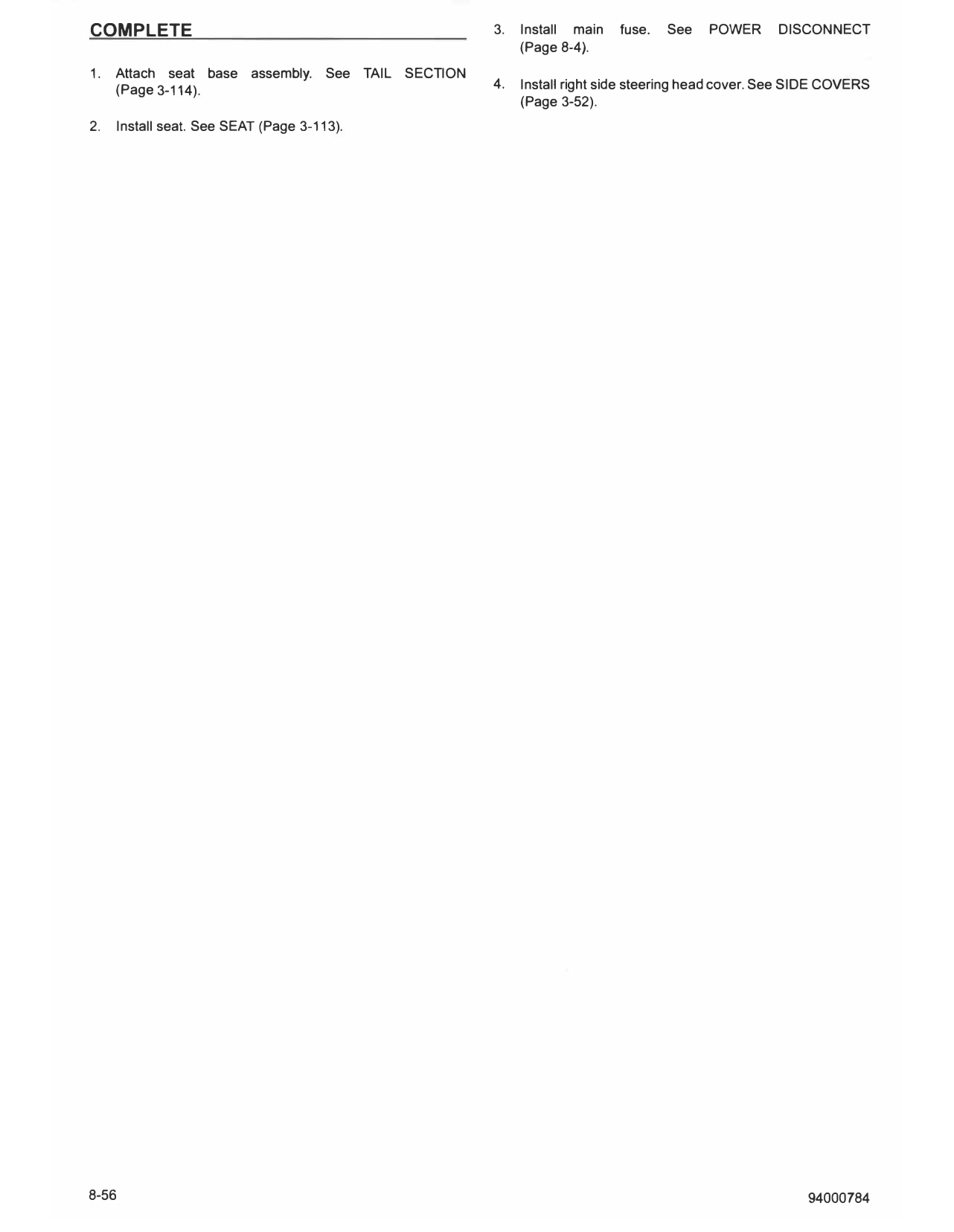

COMPLETE                                           3.   Install main   fuse.   See   POWER      DISCONNECT
                                                        (Page 8-4).
1.   Attach seat base assembly. See TAIL SECTION
     (Page 3-114).                                 4.   Install right side steering head cover. See SIDE COVERS
                                                        (Page 3-52).
2.   Install seat. See SEAT (Page 3-113).

8-56                                                                                                 94000784
