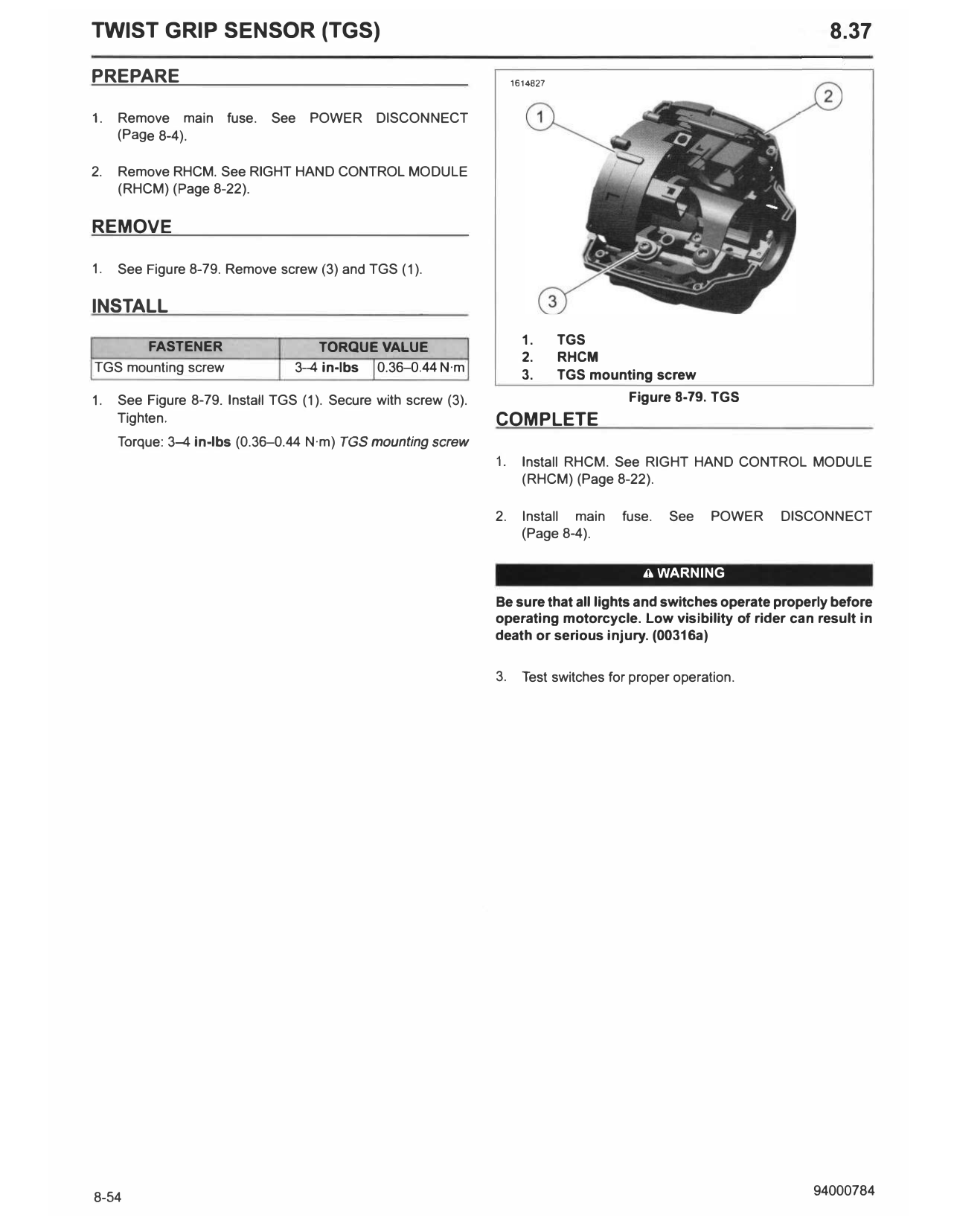

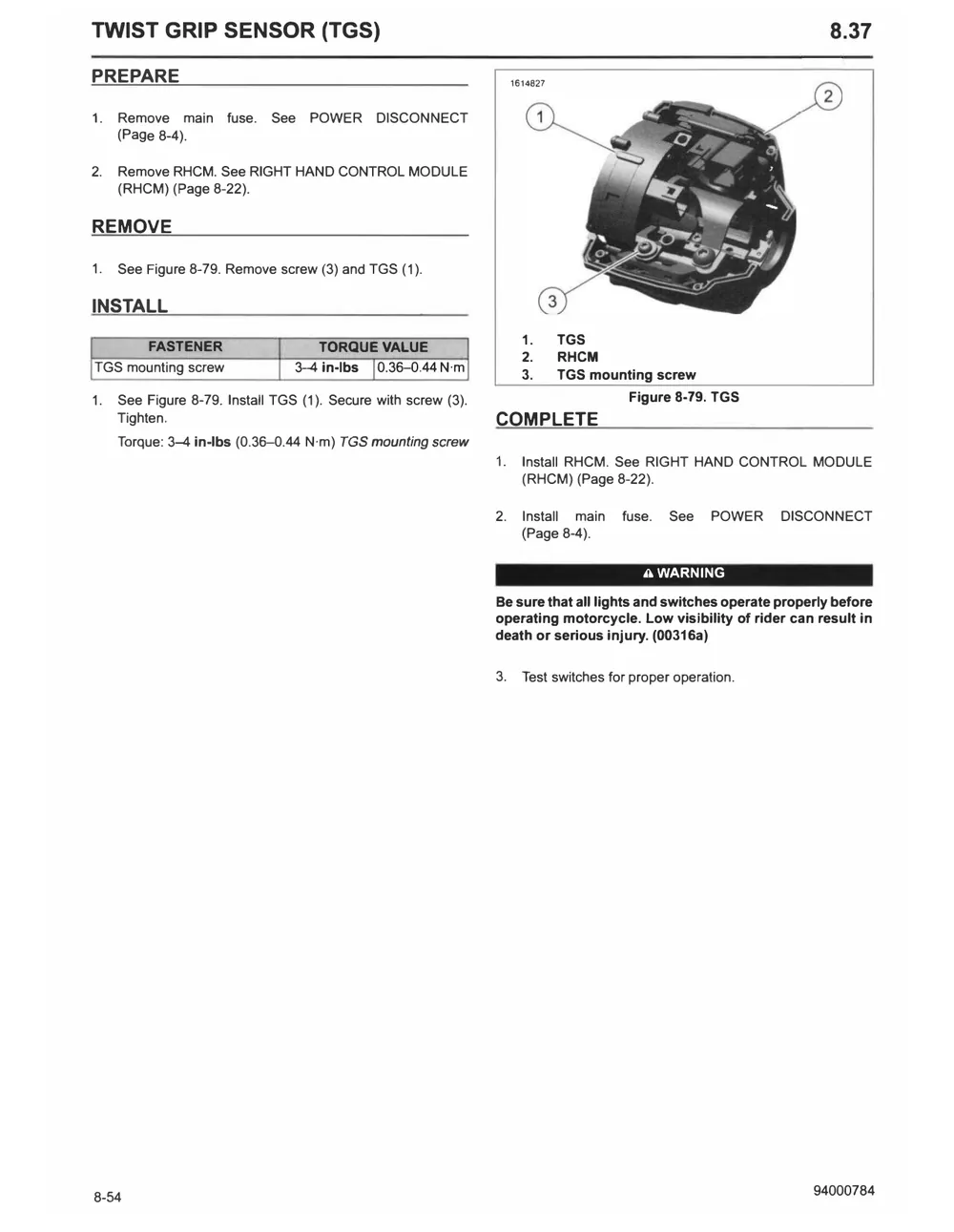

TWIST GRIP SENSOR (TGS) 8.37

PREPARE 1614827

1. Remove main fuse. See POWER DISCONNECT
(Page 8-4).

2. Remove RHCM. See RIGHT HAND CONTROL MODULE
(RHCM) (Page 8-22).

REMOVE

1. See Figure 8-79. Remove screw (3) and TGS (1).

INSTALL

FASTENER 1. TGS
TORQUE VALUE
2. RHCM
TGS mounting screw 3--4 in-lbs 0.36--0.44 N·m 3. TGS mounting screw
1. See Figure 8-79. Install TGS (1). Secure with screw (3). Figure 8-79. TGS
Tighten. COMPLETE
Torque: 3-4 in-lbs (0.36-0.44 N·m) TGS mounting screw
1. Install RHCM. See RIGHT HAND CONTROL MODULE
(RHCM) (Page 8-22).

2. Install main fuse. See POWER DISCONNECT
(Page 8-4).

A WARNING

Be sure that all lights and switches operate properly before
operating motorcycle. Low visibility of rider can result in
death or serious injury. (00316a)

3. Test switches for proper operation.

8-54 94000784
