8.35 Front Wheel Speed Sensor (Wss)

Fragment manuala — str. 433

📋 Tekst do skopiowania (OCR/wyszukiwanie)

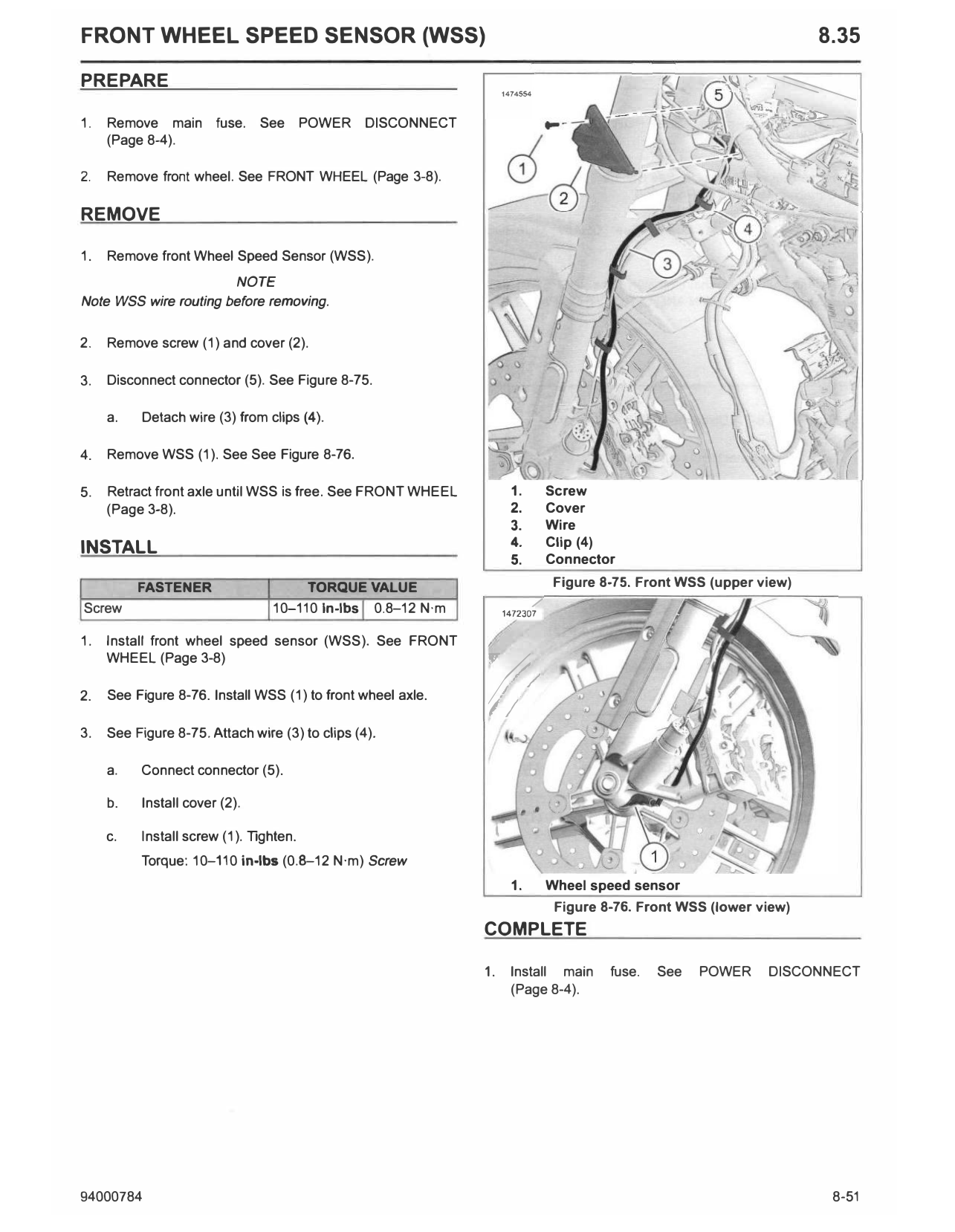

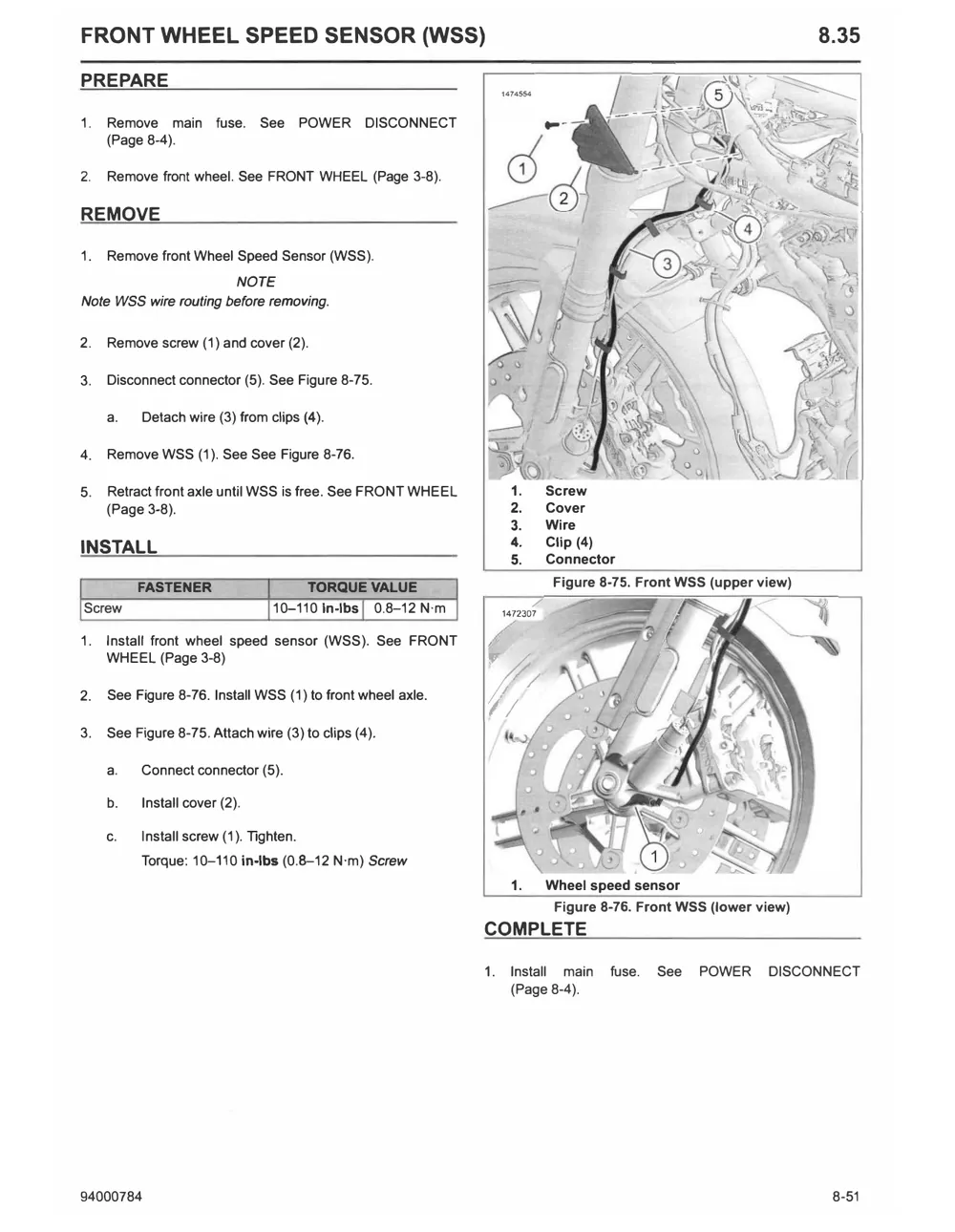

FRONT WHEEL SPEED SENSOR (WSS) 8.35
�
PREPARE I ,�-
1474554

-
1. Remove main fuse. See POWER DISCONNECT �
;..,,__"..,._
"'
.".. '.,.:��
(Page 8-4).
·r:-��
2. Remove front wheel. See FRONT WHEEL (Page 3-8).

>
REMOVE

1. Remove front Wheel Speed Sensor (WSS).
NOTE
Note WSS wire routing before removing.
.0
2. Remove screw (1) and cover (2).

3. Disconnect connector (5). See Figure 8-75.

a. Detach wire (3) from clips (4).

4. Remove WSS (1). See See Figure 8-76.

5. Retract front axle until WSS is free. See FRONT WHEEL 1. Screw
(Page 3-8). 2. Cover
3. Wire
INSTALL 4. Clip (4)
5. Connector

FASTENER TORQUE VALUE Figure 8-75. Front WSS (upper view)
./
Screw 10-110 In-lbs 0.8-12 N·m

t/
1472307

1. Install front wheel speed sensor (WSS). See FRONT
WHEEL (Page 3-8)

2. See Figure 8-76. Install WSS (1) to front wheel axle.

3. See Figure 8-75. Attach wire (3) to clips (4).

a. Connect connector (5).

b. Install cover (2).

c. Install screw (1). lighten.
Torque: 10-110 in-lbs (0.8-12 N·m) Screw
1. Wheel speed sensor
Figure 8-76. Front WSS (lower view)
COMPLETE

1. Install main fuse. See POWER DISCONNECT
(Page 8-4).

94000784 8-51
