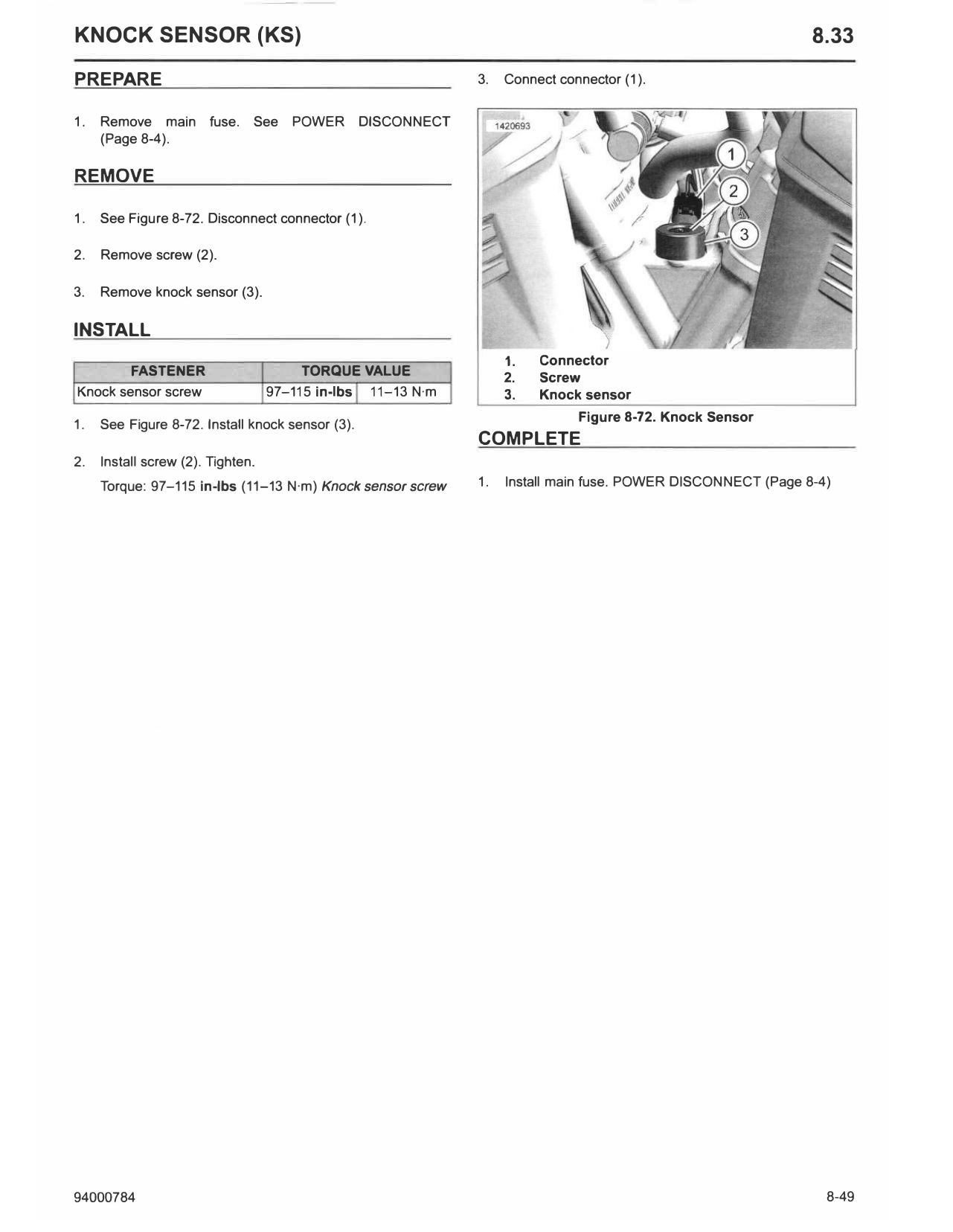

KNOCK SENSOR (KS)                                                                                              8.33
PREPARE                                                        3.   Connect connector (1).

1.   Remove main fuse.         See    POWER       DISCONNECT
     (Page 8-4).

REMOVE

1.   See Figure 8-72. Disconnect connector (1).

2.   Remove screw (2).

3.   Remove knock sensor (3).

INSTALL
                                                                    1.   Connector
        FASTENER                        TORQUE VALUE                2.   Screw
Knock sensor screw                 97-115 in-lbs 11-13 N·m          3.   Knock sensor
                                                                               Figure 8-72. Knock Sensor
1.   See Figure 8-72. Install knock sensor (3).
                                                               COMPLETE
2.   Install screw (2). Tighten.
     Torque: 97-115 in-lbs (11-13 N·m) Knock sensor screw      1.   Install main fuse. POWER DISCONNECT (Page 8-4)

94000784                                                                                                         8-49
