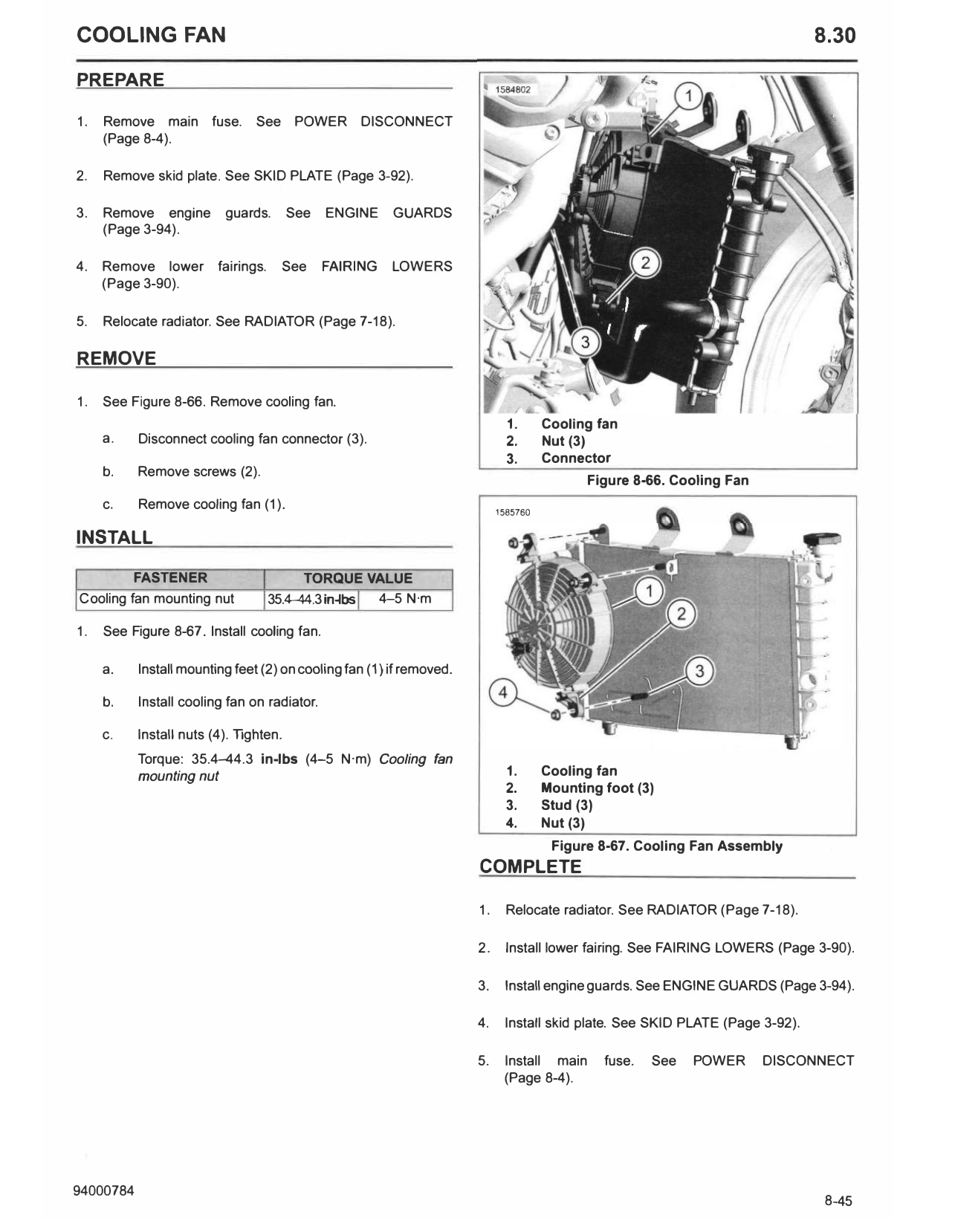

8.30 Cooling Fan

COOLING FAN                                                                                                                   8.30
PREPARE

1.   Remove main fuse. See               POWER DISCONNECT
     (Page 8-4).

2.   Remove skid plate. See SKID PLATE (Page 3-92).

3. Remove engine          guards.       See   ENGINE    GUARDS
   (Page 3-94).

4.   Remove lower        fairings.     See    FAIRING   LOWERS
     (Page 3-90).

5.   Relocate radiator. See RADIATOR (Page 7-18).

REMOVE

1. See Figure 8-66. Remove cooling fan.
                                                                             1.      Cooling fan
     a.    Disconnect cooling fan connector (3).                             2.      Nut (3)
                                                                             3.      Connector
     b.    Remove screws (2).
                                                                                           Figure 8-66. Cooling Fan
     c.    Remove cooling fan (1).                                         1585760

INSTALL
         FASTENER                           TORQUE VALUE
Cooling fan mounting nut             35.4---44.3in-lbs 4-5 N·m

1.   See Figure 8-67. Install cooling fan.

     a.    Install mounting feet (2) on cooling fan (1) if removed.

     b.    Install cooling fan on radiator.

     c.    Install nuts (4). Tighten.
           Torque: 35.4--44.3 in-lbs (4-5 N·m) Cooling fan
           mounting nut                                                      1.      Cooling fan
                                                                             2.      Mounting foot (3)
                                                                             3.      Stud (3)
                                                                             4.      Nut (3)
                                                                                      Figure 8-67. Cooling Fan Assembly
                                                                      COMPLETE

                                                                      1.     Relocate radiator. See RADIATOR (Page 7-18).

                                                                      2.     Install lower fairing. See FAIRING LOWERS (Page 3-90).

                                                                      3.    Install engine guards. See ENGINE GUARDS (Page 3-94).

                                                                      4.    Install skid plate. See SKID PLATE (Page 3-92).

                                                                      5.    Install main      fuse.   See   POWER     DISCONNECT
                                                                            (Page 8-4).
