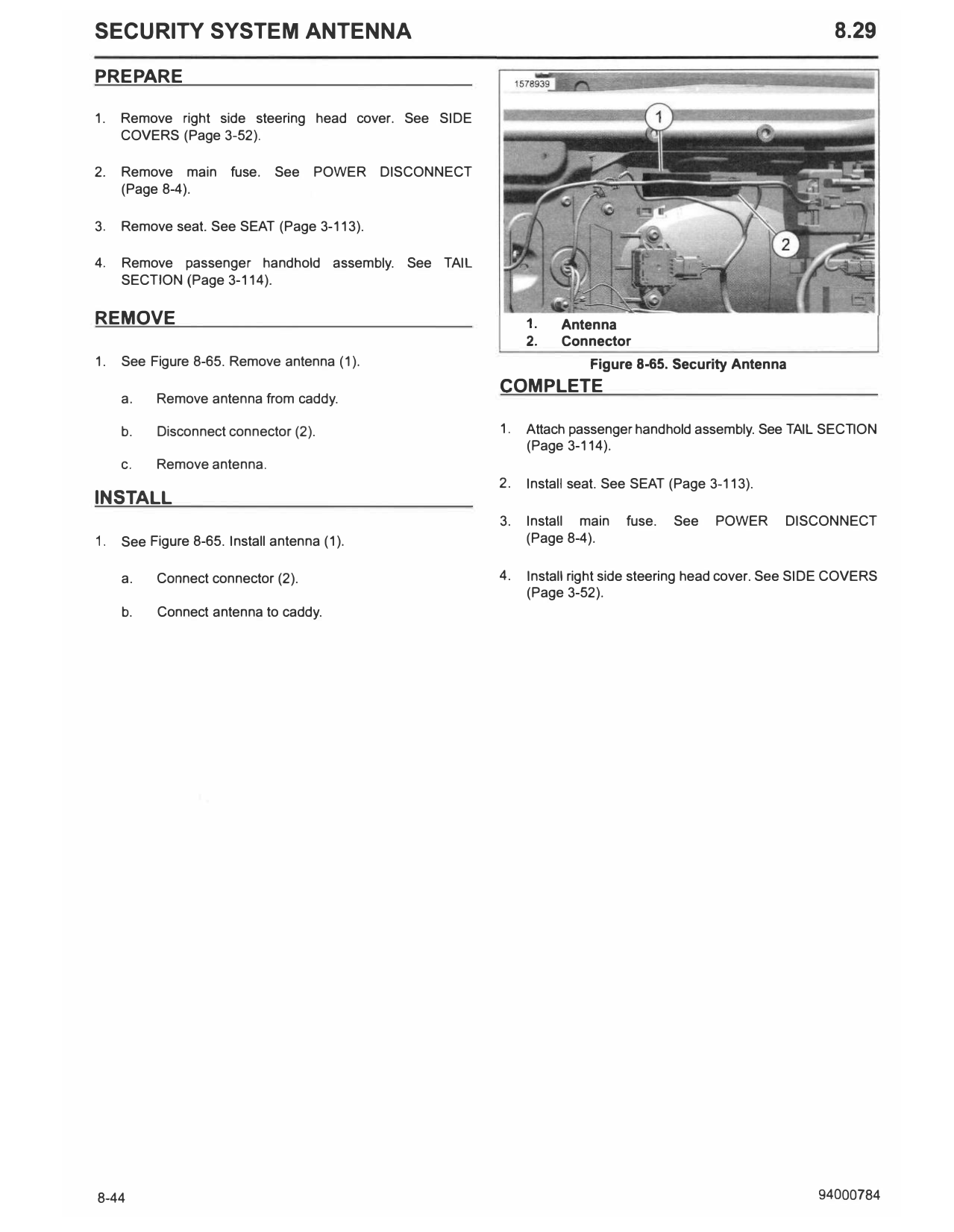

SECURITY SYSTEM ANTENNA                                                                                     8.29
PREPARE

1.   Remove right side steering head cover. See SIDE
     COVERS (Page 3-52).

2.   Remove main fuse.        See POWER DISCONNECT
     (Page 8-4).

3.   Remove seat. See SEAT (Page 3-113).

4.   Remove passenger handhold assembly. See TAIL
     SECTION (Page 3-114).

REMOVE                                                      1.   Antenna
                                                            2.   Connector
1.   See Figure 8-65. Remove antenna (1).                             Figure 8-65. Security Antenna
                                                       COMPLETE
     a.   Remove antenna from caddy.

     b.   Disconnect connector (2).                    1.   Attach passenger handhold assembly. See TAIL SECTION
                                                            (Page 3-114).
     c.   Remove antenna.
                                                       2.   Install seat. See SEAT (Page 3-113).
INSTALL
                                                       3.   Install main   fuse.   See    POWER     DISCONNECT
1.   See Figure 8-65. Install antenna (1).                  (Page 8-4).

     a.   Connect connector (2).                       4.   Install right side steering head cover. See SIDE COVERS
                                                            (Page 3-52).
     b.   Connect antenna to caddy.

8-44                                                                                                     94000784
