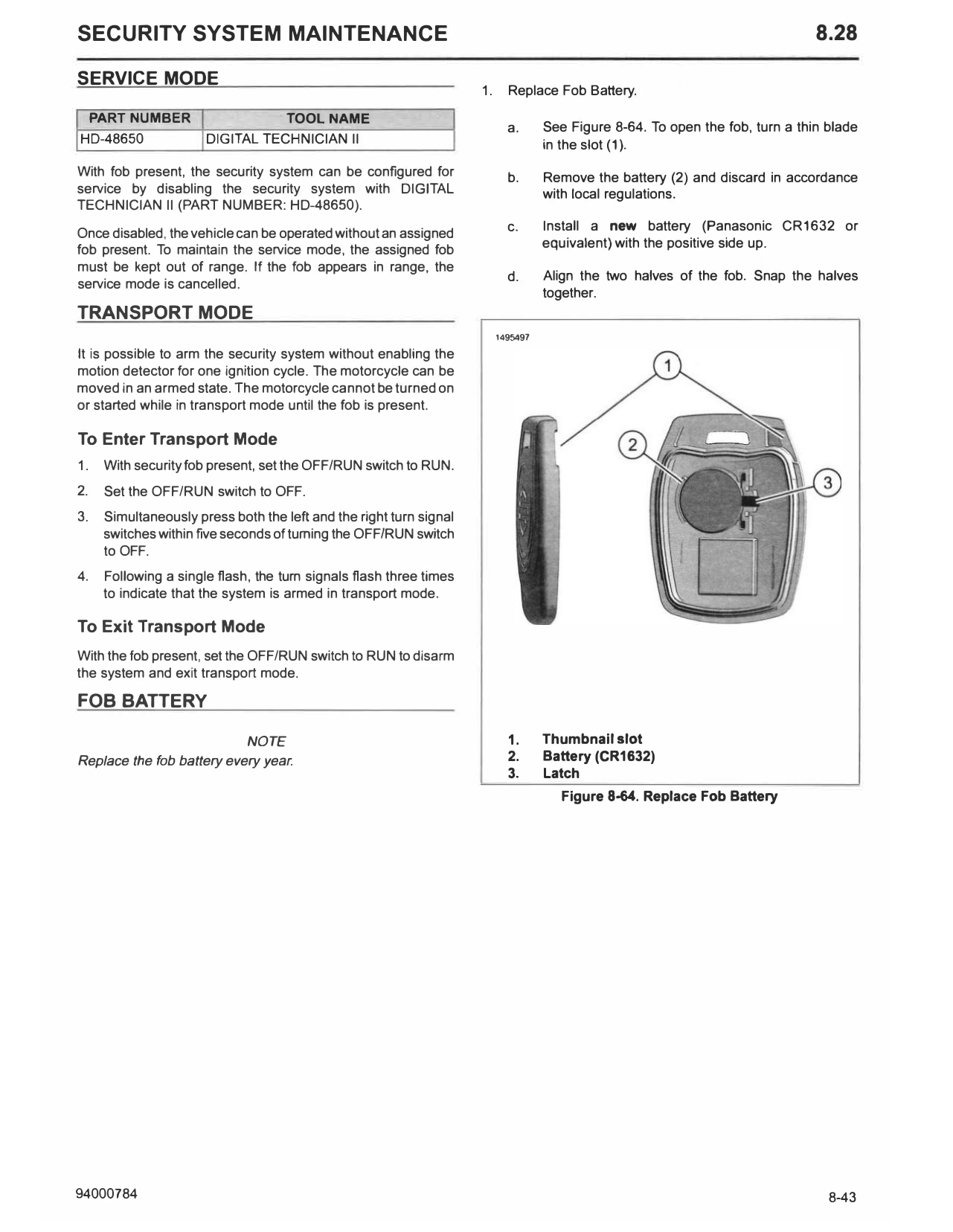

8.28 Security System Maintenance

SECURITY SYSTEM MAINTENANCE                                                                                                     8.28

SERVICE MODE
                                                                     1.     Replace Fob B attery.
     PART NUMBER                  TOOL NAME
                                                                            a.      See Figure 8-64. To open the fob, turn a thin blade
HD-48650               DIGITAL TECHNICIAN II                                        in the slot (1 }.
With fob present, the security system can be configured for                 b.      Remove the battery (2) and discard in accordance
service by disabling the security system with DIGITAL                               with local regulations.
TECHNICIAN II (PART NUMBER: HD-48650).
Once disabled, the vehicle can be operated without an assigned              c.      Install a new battery (Panasonic CR1632 or
fob present. To maintain the service mode, the assigned fob                         equivalent) with the positive side up.
must be kept out of range. If the fob appears in range, the
                                                                            d.      Align the two halves of the fob. Snap the halves
service mode is cancelled.
                                                                                    together.
TRANSPORT MODE
                                                                          1495497
It is possible to arm the security system without enabling the
motion detector for one ignition cycle. The motorcycle can be
moved in an armed state. The motorcycle cannot be turned on
or started while in transport mode until the fob is present.

To Enter Transport Mode
1.    With security fob present, set the OFF/RUN switch to RUN.
2.    Set the OFF/RUN switch to OFF.
3.    Simultaneously press both the left and the right turn signal
      switches within five seconds of turning the OFF/RUN switch
      to OFF.
4.    Following a single flash, the turn signals flash three times
      to indicate that the system is armed in transport mode.

To Exit Transport Mode
With the fob present, set the OFF/RUN switch to RUN to disarm
the system and exit transport mode.

FOB BATTERY

                           NOTE                                             1.      Thumbnail slot
Replace the fob battery every year.                                         2.      Battery (CR1632)
                                                                            3.      Latch
                                                                                       Figure 8-64. Replace Fob Battery

94000784                                                                                                                          8-43
