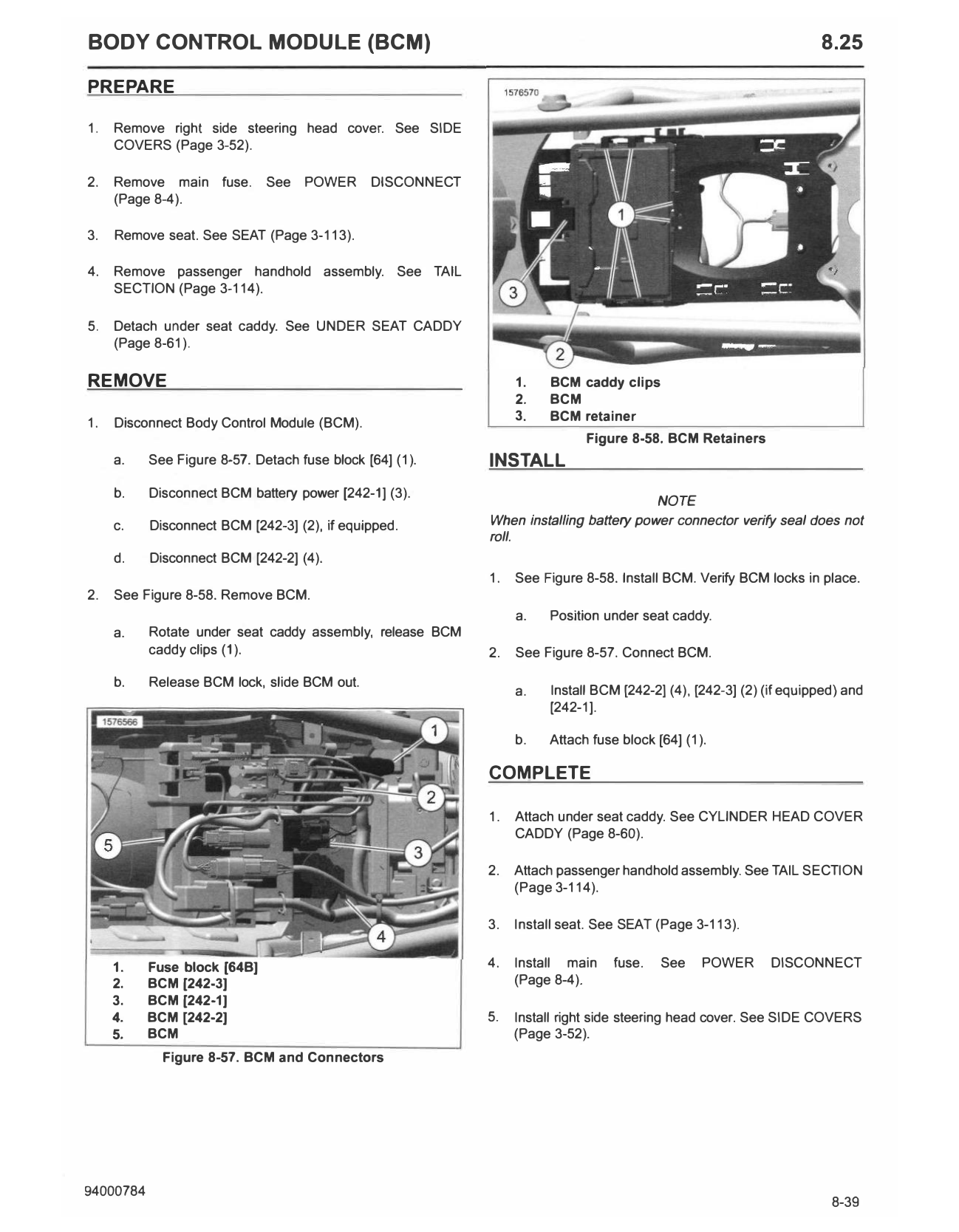

8.25 Body Control Module (Bcm)

BODY CONTROL MODULE (BCM)                                                                                           8.25

PREPARE

1.   Remove right side steering head cover. See SIDE
     COVERS (Page 3-52).

2.   Remove main fuse.        See POWER        DISCONNECT
     (Page 8-4).

3.   Remove seat. See SEAT (Page 3-113).

4.   Remove passenger handhold assembly. See TAIL
     SECTION (Page 3-114).

5.   Detach under seat caddy. See UNDER SEAT CADDY
     (Page 8-61).

REMOVE                                                           1.   BCM caddy clips
                                                                 2.   BCM
                                                                 3.   BCM retainer
1.   Disconnect Body Control Module (BCM).
                                                                            Figure 8-58. BCM Retainers
     a.    See Figure 8-57. Detach fuse block [64] (1).     INSTALL
     b.    Disconnect BCM battery power [242-1] (3).
                                                                                       NOTE
     c.    Disconnect BCM [242-3] (2), if equipped.         When installing battery power connector verify seal does not
                                                            roll.
     d.    Disconnect BCM [242-2] (4).
                                                            1.   See Figure 8-58. Install BCM. Verify BCM locks in place.
2.   See Figure 8-58. Remove BCM.
                                                                 a.   Position under seat caddy.
     a.    Rotate under seat caddy assembly, release BCM
           caddy clips (1).                                 2.   See Figure 8-57. Connect BCM.

     b.    Release BCM lock, slide BCM out.
                                                                 a.   Install BCM [242-2] (4), [242-3] (2) (if equipped} and
                                                                      [242-1].

                                                                 b.   Attach fuse block [64] (1).

                                                            COMPLETE

                                                            1.   Attach under seat caddy. See CYLINDER HEAD COVER
                                                                 CADDY (Page 8-60).

                                                            2.   Attach passenger handhold assembly. See TAIL SECTION
                                                                 (Page 3-114).

                                                            3.   Install seat. See SEAT (Page 3-113).

     1.    Fuse block [64B]                                 4.   Install main    fuse.   See    POWER       DISCONNECT
     2.    BCM [242-3]                                           (Page 8-4).
     3.    BCM [242-1]
     4.    BCM [242-2]                                      5.   Install right side steering head cover. See SIDE COVERS
     5.    BCM                                                   (Page 3-52).
             Figure 8-57. BCM and Connectors
