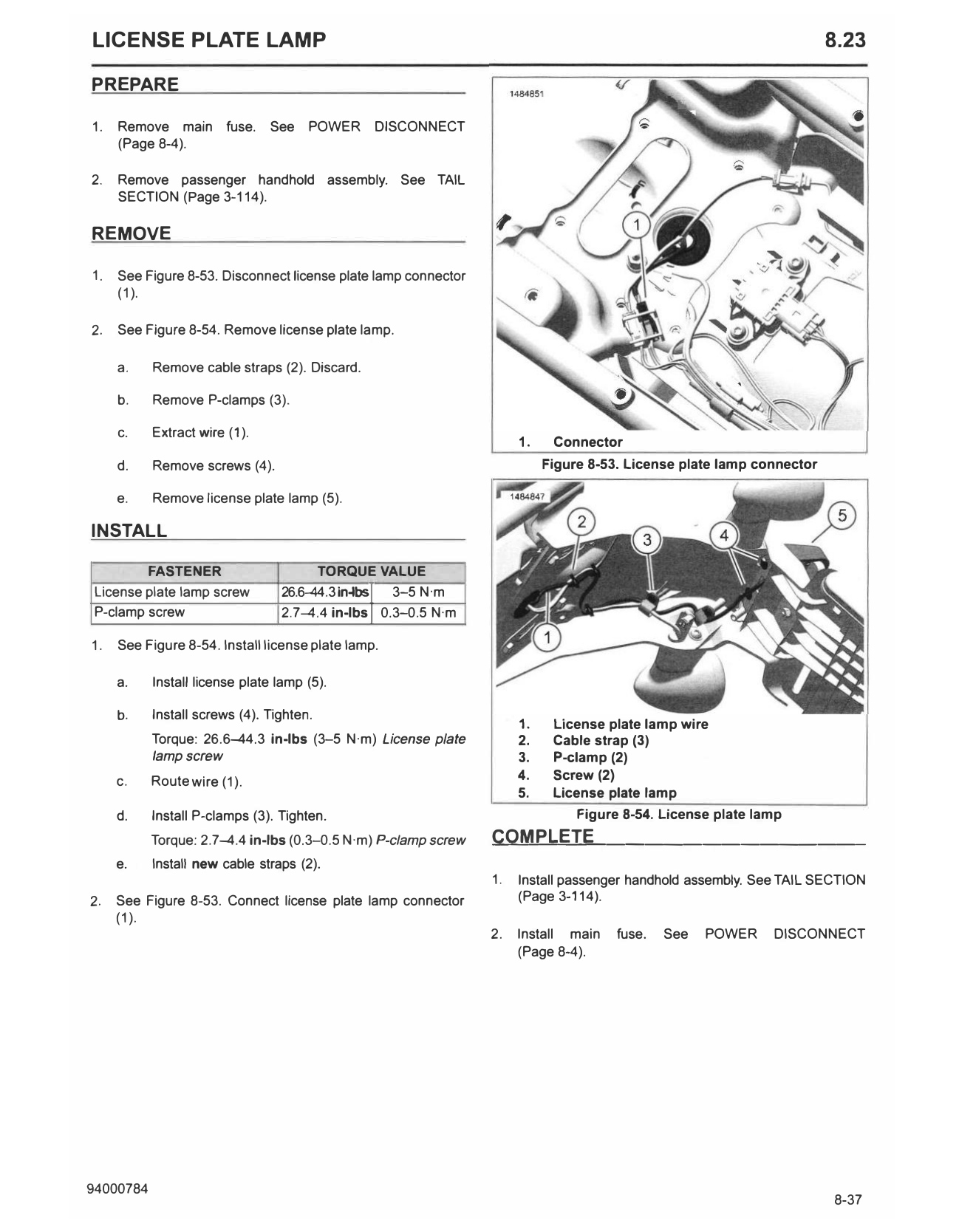

8.23 License Plate Lamp

LICENSE PLATE LAMP                                                                                                    8.23

P R EPARE

1.   Remove main fuse. See POWER                DISCONNECT
     (Page 8-4).

2.   Remove passenger handhold assembly. See TAIL
     SECTION (Page 3-114).

R EMOV E

1.   See Figure 8-53. D isconnect license plate lamp connector
     (1).

2.   See Figure 8-54. Remove license plate lamp.

     a.    Remove cable straps (2). D iscard.

     b.    Remove P-clamps (3).

     c.    Extract wire (1).
                                                                     1.    Connector
     d.    Remove screws (4).                                             Figure 8-53. License plate lamp connector

     e.    Remove license plate lamp (5).

INSTALL

        FASTENER                        TORQUE VALUE
License plate lamp screw         26.6--44.3 in-11>sl 3-5 N·m
P-clamp screw                    2.7-4.4 in-lbs I 0.3-0.5 N·m

1.   See Figure 8-54. Install license plate lamp.

     a.    Install license plate lamp (5).

     b.    Install screws (4). Tighten.
                                                                    1.     License plate lamp wire
           Torque: 26.6-44.3 in-lbs (3-5 N·m) License plate         2.     Cable strap (3)
           lamp screw                                               3.     P-clamp (2)
     c.    Route wire (1).                                          4.     Screw (2)
                                                                    5.     License plate lamp
     d.    Install P-clamps (3). Tighten.                                      Figure 8-54. License plate lamp
           Torque: 2.7-4.4 in-lbs (0.3-0.5 N·m) P-clamp screw    """
                                                                 C'"""'
                                                                     O :...,.:
                                                                          M   .a..aP
                                                                                   '--=
                                                                                     L= E'""'
                                                                                           T '"""E
                                                                                                 =---------------
     e.    Install new cable straps (2).
                                                                 1. Install passenger handhold assembly. See TAIL SECTION
2.   See Figure 8-53. Connect license plate lamp connector          (Page 3-114).
     (1).
                                                                 2. Install main     fuse.   See   POWER    DISCONNECT
                                                                    (Page 8-4).
