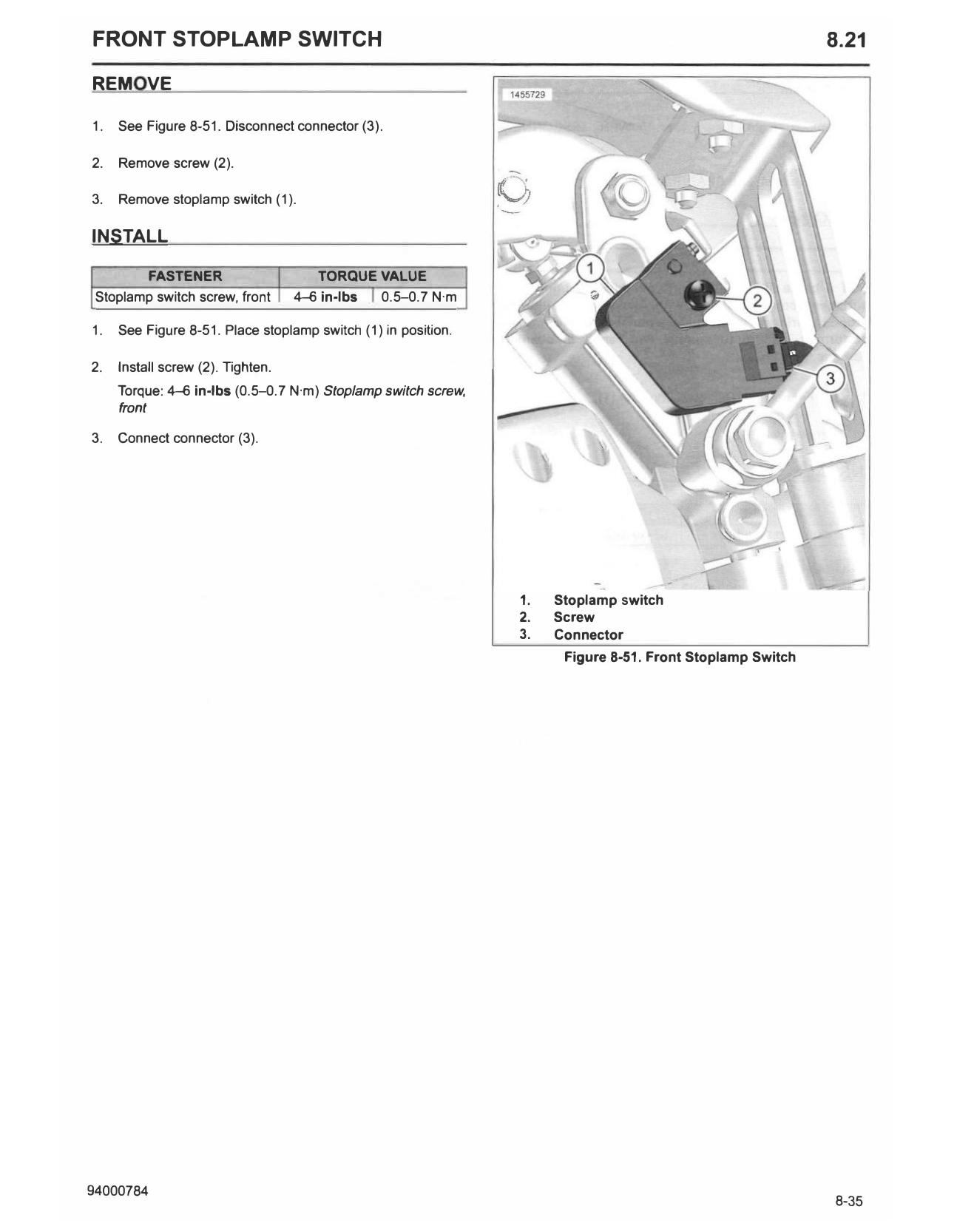

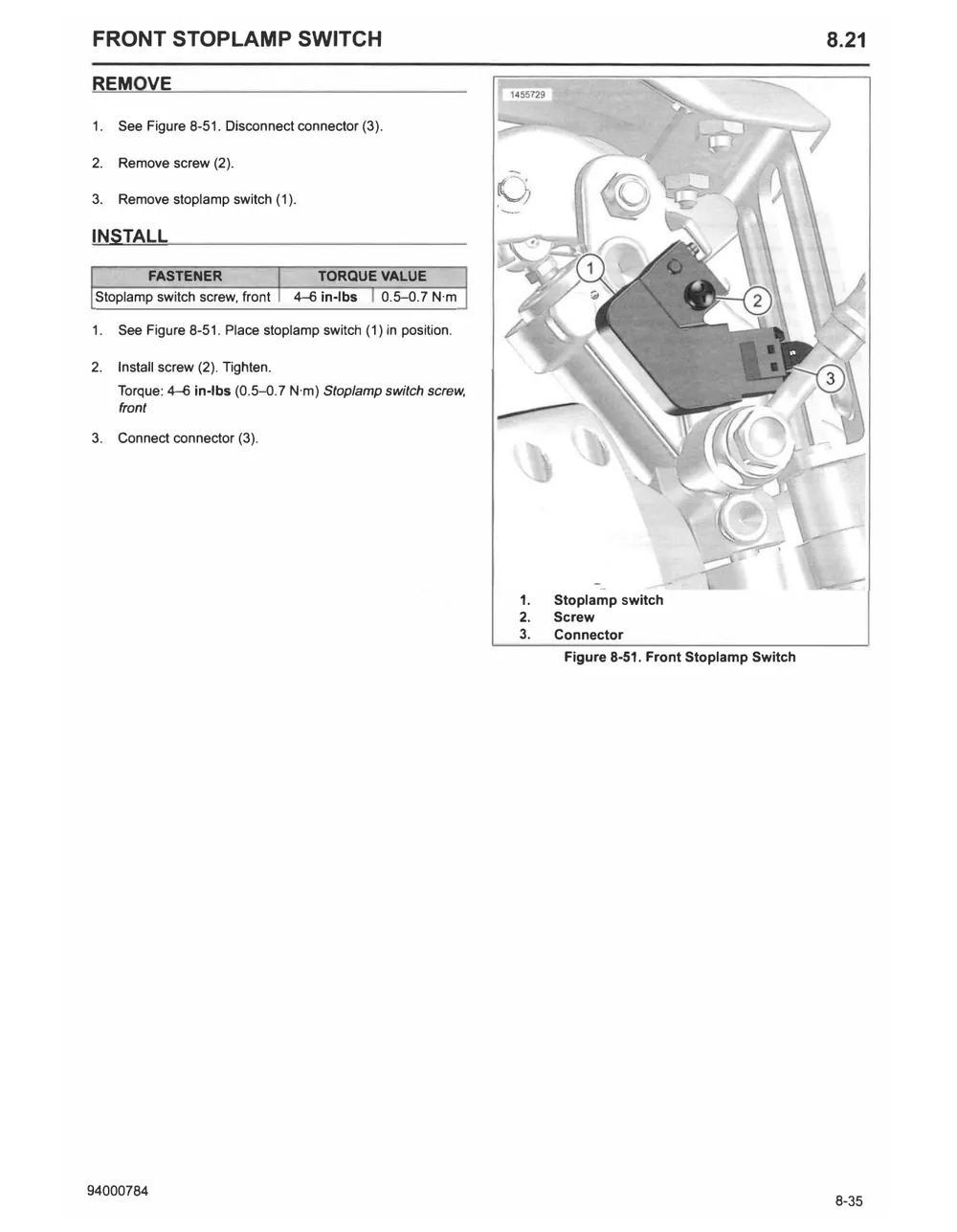

8.21 Front Stoplamp Switch

Fragment manuala — str. 417

📋 Tekst do skopiowania (OCR/wyszukiwanie)

FRONT STOPLAMP SWITCH                                                                                     8.21
REM VE

1.   See Figure 8-51. Disconnect connector (3).

2.   Remove screw (2).

3.   Remove stoplamp switch (1).

INSTALL

        FASTENER                      TORQUE VALUE
 Stoplamp switch screw, front      � in-lbs     0.5-0.7 N·m

1.   See Figure 8-51. Place stoplamp switch (1) in position.

2.   Install screw (2). Tighten.
     Torque:� in-lbs (0.5-0.7 N·m) Stop/amp switch screw,
     front

3.   Connect connector (3).

                                                               1.   Stoplamp switch
                                                               2.   Screw
                                                               3.   Connector
                                                                     Figure 8-51. Front Stoplamp Switch
