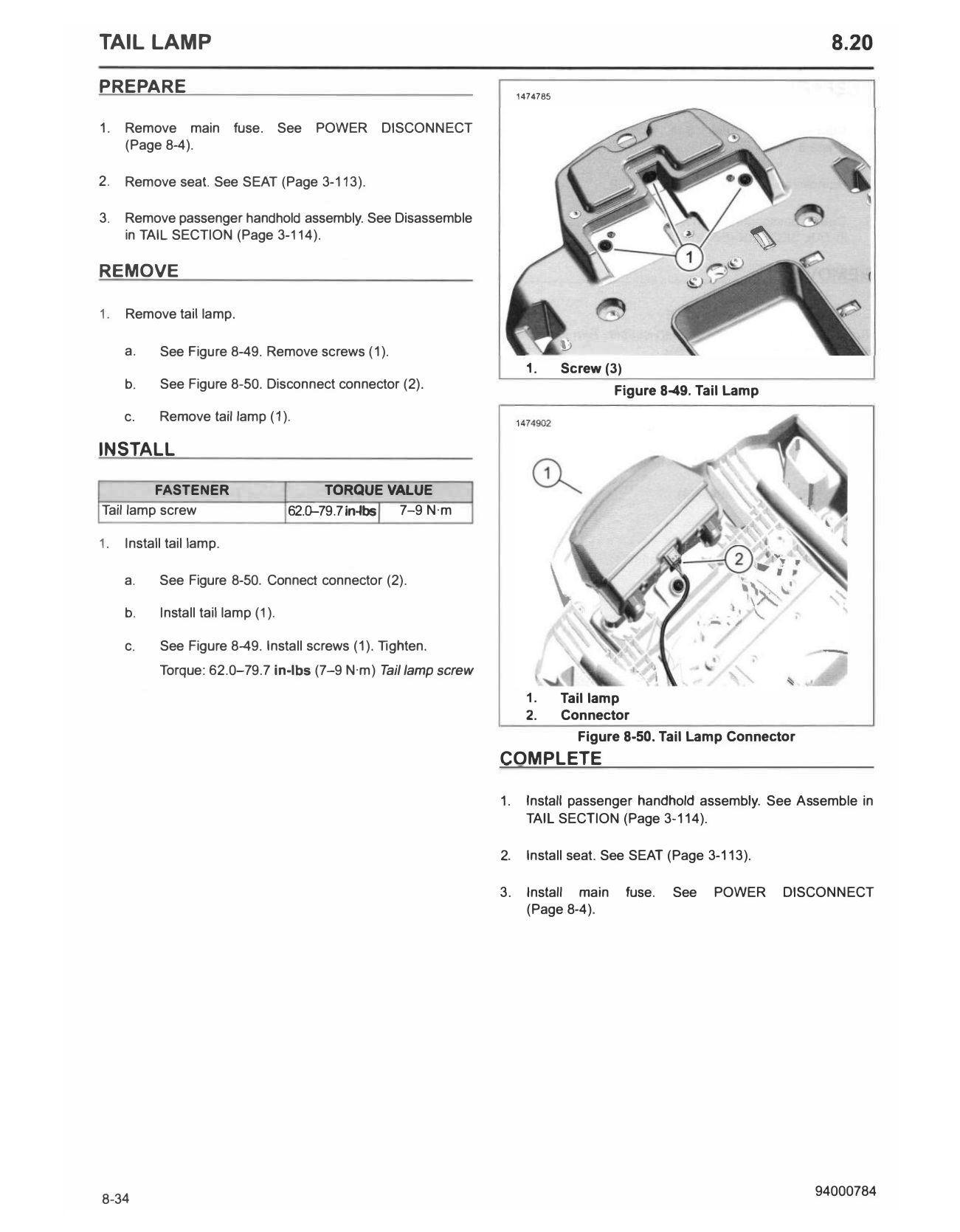

TAIL LAMP 8.20

PREPARE 1474785

1. Remove main fuse. See POWER DISCONNECT
(Page 8-4).

2. Remove seat. See SEAT (Page 3-113).

3. Remove passenger handhold assembly. See Disassemble
in TAIL SECTION (Page 3-114).

REMOVE

1. Remove tail lamp.

a. See Figure 8-49. Remove screws (1). l:)

1. Screw (3)
b. See Figure 8-50. Disconnect connector (2). Figure 8-49. Tail Lamp
c. Remove tail lamp (1 ).

INSTALL

FASTENER TORQUE VALUE
Tail lamp screw 7-9 N·m
62.0-79.7in-U>S

1. Install tail lamp.

a. See Figure 8-50. Connect connector (2).

b. Install tail lamp (1).

c. See Figure 8-49. Install screws (1). Tighten.
Torque: 6 2.0-79.7 in-lbs (7-9 N·m) Tail lamp screw
1. Tail lamp
2. Connector
Figure 8-50. Tail Lamp Connector
COMPLETE

1. Install passenger handhold assembly. See A ssemble in
TAIL SECTION (Page 3-114).

2. Install seat. See SEAT (Page 3-113).

3. Install main fuse. See POWER DISCONNECT
(Page 8-4).
