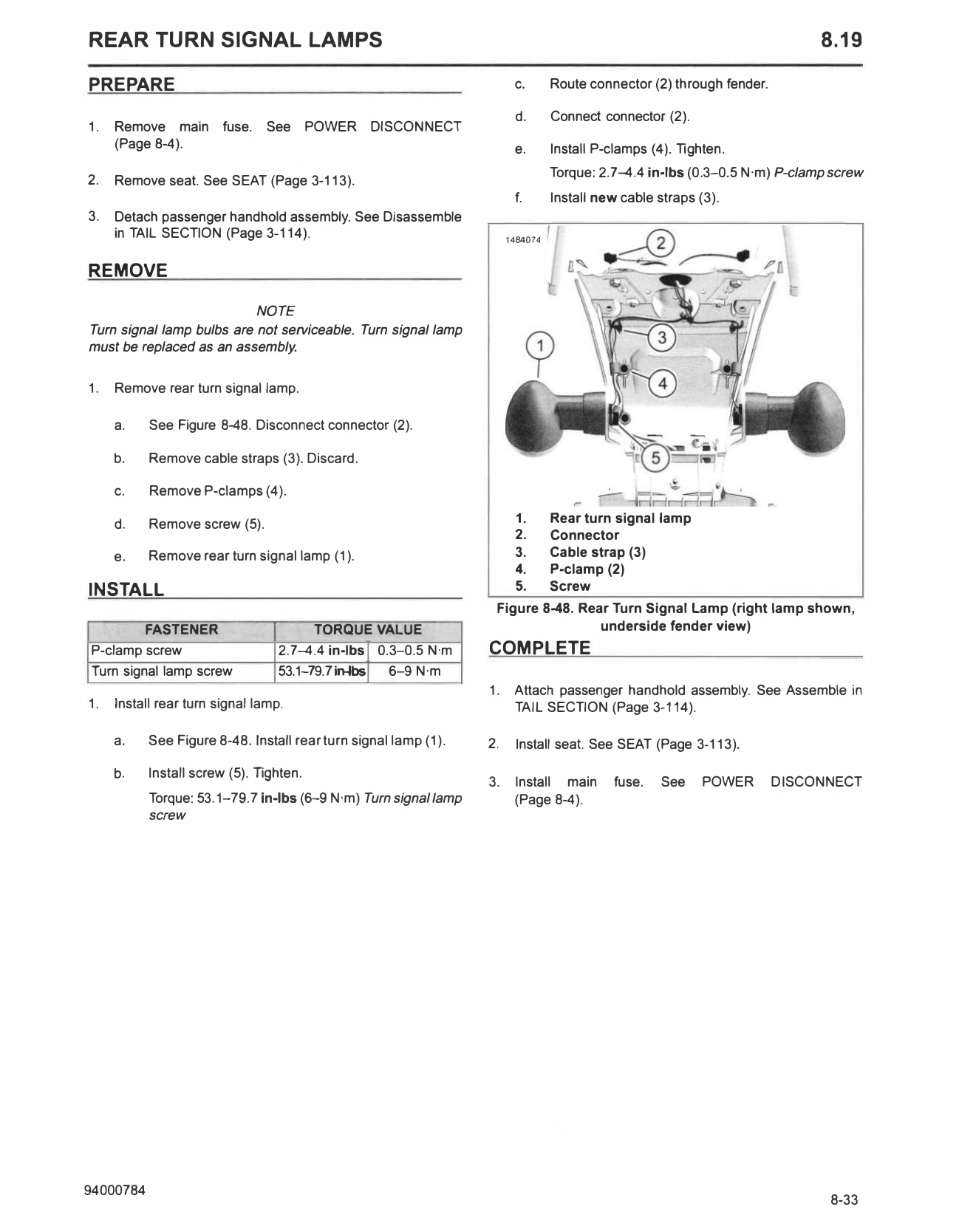

8.19 Rear Turn Signal Lamps

REAR TURN SIGNAL LAMPS                                                                                                       8.19

PREPARE                                                                 c.       Route connector (2) through fender.

                                                                        d.           Connect connector (2).
1.   Remove main fuse. See POWER                 DISCONNECT
     (Page 8-4).                                                        e.       Install P-clamps (4). Tighten.
                                                                                 Torque: 2.7--4.4 in-lbs (0.3-0.5 N·m) P-clamp screw
2.   Remove seat. See SEAT (Page 3-113).
                                                                        f.       Install new cable straps (3).
3.   Detach passenger handhold assembly. See Disassemble
     in TAIL SECTION (Page 3-114).                                     1484074   I
REMOVE

                           NOTE
Turn signal lamp bulbs are not serviceable. Turn signal lamp
must be replaced as an assembly.

1.   Remove rear turn signal lamp.

     a.    See Figure 8-48. Disconnect connector (2).

                                                                                            -
     b.    Remove cable straps (3). Discard.

     c.    Remove P-clamps (4).                                                               '

     d.    Remove screw (5).                                            1.       Rear turn signal lamp
                                                                        2.       Connector
     e.    Remove rear turn signal lamp (1).                            3.       Cable strap (3)
                                                                        4.       P-clamp (2)
INSTALL                                                                 5.       Screw
                                                                   Figure 8-48. Rear Turn Signal Lamp (right lamp shown,
         FASTENER                       TORQUE VALUE                               underside fender view)
P-clamp screw                     2.7--4.4 in-lbs I 0.3-0.5 N·m   COMPLETE
Turn signal lamp screw            53.1-19.7itHt>sl 6-9 N·m
                                                                  1.    Attach passenger handhold assembly. See Assemble in
1.   Install rear turn signal lamp.                                     TAIL SECTION (Page 3-114).

     a.    See Figure 8-48. Install rear turn signal lamp (1).    2.    Install seat. See SEAT (Page 3-113).

     b.    Install screw (5). Tighten.
                                                                  3. Install main                 fuse.   See   POWER   DISCONNECT
           Torque: 53.1-79.7 In-lbs (6-9 N·m) Turn signal lamp       (Page 8-4).
           screw
