8.18 Front Turn Signal Lamps

FRONT TURN SIGNAL LAMPS                                                                                               8.18
PREPARE                                                                c.   Route wire (3) through channel on top surface of
                                                                            inner fairing panel (2).
1.   Remove main fuse. See POWER                     DISCONNECT
                                                                       d.   Install outer fairing panel (1 ).
     (Page 8-4).
                                                                       e.   Install screws (4). Tighten.
2.   Remove lower fairing. See FAIRING LOWERS (Page 3-90)
                                                                            Torque: 70.8-88.5 in-lbs (8-10 N·m) Outer fairing
                                                                            panel screw
REMOVE

1.   Remove front turn signal lamp. See Figure 8-47.

     a.    Remove screws (4).

     b.    Remove outer fairing panel (1).

     c.   Remove screw (6).

     d.    Remove wire (3).

     e.    Remove front turn signal lamp (5).

INSTALL

         FASTENER                        TORQUE VALUE                  1.   Outer fairing
Outer fairing panel screw                        I
                                  10.i>-88.s in�bs 8-10 N·m
                                                                       2.   Inner fairing

Turn signal assembly screw                       I
                                  10.i>-88.s in�bs 8-10 N·m
                                                                       3.
                                                                       4.
                                                                            Wire
                                                                            Screw (3)
                                                                       5.   Front turn signal lamp
1.   Install front turn signal lamp. See Figure 8-47.                  6.   Screw

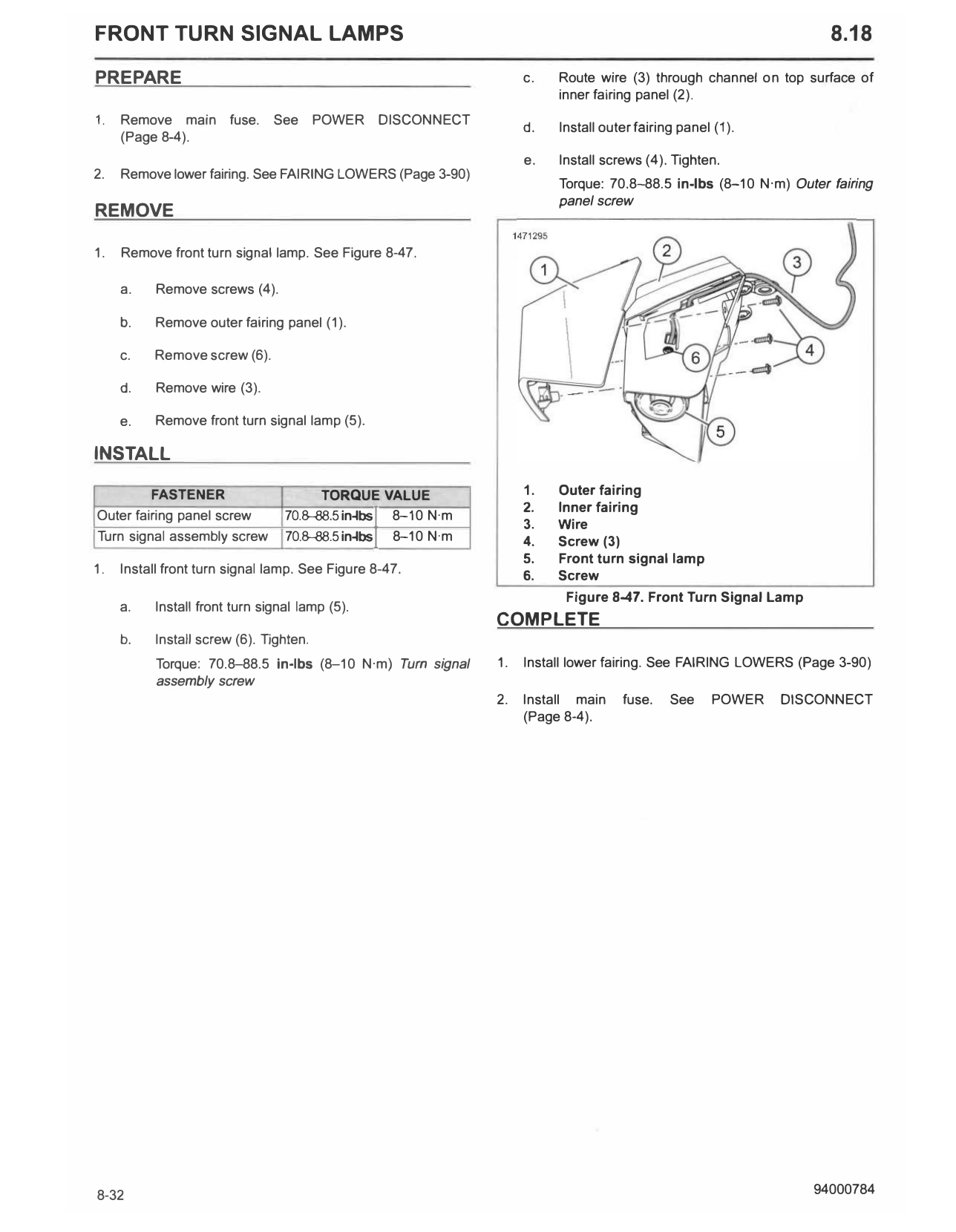

                                                                             Figure 8-47. Front Turn Signal Lamp
     a.    Install front turn signal lamp (5).
                                                                  COMPLETE
     b.    Install screw (6). Tighten.
           Torque: 70.8-88.5 in-lbs (8-10 N·m} Turn signal        1.   Install lower fairing. See FAIRING LOWERS (Page 3-90)
           assembly screw
                                                                  2.   Install main     fuse.   See     POWER   DISCONNECT
                                                                       (Page 8-4).

8-32                                                                                                               94000784
