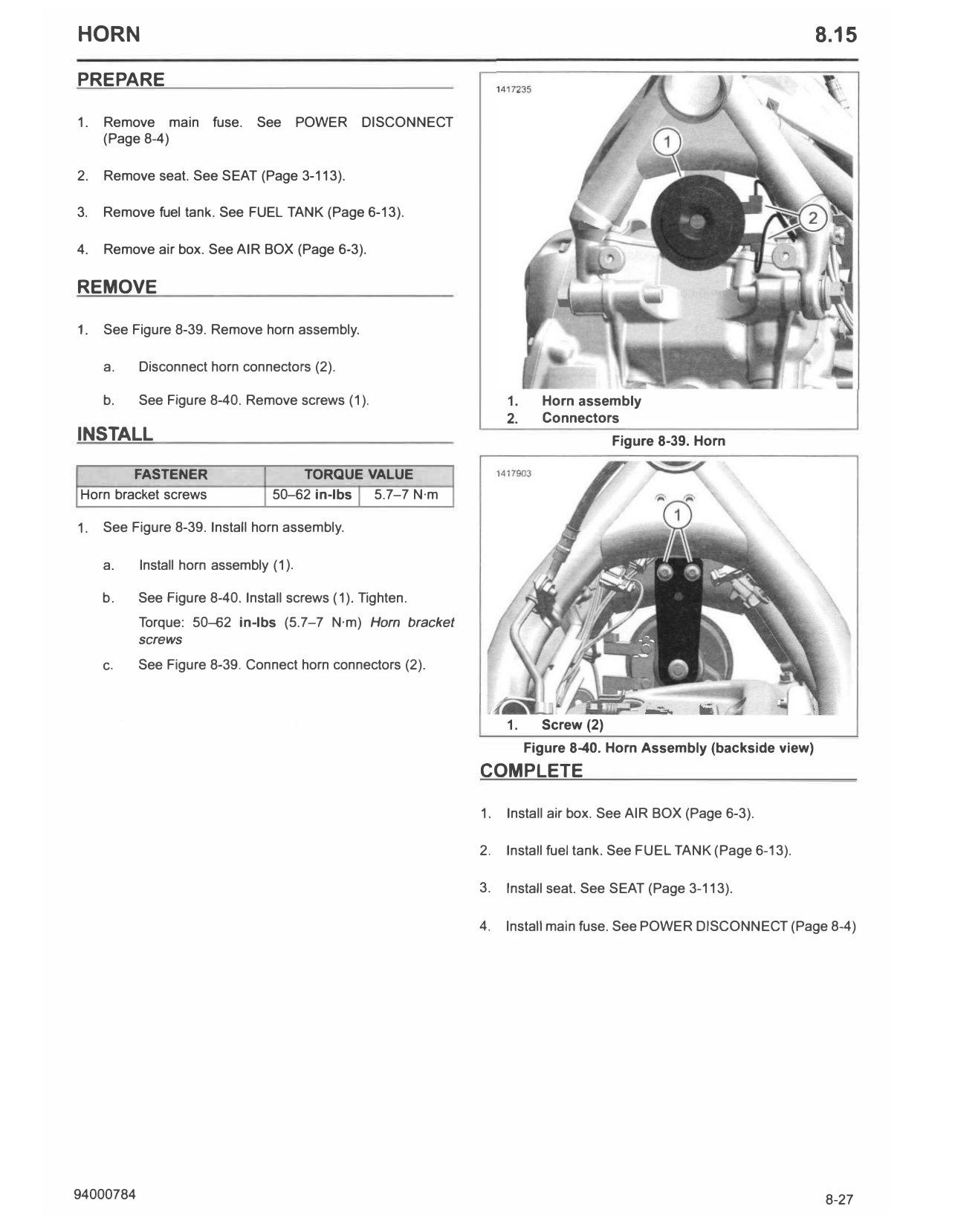

8.15 Horn

HORN                                                                                                                8.15

PREPARE

1.   Remove main fuse.        See POWER         DISCONNECT
     (Page 8-4)

2.   Remove seat. See SEAT (Page 3-113).

3.   Remove fuel tank. See FUEL TANK (Page 6-13).

4.   Remove air box. See AIR BOX (Page 6-3).

REMOVE

1.   See Figure 8-39. Remove horn assembly.

     a.    Disconnect horn connectors (2).

     b.    See Figure 8-40. Remove screws (1).                    1.     Horn assembly
                                                                  2.     Connectors
INSTALL                                                                              Figure 8-39. Horn

        FASTENER                     TORQUE VALUE
Horn bracket screws              50-62 in-lbs 5.7-7 N·m

1.   See Figure 8-39. Install horn assembly.

     a.    Install horn assembly (1).

     b.    See Figure 8-40. Install screws (1). Tighten.
           Torque: 50-62 in-lbs (5.7-7 N·m) Horn bracket
           screws
     c.    See Figure 8-39. Connect horn connectors (2).

                                                                  1.     Screw (2)
                                                                       Figure 8-40. Horn Assembly (backside view)
                                                             COMPLETE

                                                             1.   Install air box. See AIR BOX (Page 6-3).

                                                             2.   Install fuel tank. See FUEL TANK (Page 6-13).

                                                             3.   Install seat. See SEAT (Page 3-113).

                                                             4.   Install main fuse. See POWER DISCONNECT (Page 8-4)

94000784                                                                                                            8-27
