8.14 Oil Pressure Switch

OIL PRESSURE SWITCH                                                                                                  8.14

PREPARE                                                           2.   Connect oil pressure switch connector (1).

1.   Remove main fuse.         See POWER DISCONNECT
     (Page 8-4).

REMOVE
 PART NUMBER                    TOOL NAME
HD-52962              OIL PRESSURE SENDING UNIT
                      WRENCH

1.   See Figure 8-38. Disconnect oil pressure switch connector
     (1 ).

2.   Remove switch (2).
                                                                                                                          I
     Special Tool: OIL PRESSURE SENDING UNIT WRENCH
     (HD-52962)

INSTALL

 PART NUMBER                    TOOL NAME                              1.   Connector
HD-52962              OIL PRESSURE SENDING UNIT                        2.   Switch

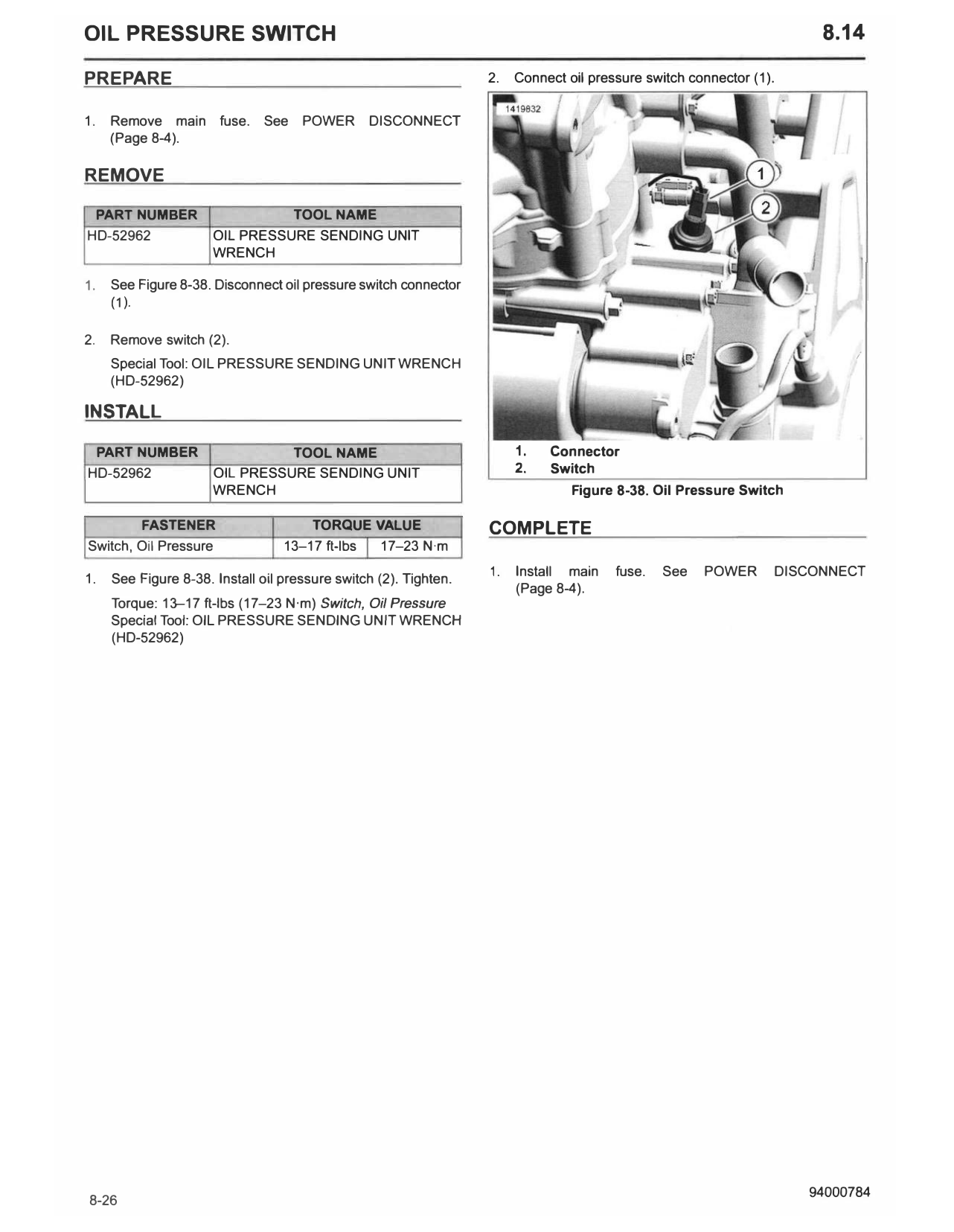

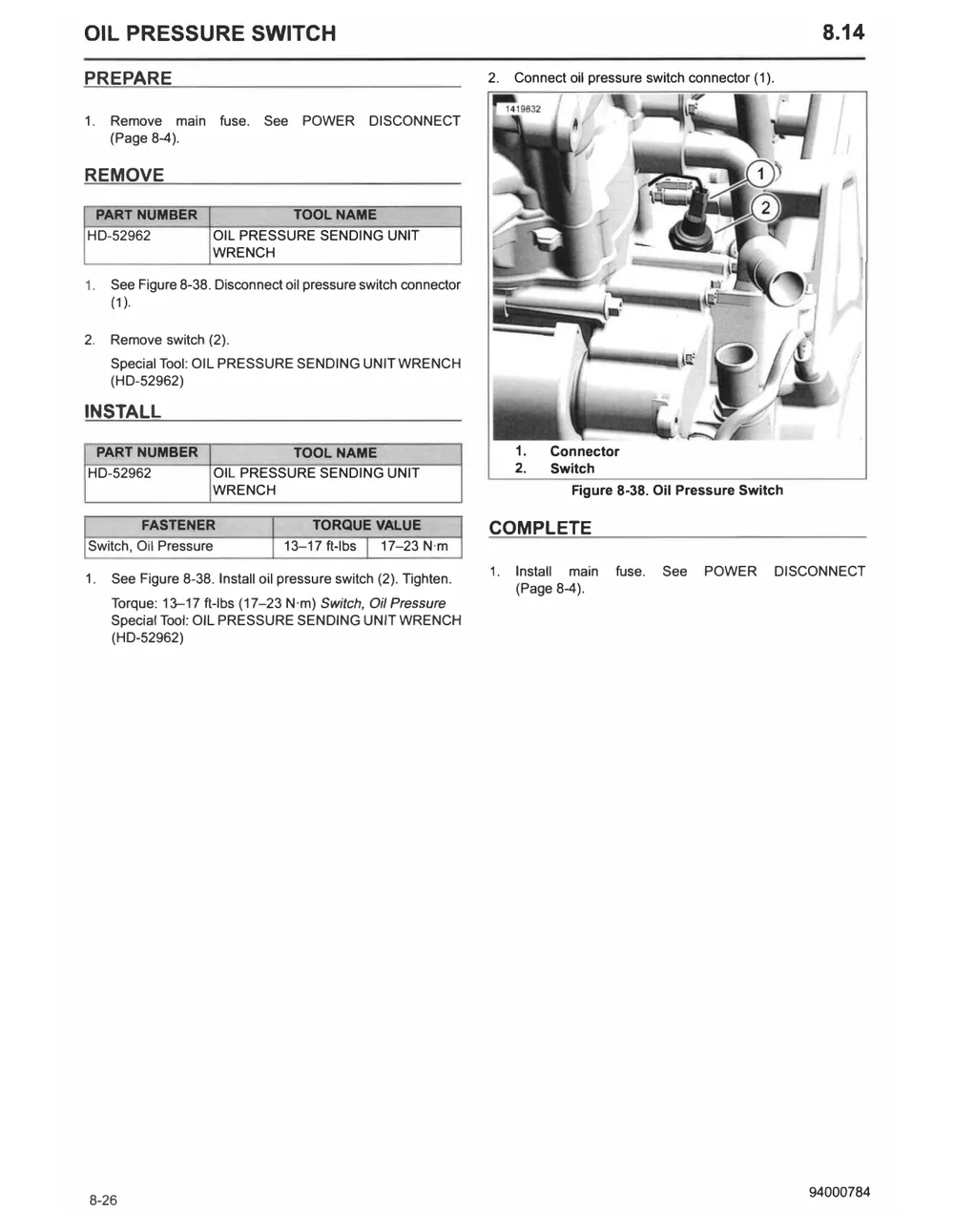

                      WRENCH                                                    Figure 8-38. Oil Pressure Switch

        FASTENER                      TORQUE VALUE                COMPLETE
Switch, Oil Pressure              13-17 ft-lbs 17-23 N·m
                                                                  1.   Install main    fuse.   See   POWER      DISCONNECT
1.   See Figure 8-38. Install oil pressure switch (2). Tighten.
                                                                       (Page 8-4).
     Torque: 13-17 ft-lbs (17-23 N·m) Switch, Oil Pressure
     Special Tool: OIL PRESSURE SENDING UNIT WRENCH
     (HD-52962)
