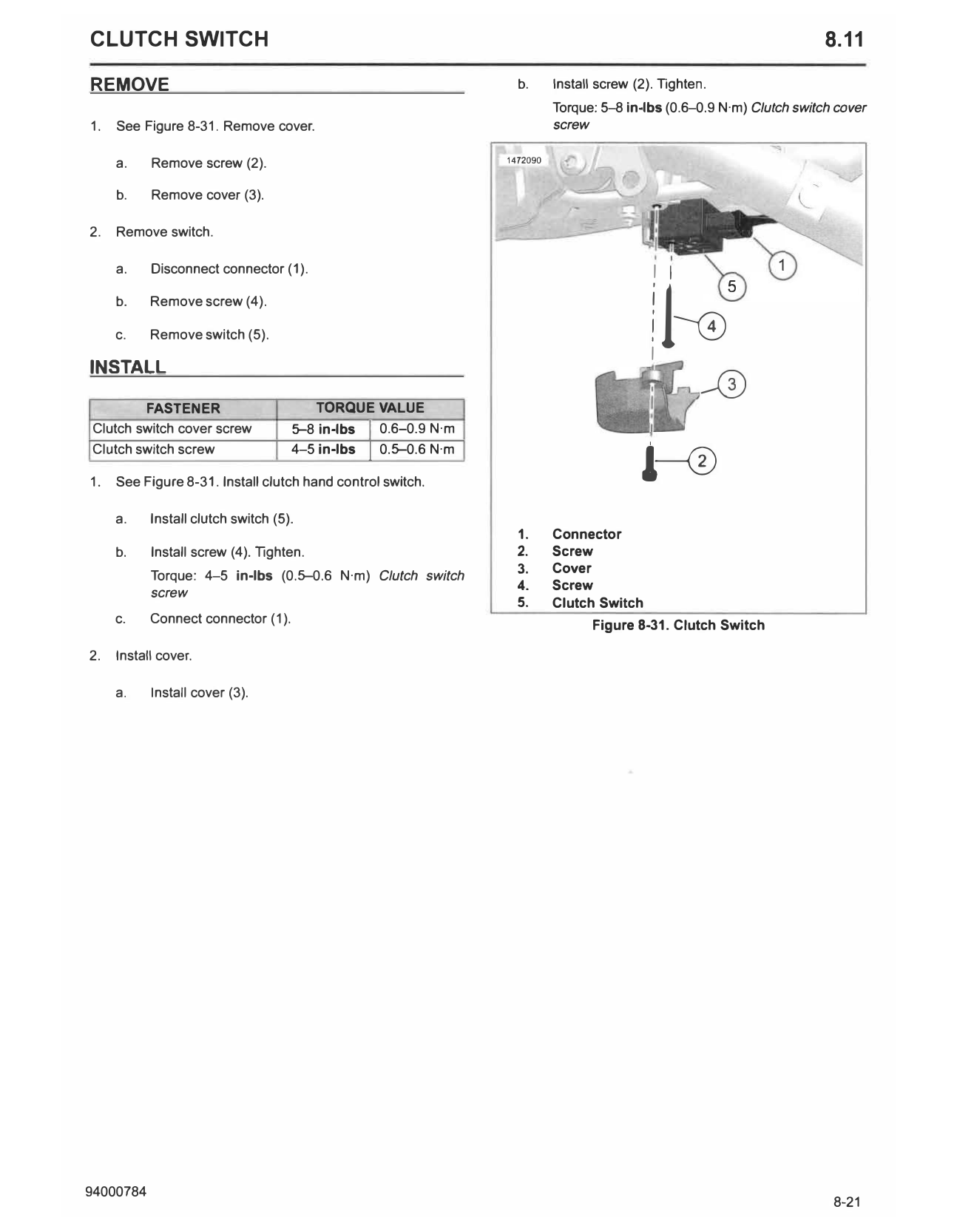

CLUTCH SWITCH                                                                                                       8.11

REMOVE                                                         b.      Install screw (2). Tighten.
                                                                       Torque: 5-8 in-lbs (0.6-0.9 N·m) Clutch switch cover
1.   See Figure 8-31. Remove cover.                                    screw

     a.    Remove screw (2).                                 1472090

     b.    Remove cover (3).

2.   Remove switch.

                                                                                        /J--0
     a.    Disconnect connector (1).                                                    I I                 1
                                                                                                     5
     b.    Remove screw (4).

     c.    Remove switch (5).
                                                                                        I
                                                                                                --0
INSTALL

                                                                                      ,�
        FASTENER                       TORQUE VALUE
Clutch switch cover screw           5-8 in-lbs I
                                               0.6-0.9 N·m
Clutch switch screw                 4-5 in-lbs I
                                               0.5-0.6 N·m

1.   See Figure 8-31. Install clutch hand control switch.

     a.    Install clutch switch (5).
                                                               1.      Connector
     b.    Install screw (4). Tighten.                         2.      Screw
           Torque: 4-5 in-lbs (0.5-0.6 N·m) Clutch switch
                                                               3.      Cover
           screw
                                                               4.      Screw
                                                               5.      Clutch Switch
     c.    Connect connector (1).                                            Figure 8-31. Clutch Switch

2.   Install cover.

     a.    Install cover (3).
