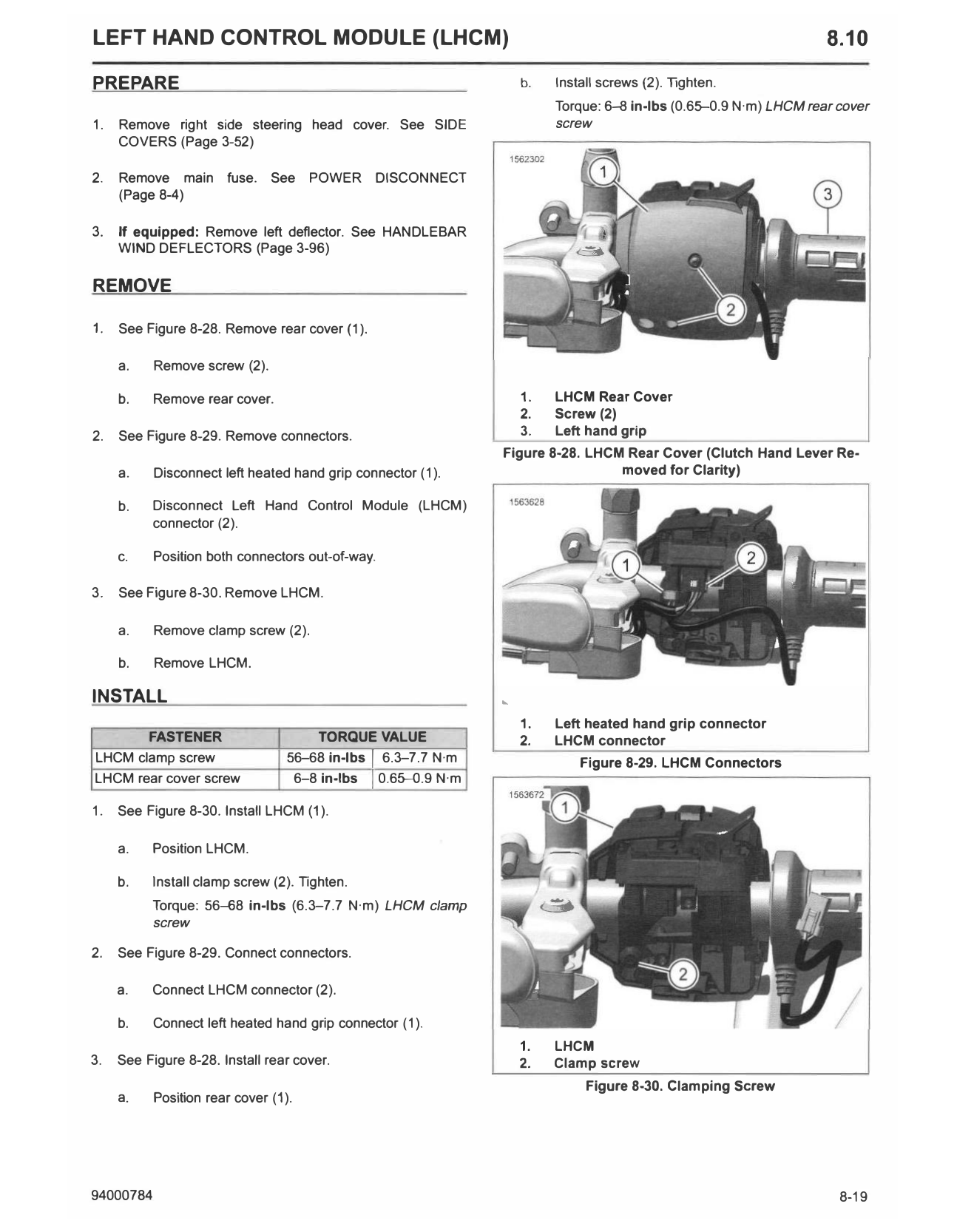

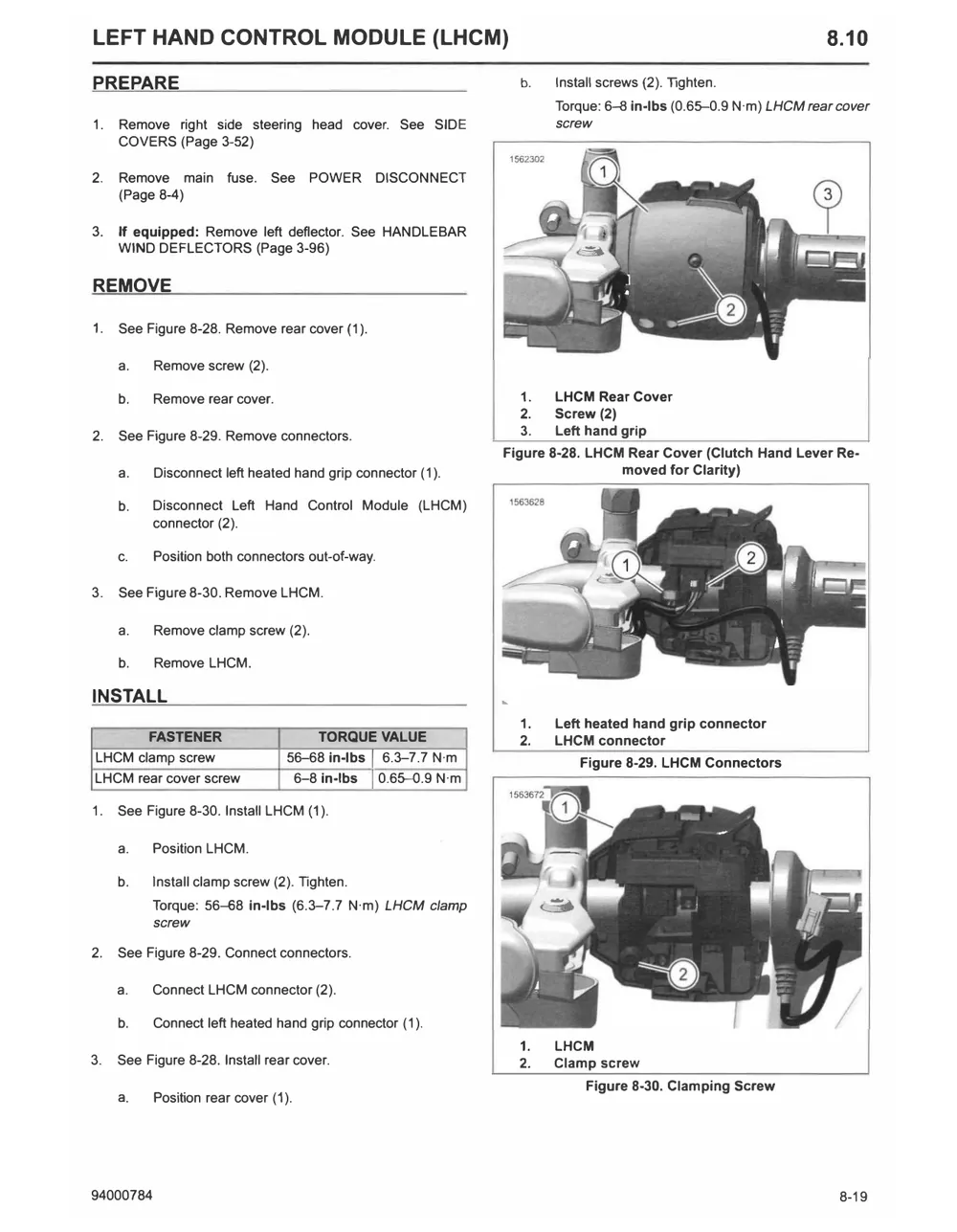

8.10 Left Hand Control Module (Lhcm)

LEFT HAND CONTROL MODULE (LHCM)                                                                                   8.10

PREPARE                                                            b.   Install screws (2). lighten.
                                                                        Torque: 6-8 in-lbs (0.65-0.9 N·m) LHCM rear cover
1.   Remove right side steering head cover. See SIDE                    screw
     COVERS (Page 3-52)

2.   Remove main fuse.         See POWER DISCONNECT
     (Page 8-4)

3.   If equipped: Remove left deflector. See HANDLEBAR
     WIND DEFLECTORS (Page 3-96)

REMOVE
1.   See Figure 8-28. Remove rear cover (1 ).

     a.    Remove screw (2).

     b.   Remove rear cover.                                       1.   LHCM Rear Cover
                                                                   2.   Screw (2)
2.   See Figure 8-29. Remove connectors.                           3.   Left hand grip
                                                             Figure 8-28. LHCM Rear Cover (Clutch Hand Lever Re­
     a.    Disconnect left heated hand grip connector (1).                    moved for Clarity)

     b.   Disconnect Left Hand Control Module (LHCM)
          connector (2).

     c.    Position both connectors out-of-way.

3.   See Figure 8-30. Remove LHCM.

     a.    Remove clamp screw (2).

     b.    Remove LHCM.

INSTALL                                                      ...
                                                                   1.   Left heated hand grip connector
       FASTENER                      TORQUE VALUE                  2.   LHCM connector
LHCM clamp screw                                I
                                 56-68 in-lbs 6.3-7.7 N·m
                                                I
                                                                            Figure 8-29. LHCM Connectors
LHCM rear cover screw             6-8 in-lbs 0.65-0.9 N·m

1.   See Figure 8-30. Install LHCM (1 ).

     a.    Position LHCM.

     b.   Install clamp screw (2). Tighten.
          Torque: 56--68 in-lbs (6.3-7.7 N·m) LHCM clamp
          screw

2.   See Figure 8-29. Connect connectors.

     a.   Connect LHCM connector (2).

     b.    Connect left heated hand grip connector (1).
                                                                   1.   LHCM
3.   See Figure 8-28. Install rear cover.                          2.   Clamp screw
                                                                             Figure 8-30. Clamping Screw
     a.    Position rear cover (1).

94000784                                                                                                            8-19

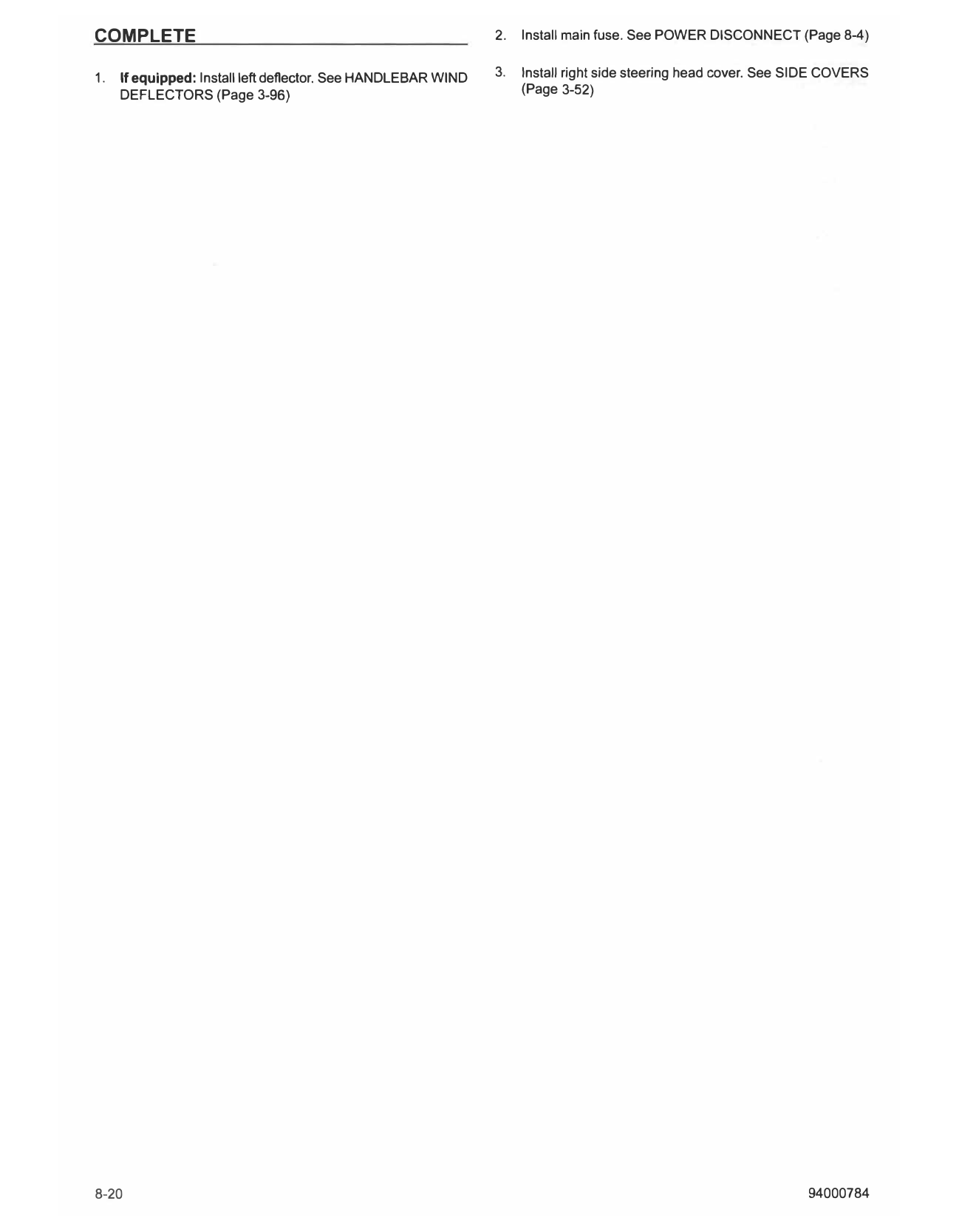

COMPLETE                                                       2.   Install main fuse. See POWER DISCONNECT (Page 8-4)

1.   If equipped: Install left deflector. See HANDLEBAR WIND   3.   Install right side steering head cover. See SIDE COVERS
                                                                    (Page 3-52)
     DEFLECTORS (Page 3-96)

8-20                                                                                                             94000784
