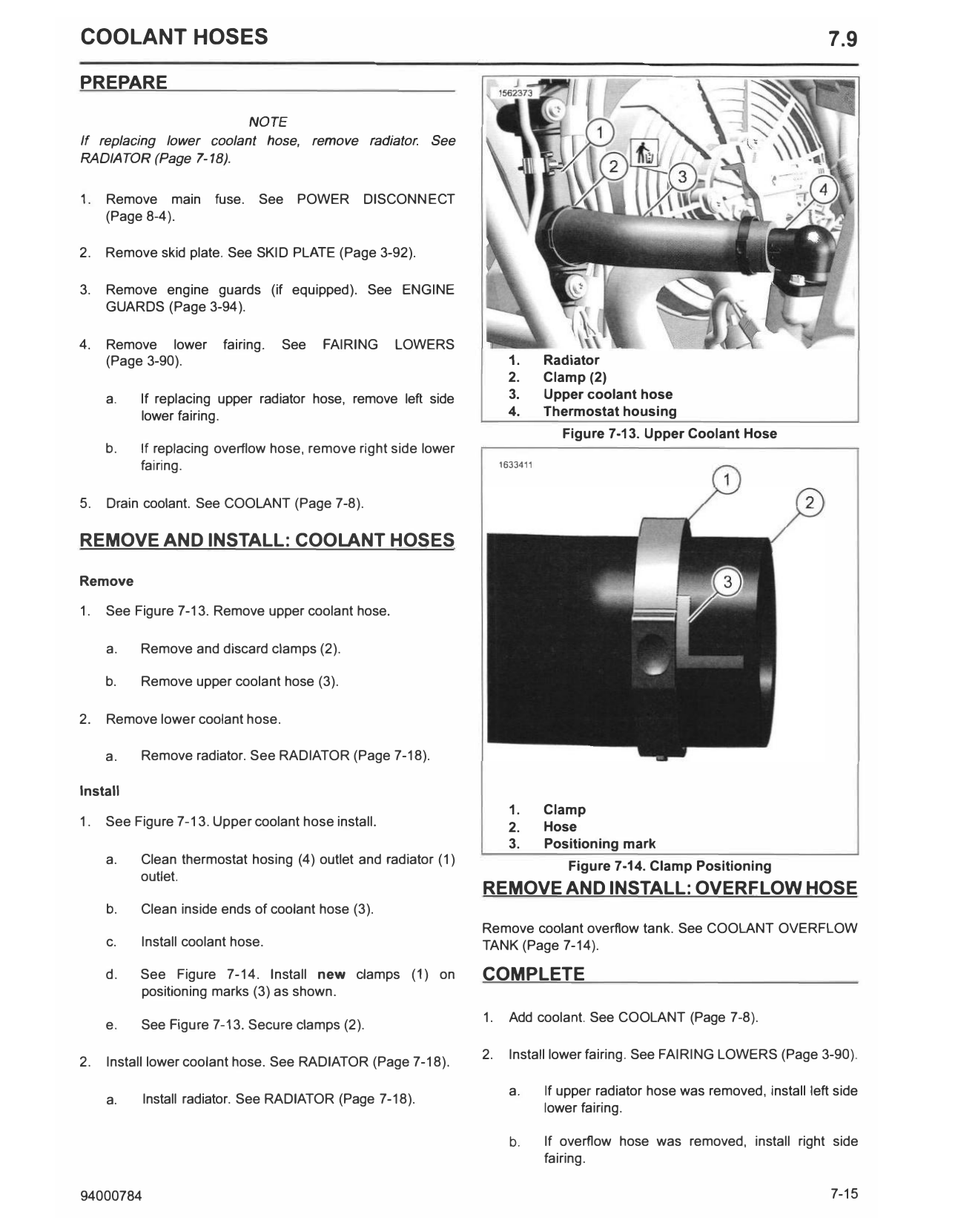

COOLANT HOSES 7.9
PREPARE

NOTE
If replacing lower coolant hose, remove radiator. See
RADIATOR (Page 1-18).

1. Remove main fuse. See POWER DISCONNECT
(Page 8-4).

2. Remove skid plate. See SKID PLATE (Page 3-92).

3. Remove engine guards (if equipped). See ENGINE
GUARDS (Page 3-94).

4. Remove lower fairing. See FAIRING LOWERS
(Page 3-90). 1. Radiator
2. Clamp (2)
a. If replacing upper radiator hose, remove left side 3. Upper coolant hose
lower fairing. 4. Thermostat housing
Figure 7-13. Upper Coolant Hose
b. If replacing overflow hose, remove right side lower
fairing. 1633411

5. Drain coolant. See COOLANT (Page 7-8).

REMOVE AND INSTALL: COOLANT HOSES

Remove

1. See Figure 7-13. Remove upper coolant hose.

a. Remove and discard clamps (2).

b. Remove upper coolant hose (3).

2. Remove lower coolant hose.

a. Remove radiator. See RADIATOR (Page 7-18).

Install
1. Clamp
1. See Figure 7-13. Upper coolant hose install. 2. Hose
3. Positioning mark
a. Clean thermostat hosing (4) outlet and radiator (1)
Figure 7-14. Clamp Positioning
outlet.
REMOVE AND INSTALL: OVERFLOW HOSE
b. Clean inside ends of coolant hose (3).
Remove coolant overflow tank. See COOLANT OVERFLOW
c. Install coolant hose. TANK (Page 7-14).

d. See Figure 7-14. Install new clamps (1) on COMPLETE
positioning marks (3) as shown.
1. Add coolant. See COOLANT (Page 7-8).
e. See Figure 7-13. Secure clamps (2).

2. Install lower fairing. See FAIRING LOWERS (Page 3-90).
2. Install lower coolant hose. See RADIATOR (Page 7-18).

a. If upper radiator hose was removed, install left side
a. Install radiator. See RADIATOR (Page 7-18).
lower fairing.

b. If overflow hose was removed, install right side
fairing.

94000784 7-15

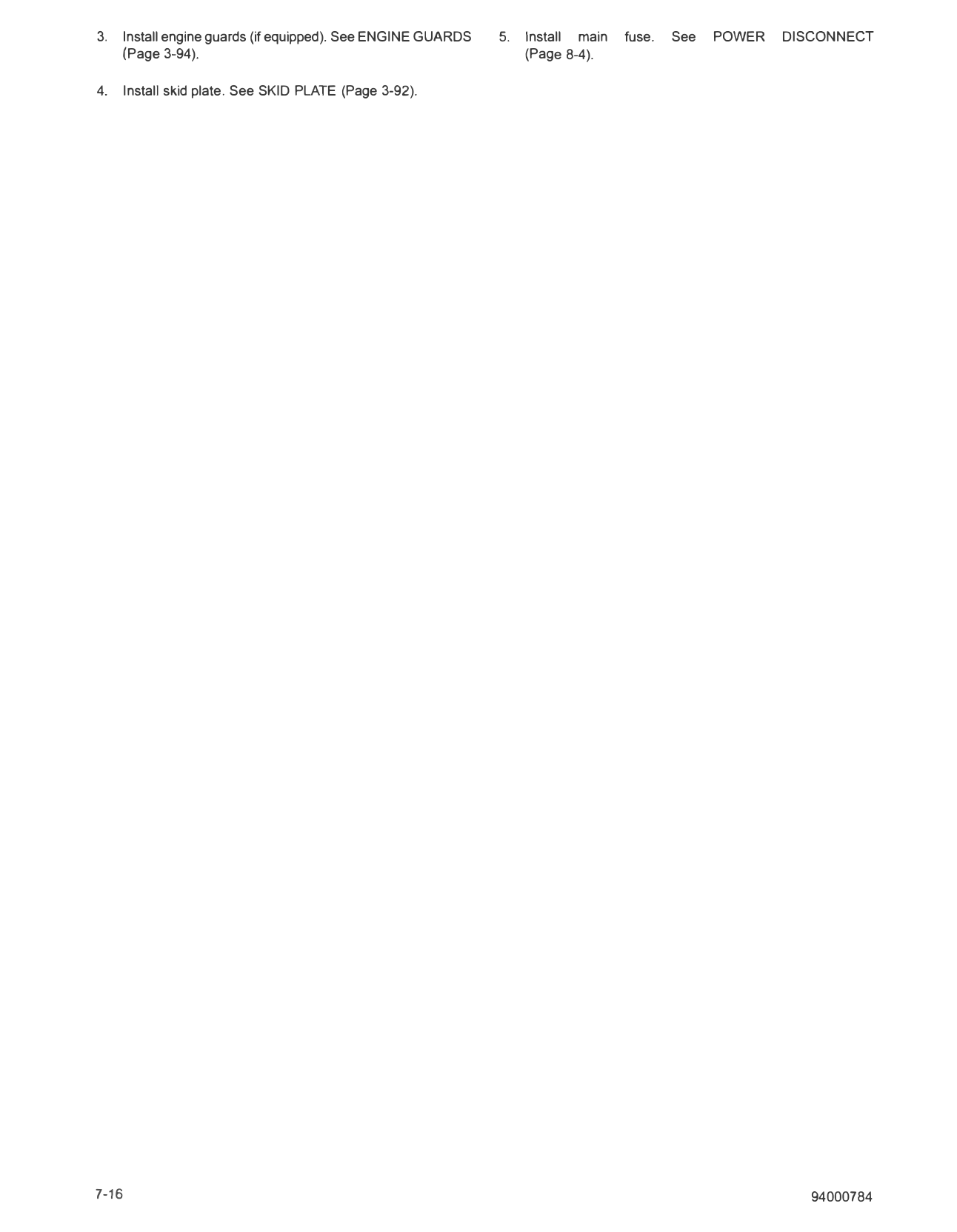

3. Install engine guards (if equipped). See ENGINE GUARDS 5. Install main fuse. See POWER DISCONNECT
(Page 3-94). (Page 8-4).

4. Install skid plate. See SKID PLATE (Page 3-92).
