7.10 Engine Coolant Temperature (Ect) Sensor

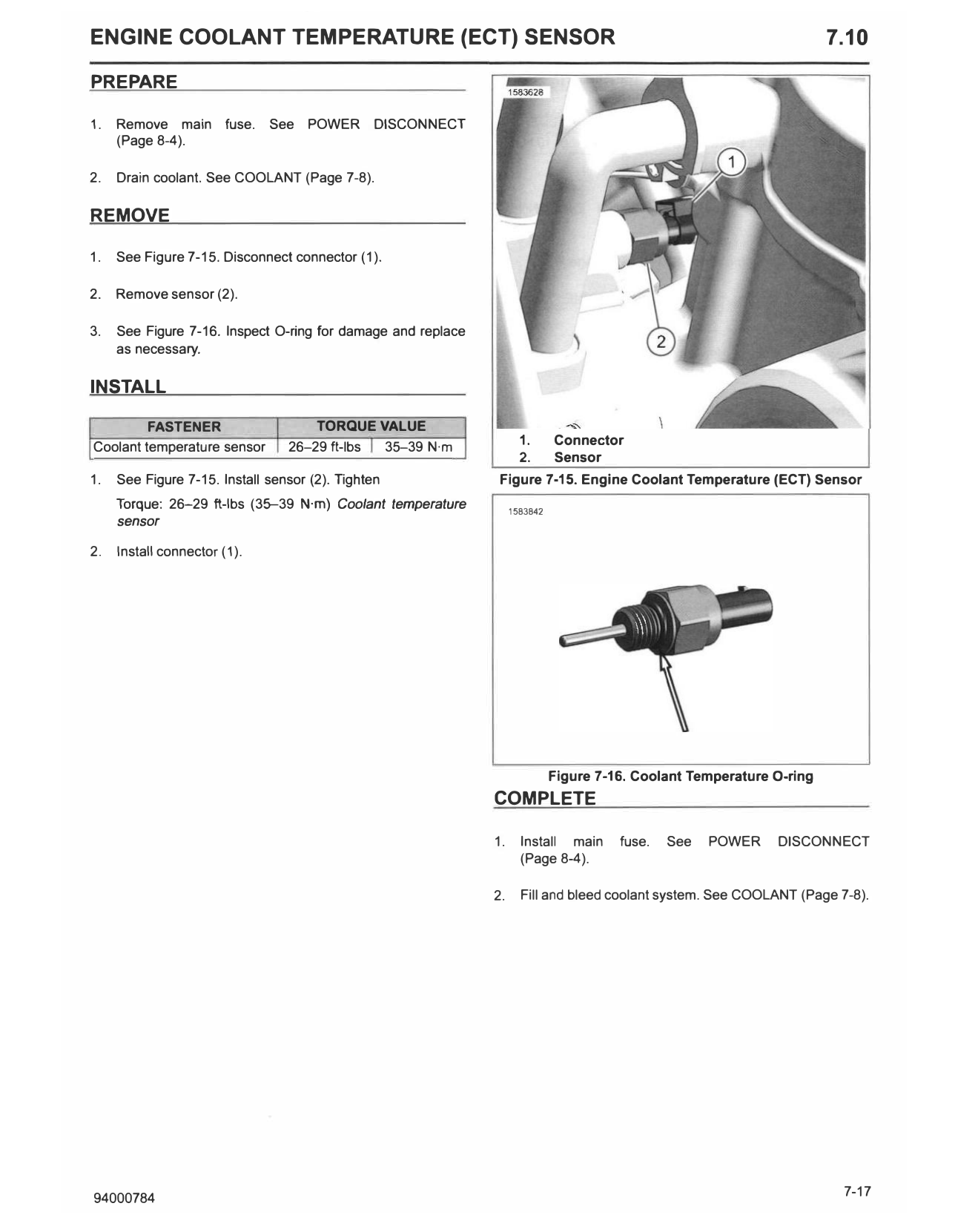

ENGINE COOLANT TEMPERATURE (ECT) SENSOR                                                                                7.10
PREPARE

1.   Remove main fuse.        See POWER         DISCONNECT
     (Page 8-4).

2.   Drain coolant. See COOLANT (Page 7-8).

REMOVE

1.   See Figure 7-15. Disconnect connector (1).

2.   Remove sensor (2).

3.   See Figure 7-16. Inspect O-ring for damage and replace
     as necessary.

INSTALL

         FASTENER                    TORQUE VALUE
Coolant temperature sensor       26-29 ft-lbs 35-39 N·m              1.      Connector
                                                                     2.      Sensor
1.   See Figure 7-15. Install sensor (2). Tighten              Figure 7-15. Engine Coolant Temperature (ECT) Sensor
     Torque: 26-29 ft-lbs (35-39 N·m) Coolant temperature          1583842
     sensor

2.   Install connector (1).

                                                                             Figure 7-16. Coolant Temperature 0-ring
                                                              COMPLETE

                                                              1.     Install main      fuse.   See   POWER    DISCONNECT
                                                                     (Page 8-4).

                                                              2.     Fill and bleed coolant system. See COOLANT (Page 7-8).

94000784                                                                                                                7-17
