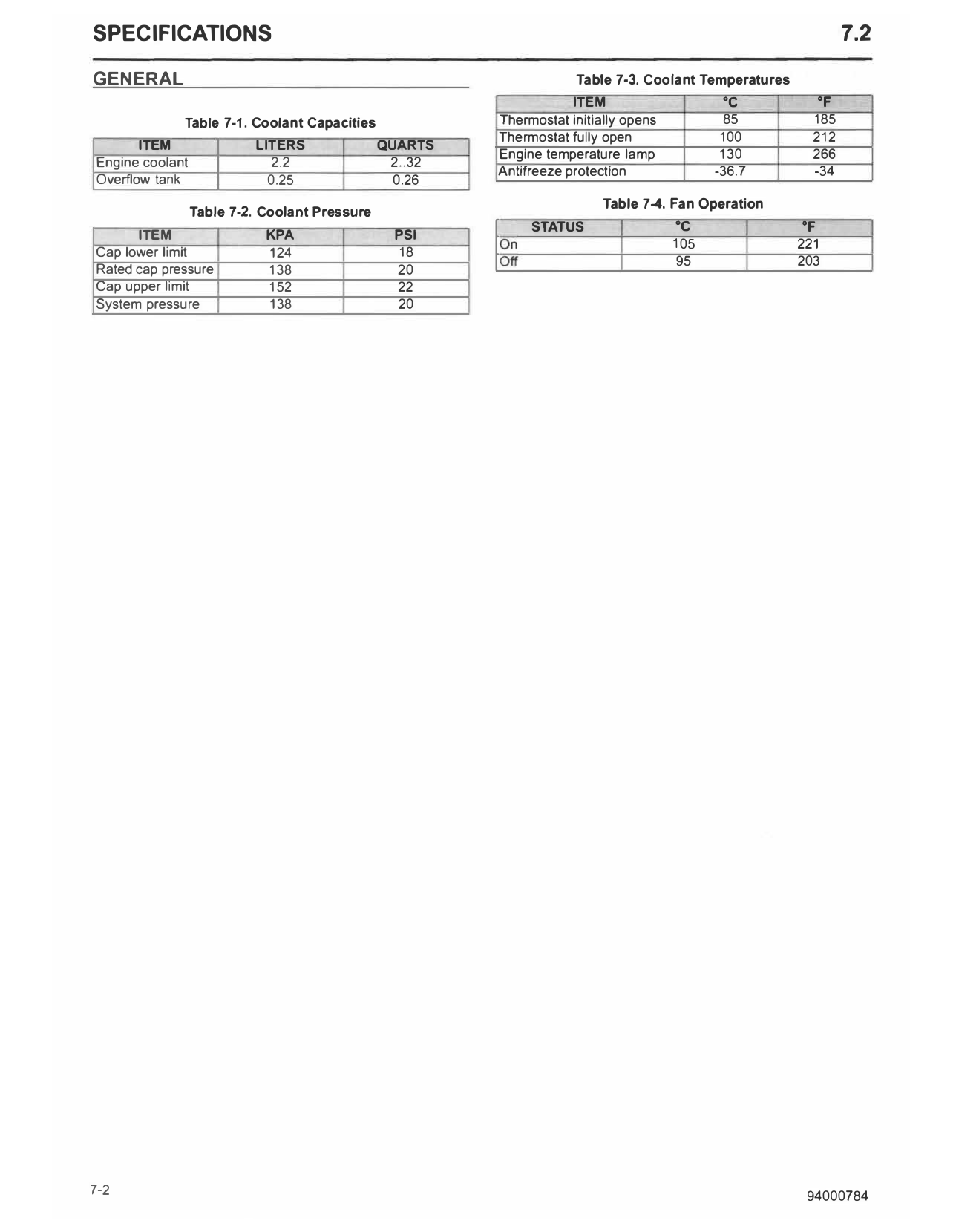

7.2 Specifications

SPECIFICATIONS                                                                                                    7.2

GENERAL                                                               Table 7-3. Coolant Temperatures
                                                                     ITEM                   oc               OF

             Table 7-1. Coolant Capacities               Thermostat initially opens           85          185
       ITEM               LITERS               QUARTS
                                                         Thermostat fully open               100          212
                                                         Engine temperature lamp             130          266
Engine coolant               2.2                2.. 32
                                                         Antifreeze protection              -36.7         -34
Overflow tank               0.25                0.26
                                                                          Table 7-4. Fan Operation
                 Table 7-2. Coolant Pressure
                                                              STATUS                  oc
      ITEM                  KPA                 PSI
                                                                                                        OF
                                                         I                            105               221
Cap lower limit             124                  18
                                                                                       95               203
Rated cap pressure          138                  20
Cap upper limit             152                  22
System pressure             138                  20

7-2                                                                                                      94000784
