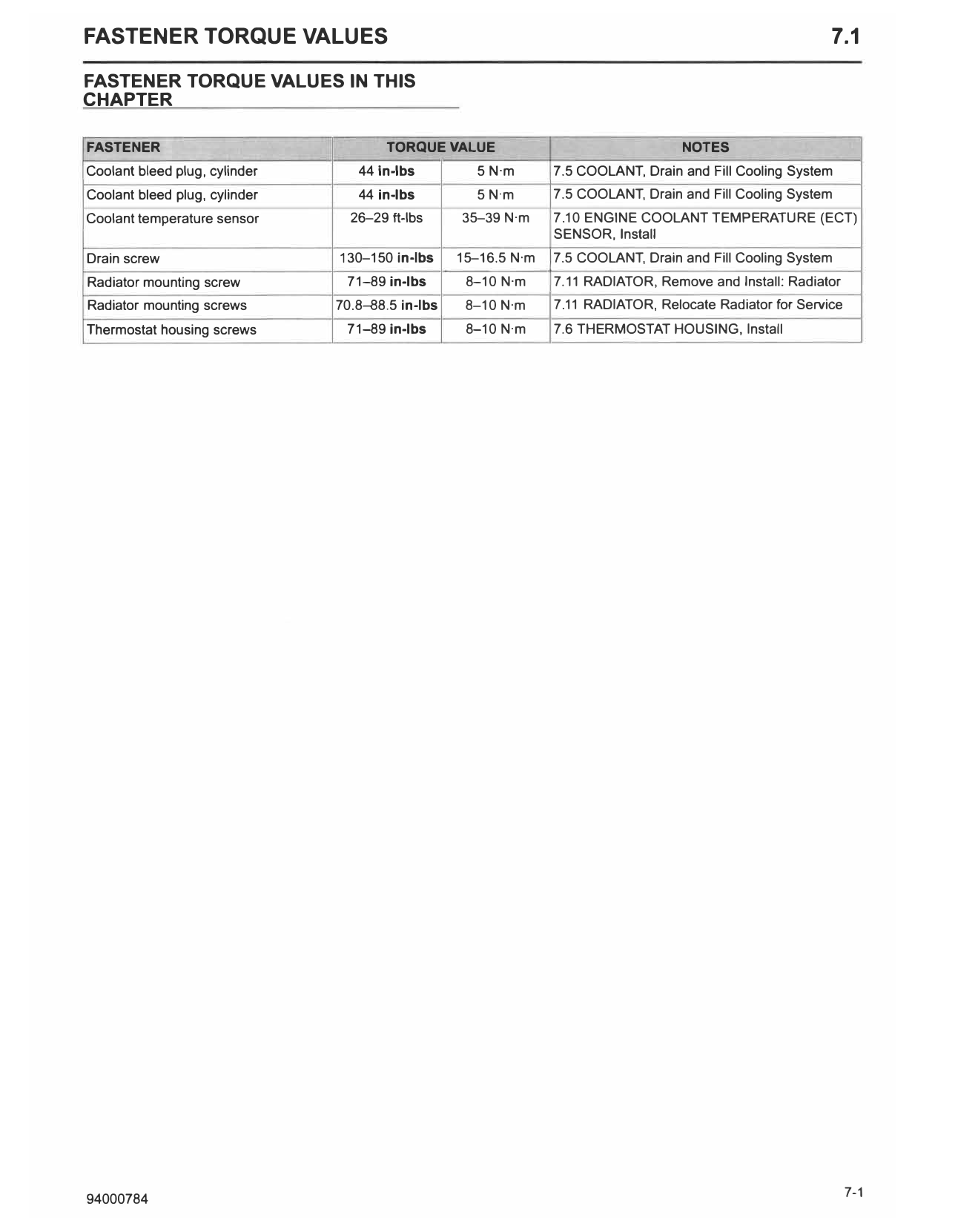

7.1 Fastener Torque Values

FASTENER TORQUE VALUES                                                                                     7.1

FASTENER TORQUE VALUES IN THIS
CHAPTER

FASTENER                               TORQUE VALUE                                 NOTES
Coolant bleed plug, cylinder       44 in-lbs          5N·m       7.5COOLANT, Drain and Fill Cooling System
Coolant bleed plug, cylinder       44 in-lbs          5N·m       7.5COOLANT, Drain and Fill Cooling System
Coolant temperature sensor       26-29 ft-lbs       35-39N·m     7 .10 ENGINE COOLANT TEMPERATURE (ECT)
                                                                 SENSOR, Install
Drain screw                    130-150 in-lbs       15-16.5N·m   7.5 COOLANT, Drain and Fill Cooling System
Radiator mounting screw          71-89 in-lbs        8-10 N·m    7.11 RADIATOR, Remove and Install: Radiator
Radiator mounting screws       70 . 8-88.5 in-lbs    8-10N·m     7.11 RADIATOR, Relocate Radiator for Service
Thermostat housing screws        71-89 in-lbs        8-10 N·m    7.6 THERMOSTAT HOUSING, Install

94000784                                                                                                        7-1
