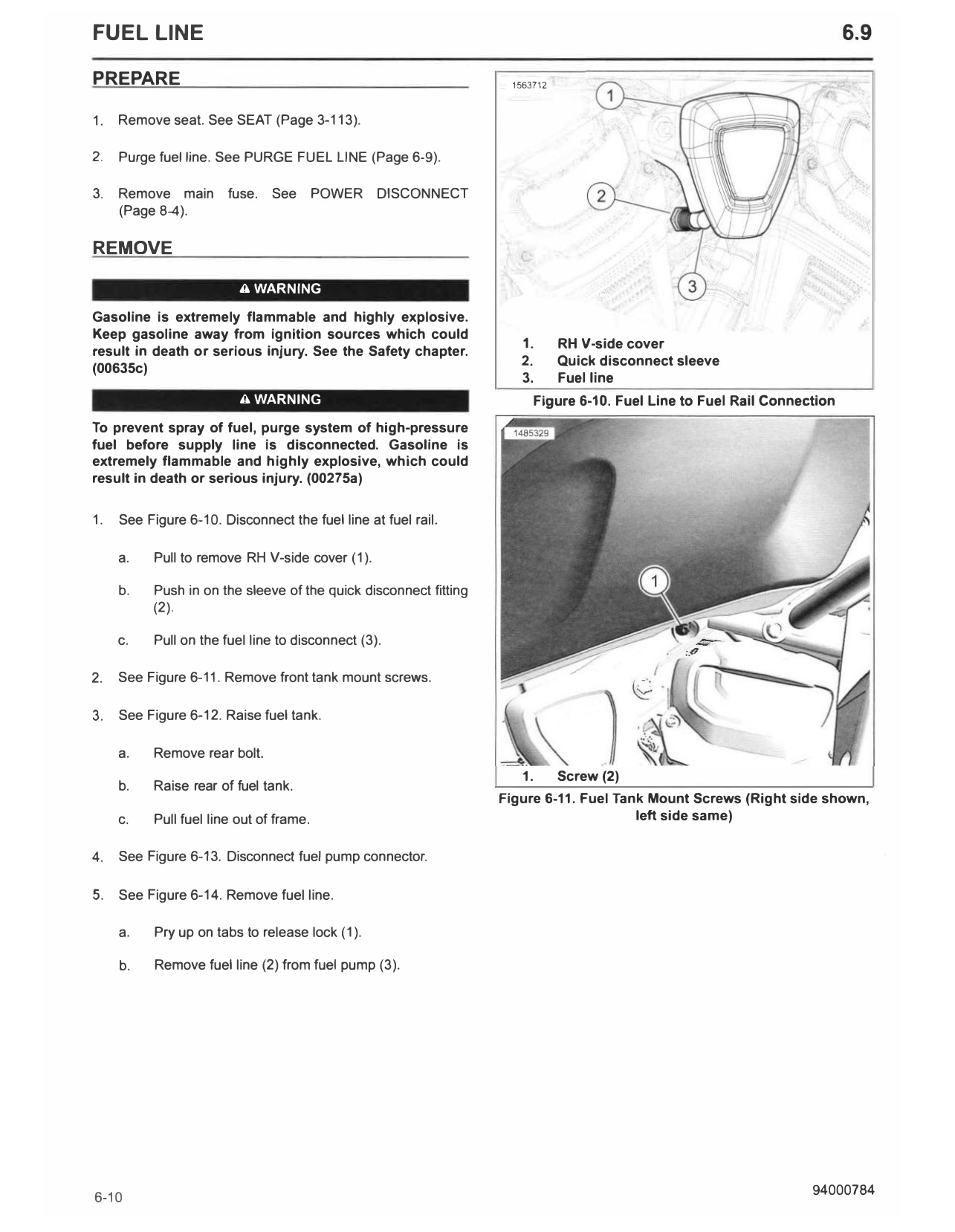

6.9 Fuel Line

FUEL LINE                                                                                                                   6.9

PREPARE                                                             1563712

1.   Remove seat. See SEAT (Page 3-113).

2.   Purge fuel line. See PURGE FUEL LINE (Page 6-9).

3.   Remove main        fuse.   See POWER         DISCONNECT
     (Page 8-4).

REMOVE

                          A WARNING
Gasoline is extremely flammable and highly explosive.
Keep gasoline away from ignition sources which could
                                                                      1.      RH V-side cover
result in death or serious injury. See the Safety chapter.
                                                                      2.      Quick disconnect sleeve
(00635c)
                                                                      3.      Fuel line
                          A WARNING                                        Figure 6-10. Fuel Line to Fuel Rail Connection
To prevent spray of fuel, purge system of high-pressure
fuel before supply line is disconnected. Gasoline is
extremely flammable and highly explosive, which could
result in death or serious injury. (00275a)

1.   See Figure 6-10. Disconnect the fuel line at fuel rail.

     a.    Pull to remove RH V-side cover (1).

     b.    Push in on the sleeve of the quick disconnect fitting
           (2).

     c.    Pull on the fuel line to disconnect (3).

2.   See Figure 6-11. Remove front tank mount screws.

3.   See Figure 6-12. Raise fuel tank.

     a.    Remove rear bolt.
                                                                      1.      Screw (2)
     b.    Raise rear of fuel tank.
                                                                   Figure 6-11. Fuel Tank Mount Screws (Right side shown,
     c.    Pull fuel line out of frame.                                                 left side same)

4.   See Figure 6-13. Disconnect fuel pump connector.

5.   See Figure 6-14. Remove fuel line.

     a.    Pry up on tabs to release lock (1).

     b.    Remove fuel line (2) from fuel pump (3).

  1563618

                                                               1.    Lock
                                                               2.    Fuel line
                                                               3.    Fuel pump

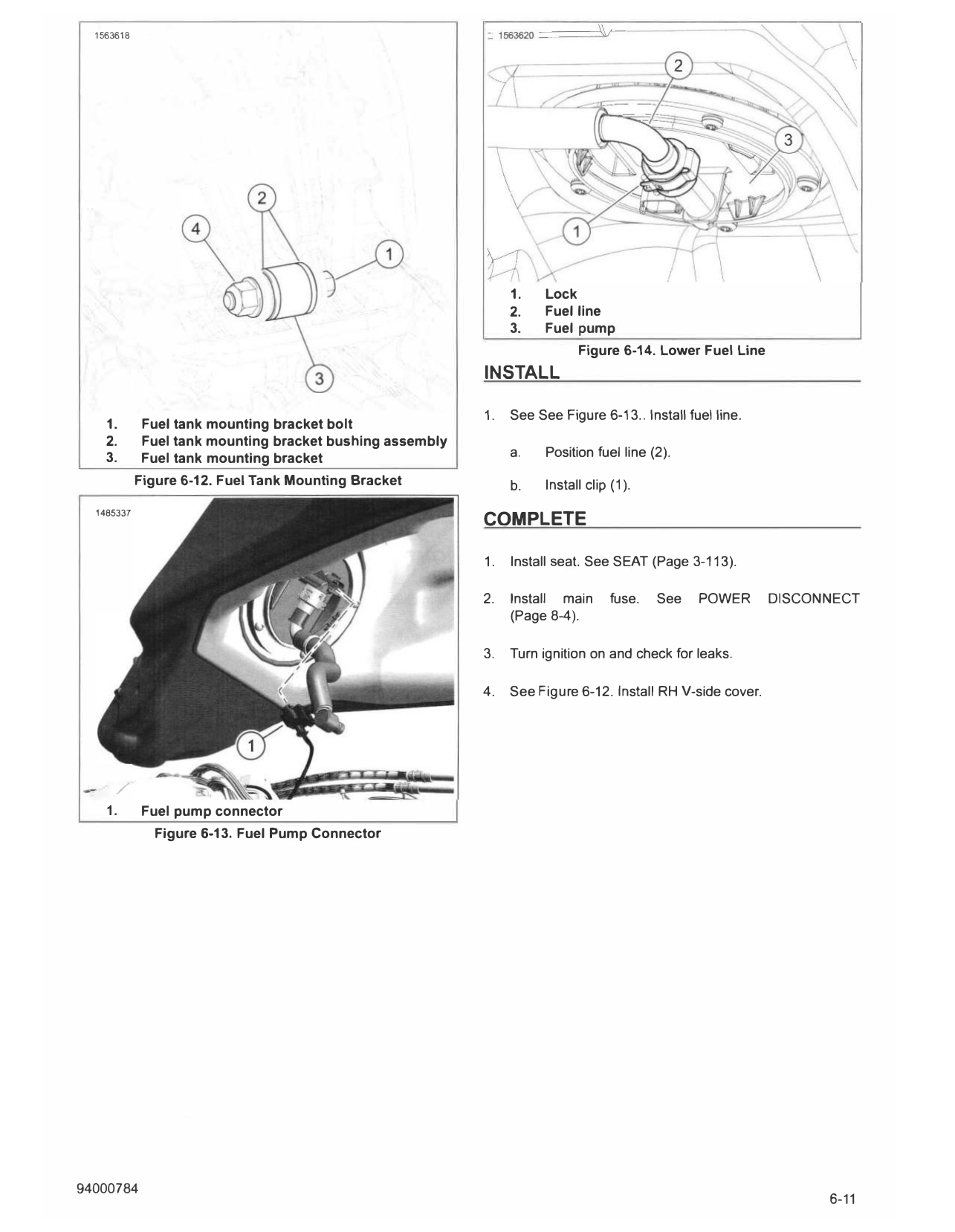

                                                                           Figure 6-14. Lower Fuel Line
                                                          INSTALL

                                                          1.   See See Figure 6-13.. Install fuel line.
    1.      Fuel tank mounting bracket bolt
    2.      Fuel tank mounting bracket bushing assembly
    3.      Fuel tank mounting bracket                         a.    Position fuel line (2).

            Figure 6-12. Fuel Tank Mounting Bracket            b.    Install clip (1 ).
  1485337
                                                          COMPLETE

                                                          1.   Install seat. See SEAT (Page 3-113).

                                                          2.   Install main       fuse.   See   POWER      DISCONNECT
                                                               (Page 8-4).

                                                          3.   Turn ignition on and check for leaks.

                                                          4.   See Figure 6-12. Install RH V-side cover.

      /
    1.  Fuel pump connector
              Figure 6-13. Fuel Pump Connector
