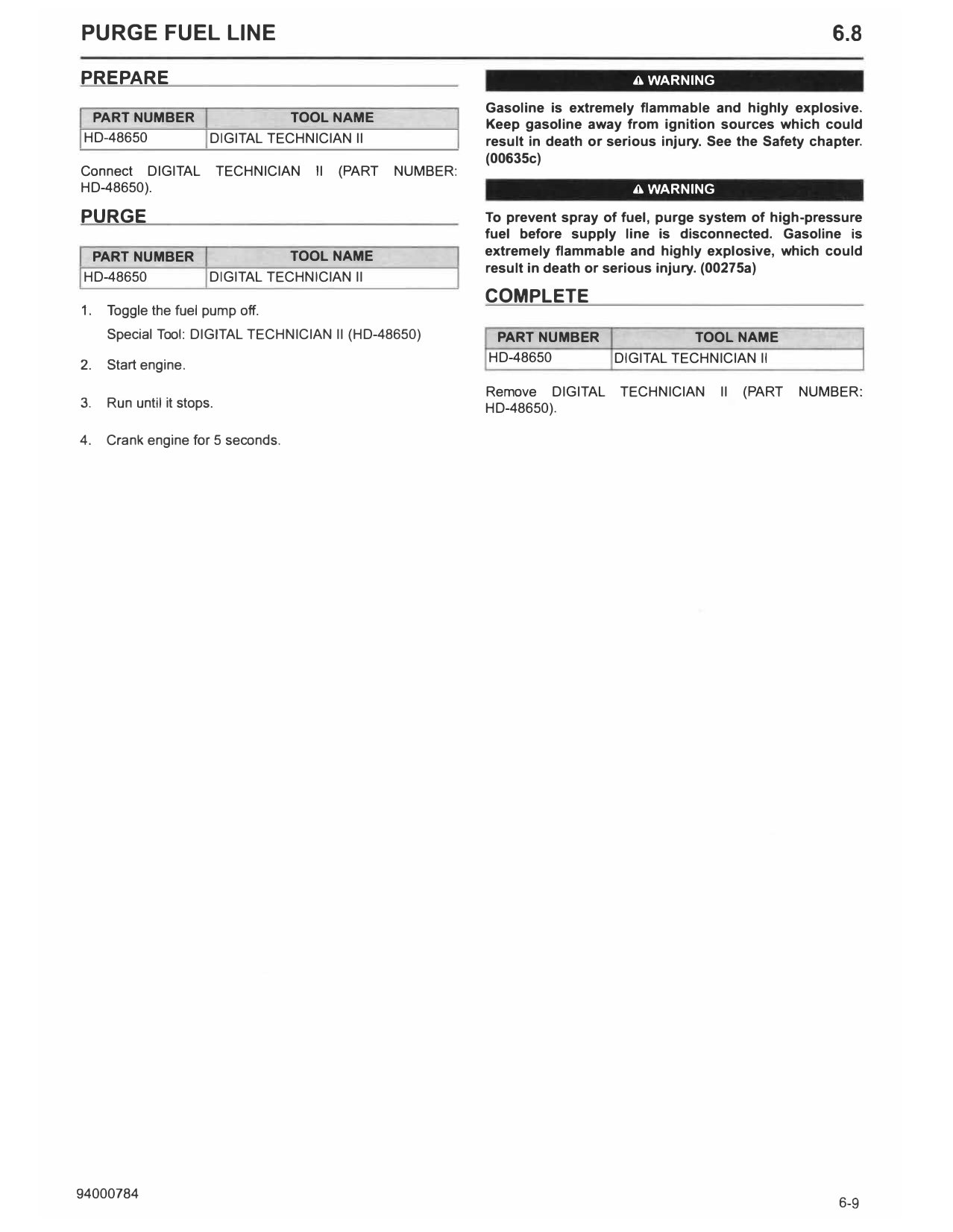

6.8 Purge Fuel Line

PURGE FUEL LINE                                                                                                      6.8
PREPARE                                                                               A WARNING
                                                                Gasoline is extremely flammable and highly explosive.
     PART NUMBER                    TOOL NAME                   Keep gasoline away from ignition sources which could
HD-48650                DIGITAL TECHNICIAN II                   result in death or serious injury. See the Safety chapter.
                                                                (00635c)
Connect DIGITAL             TECHNICIAN   II   (PART   NUMBER:
HD-48650).                                                                            A WARNING
PURGE                                                           To prevent spray of fuel, purge system of high-pressure
                                                                fuel before supply line is disconnected. Gasoline is
 PART NUMBER                       TOOL NAME                    extremely flammable and highly explosive, which could
                                                                result in death or serious injury. (00275a)
HD-48650                DIGITAL TECHNICIAN II
                                                                COMPLETE
1.    Toggle the fuel pump off.
      Special Tool: DIGITAL TECHNICIAN II (HD-48650)             PART NUMBER                    TOOL NAME
                                                                HD-48650           DIGITAL TECHNICIAN II
2.    Start engine.
                                                                Remove DIGITAL      TECHNICIAN      II   (PART   NUMBER:
3.    Run until it stops.                                       HD-48650).

4.    Crank engine for 5 seconds.
