6.5 Breather Hoses
Fragment manuala — str. 320
📋 Tekst do skopiowania (OCR/wyszukiwanie)

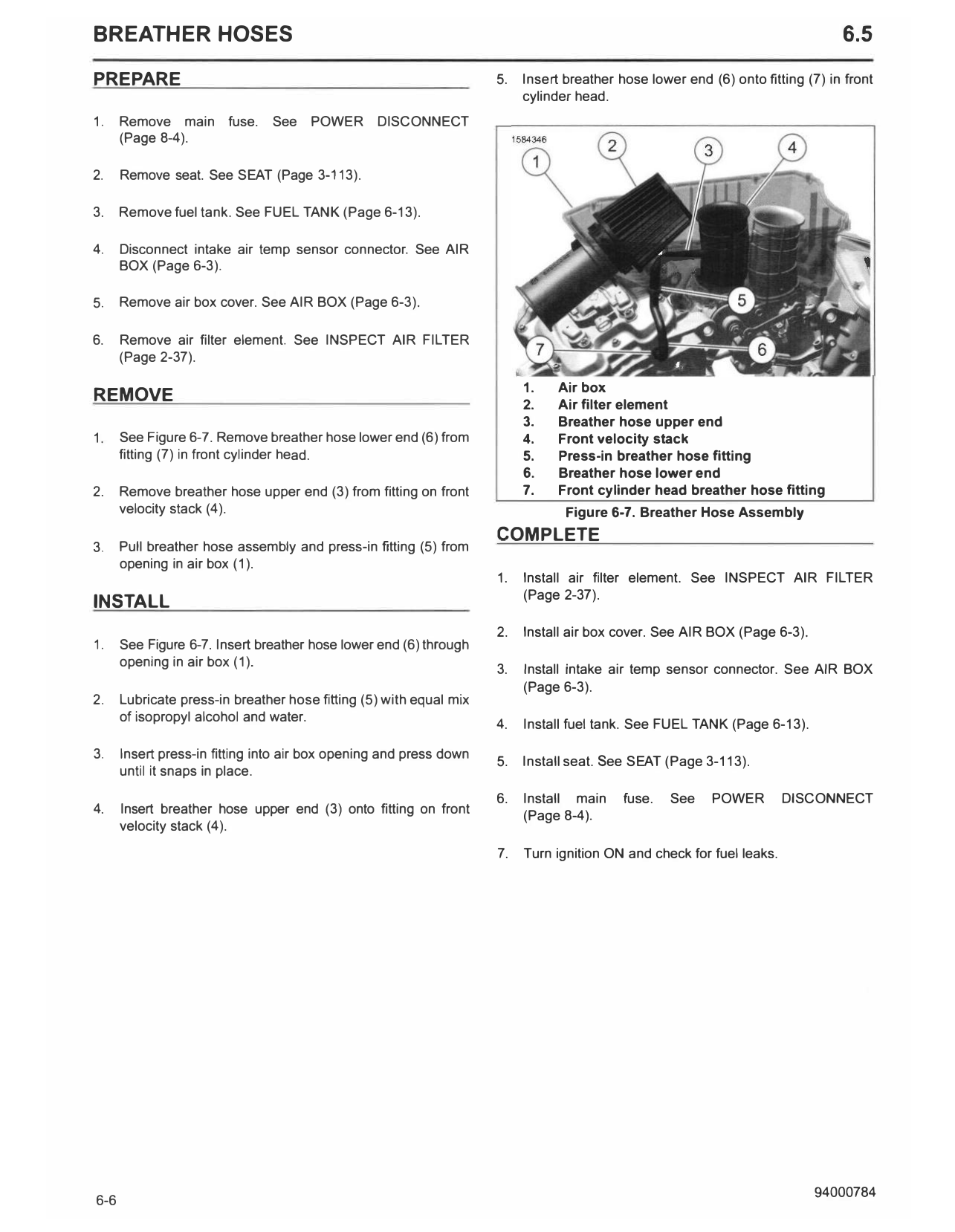

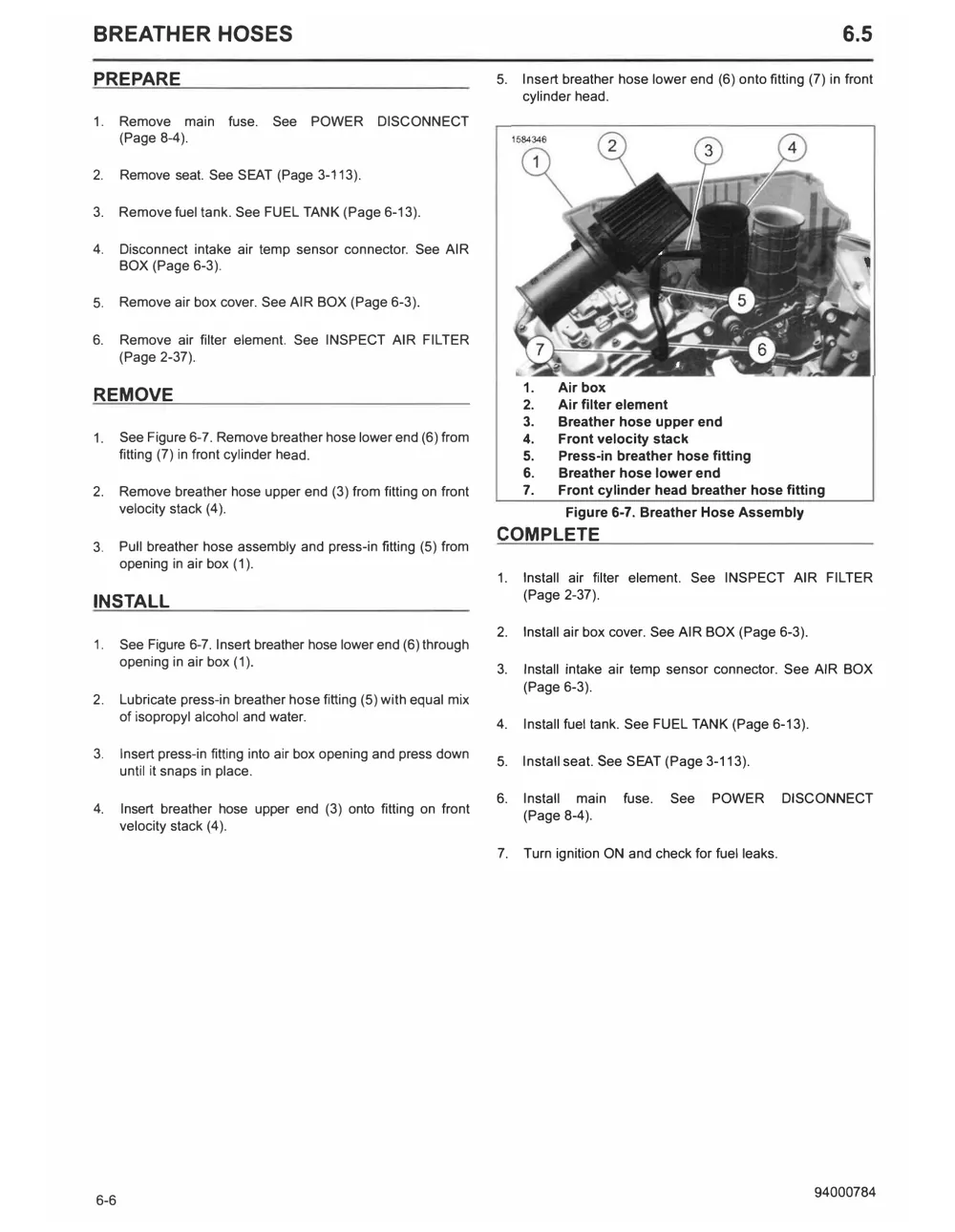

BREATHER HOSES 6.5
PREPARE 5. Insert breather hose lower end (6) onto fitting (7) in front
cylinder head.
1. Remove main fuse. See POWER DISCONNECT
(Page 8-4).
2. Remove seat. See SEAT (Page 3-113).
3. Remove fuel tank. See FUEL TANK (Page 6-13).
4. Disconnect intake air temp sensor connector. See AIR
BOX (Page 6-3).
5. Remove air box cover. See AIR BOX (Page 6-3).
6. Remove air filter element. See INSPECT AIR FILTER
(Page 2-37).
1. Air box
REMOVE 2. Air filter element
3. Breather hose upper end
1. See Figure 6-7. Remove breather hose lower end (6) from 4. Front velocity stack
fitting (7) in front cylinder head. 5. Press-in breather hose fitting
6. Breather hose lower end
2. Remove breather hose upper end (3) from fitting on front 7. Front cylinder head breather hose fitting
velocity stack (4). Figure 6-7. Breather Hose Assembly
COMPLETE
3. Pull breather hose assembly and press-in fitting (5) from
opening in air box (1).
1. Install air filter element. See INSPECT AIR FILTER
(Page 2-37).
INSTALL
2. Install air box cover. See AIR BOX (Page 6-3).
1. See Figure 6-7. Insert breather hose lower end (6) through
opening in air box (1).
3. Install intake air temp sensor connector. See AIR BOX
(Page 6-3).
2. Lubricate press-in breather hose fitting (5) with equal mix
of isopropyl alcohol and water.
4. Install fuel tank. See FUEL TANK (Page 6-13).
3. Insert press-in fitting into air box opening and press down
5. Install seat. See SEAT (Page 3-113).
until it snaps in place.
6. Install main fuse. See POWER DISCONNECT
4. Insert breather hose upper end (3) onto fitting on front
(Page 8-4).
velocity stack (4).
7. Turn ignition ON and check for fuel leaks.
