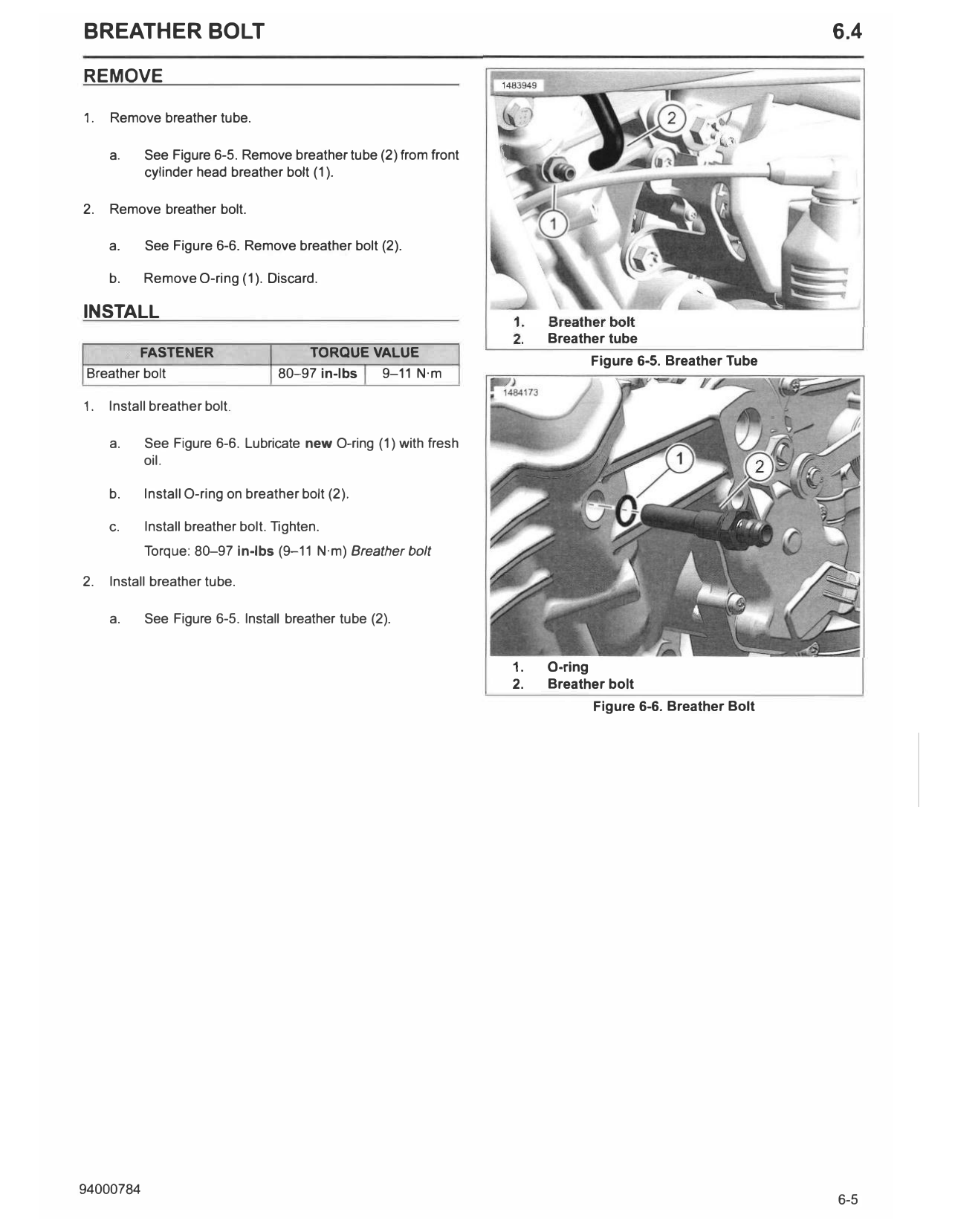

BREATHER BOLT                                                                                           6.4
REMOVE

1.   Remove breather tube.

     a.    See Figure 6-5. Remove breather tube (2) from front
           cylinder head breather bolt (1).

2.   Remove breather bolt.

     a.    See Figure 6-6. Remove breather bolt (2).

     b.    Remove O-ring (1). Discard.

INSTALL
                                                                      Breather tube
        FASTENER                      TORQUE VALUE
                                                                            Figure 6-5. Breather Tube
Breather bolt                     80-97 in-lbs 9-11 N·m

1.   Install breather bolt.

     a.    See Figure 6-6. Lubricate new O-ring (1) with fresh
           oil.

     b.    Install O-ring on breather bolt (2).

     c.    Install breather bolt. Tighten.
           Torque: 80-97 in-lbs (9-11 N·m) Breather bolt

2.   Install breather tube.

     a.    See Figure 6-5. Install breather tube (2).

                                                                 1.   0-ring
                                                                 2.   Breather bolt
                                                                            Figure 6-6. Breather Bolt
