6.6 Console

CONSOLE                                                                                                   6.6
REMOVE                                        INSTALL

1.     Remove seat. See SEAT (Page 3-113).            FASTENER                        TORQUE VALUE
                                              Console screws                      27-35 in-lbs 3-4 N·m
2.     See Figure 6-8. Remove screws (1).
                                              1.   See Figure 6-8. Install console tabs into tank slot (3).
3.     Lift and remove console (2).
                                              2.   Install console (2).
     1563621
                                              3.   Install screws (1). Tighten.
                                                   Torque: 27-35 in-lbs (3-4 N·m) Console screws

                                              4.   Install seat. See SEAT (Page 3-113).

       1.      Screws (2)
       2.      Console
       3.      Tank slot

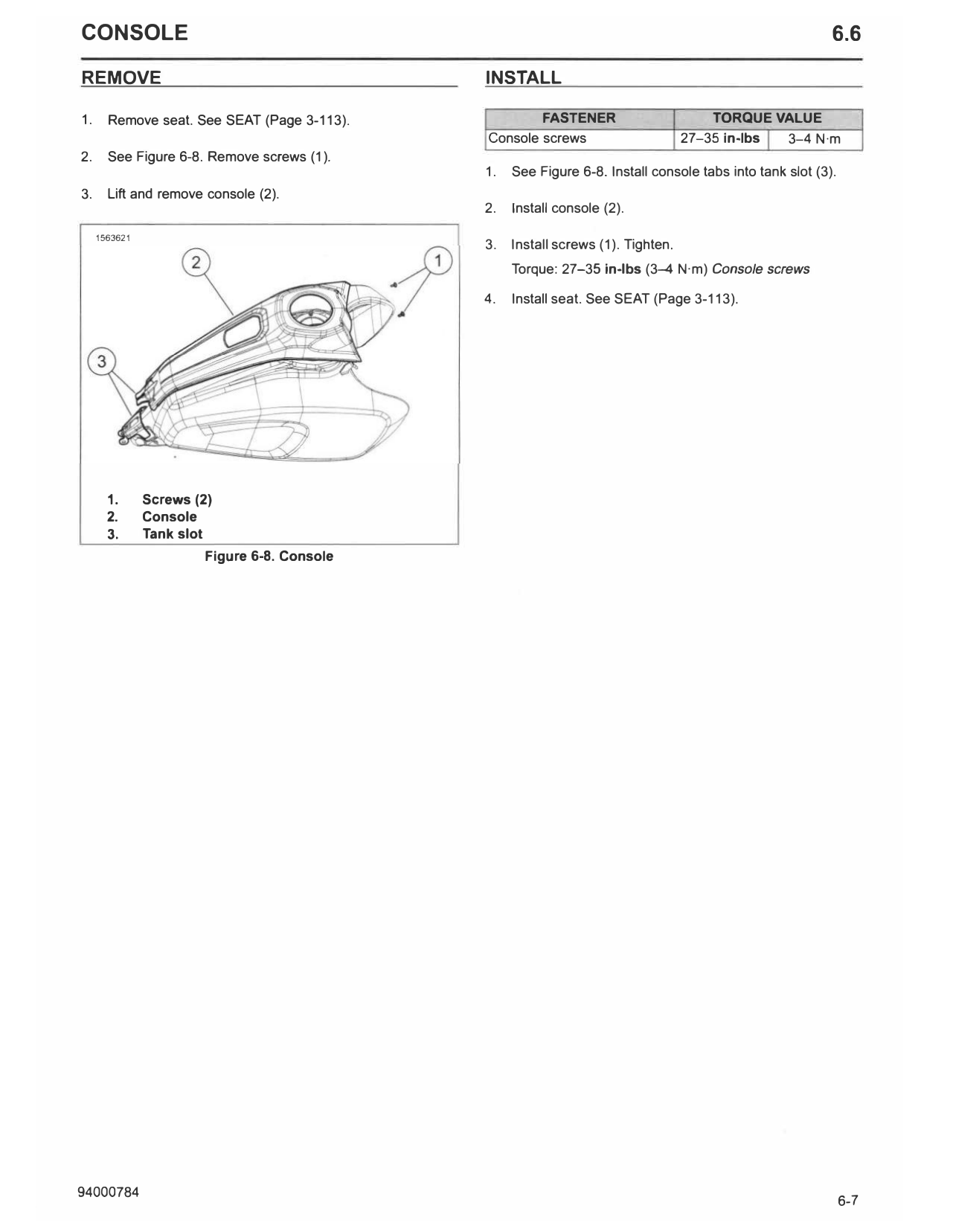

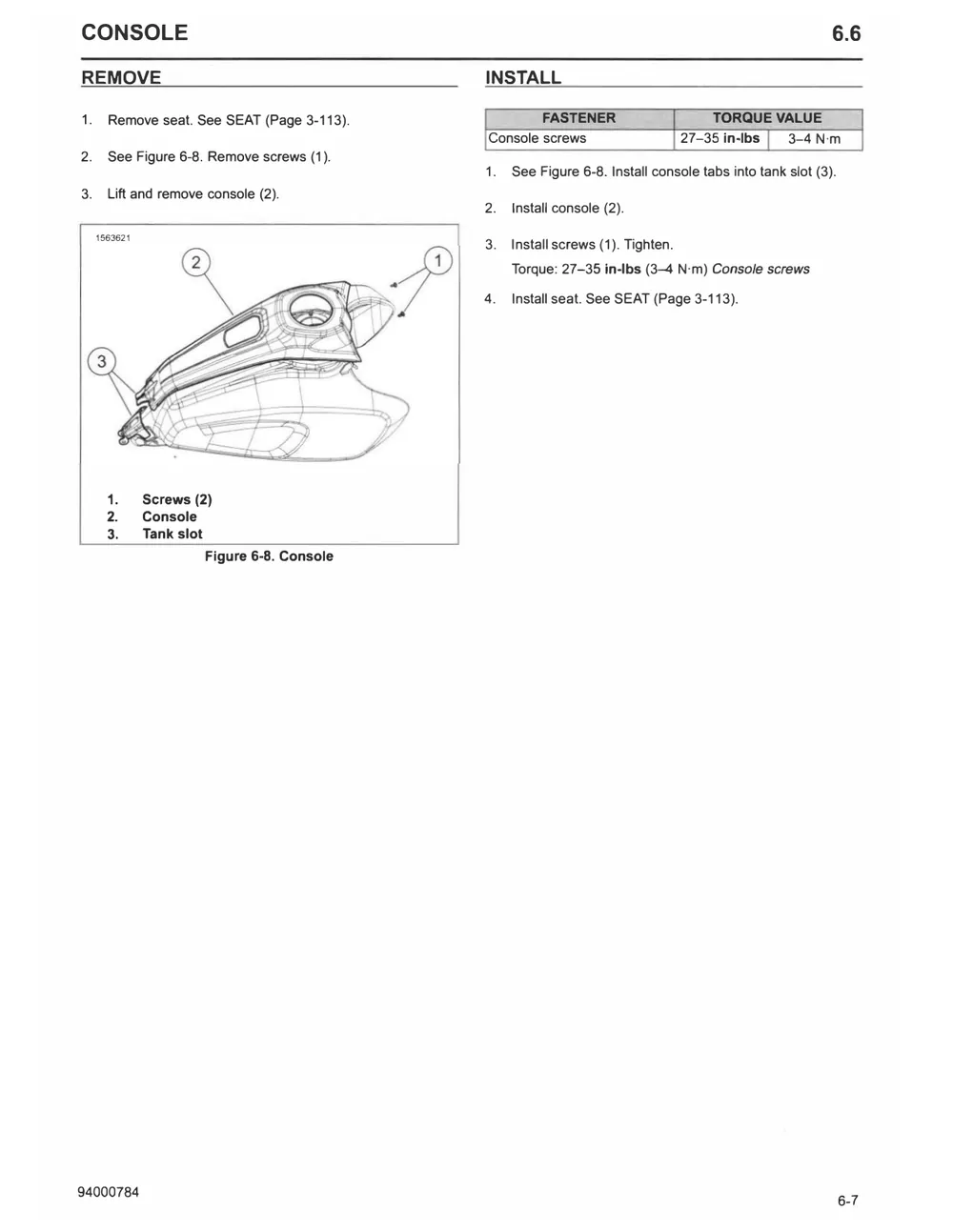

                        Figure 6-8. Console
