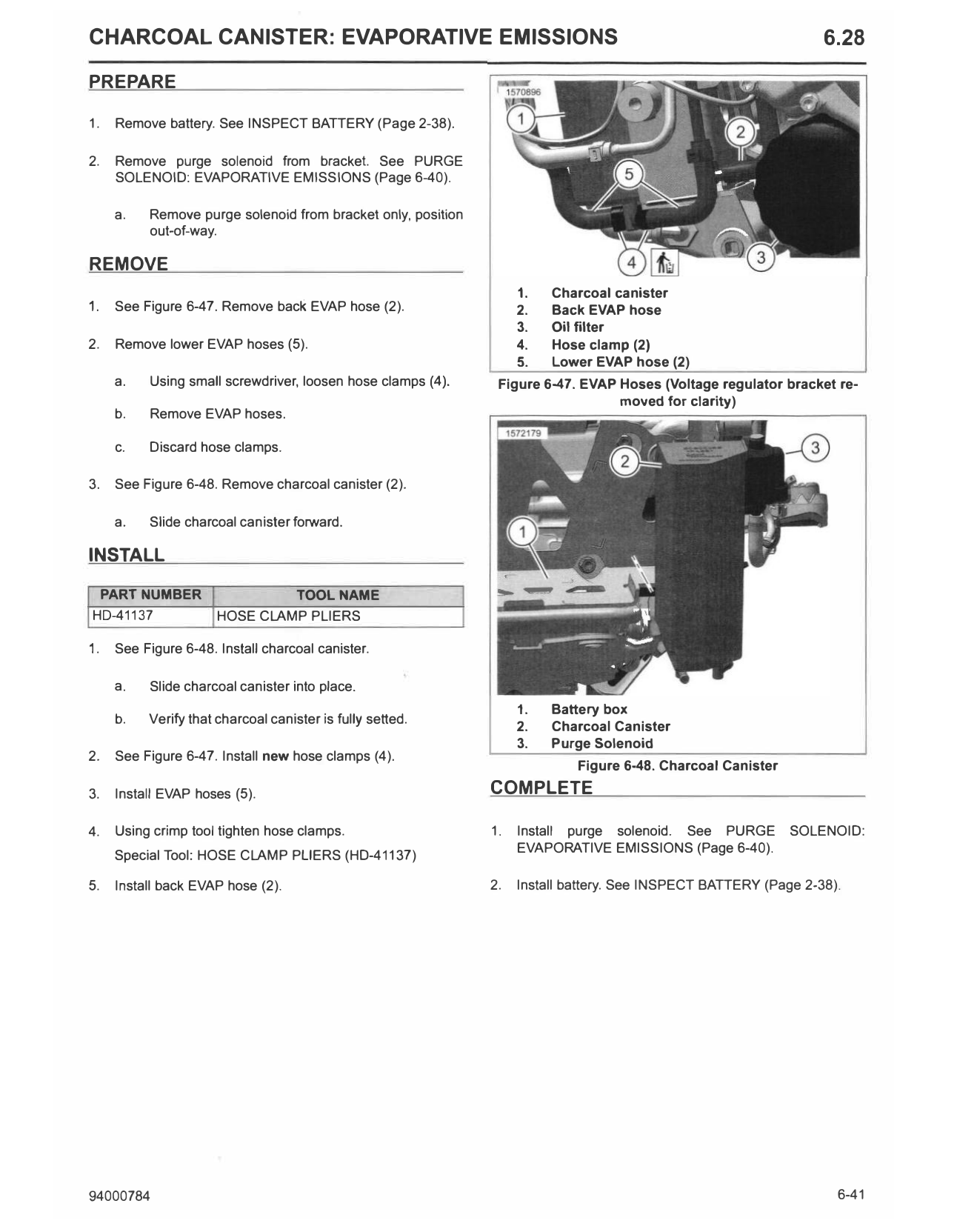

6.28 Charcoal Canister: Evaporative Emissions

CHARCOAL CANISTER: EVAPORATIVE EMISSIONS                                                                         6.28
PREPARE

1.   Remove battery. See INSPECT BATTERY (Page 2-38).

2.   Remove purge solenoid from bracket. See PURGE
     SOLENOID: EVAPORATIVE EMISSIONS (Page 6-40).

     a.   Remove purge solenoid from bracket only, position
          out-of-way.

REMOVE
                                                                   1.   Charcoal canister
1.   See Figure 6-47. Remove back EVAP hose (2).                   2.   Back EVAP hose
                                                                   3.   Oil filter
2.   Remove lower EVAP hoses (5).                                  4.   Hose clamp (2)
                                                                   5.   Lower EVAP hose (2)
     a.   Using small screwdriver, loosen hose clamps (4).     Figure 6-47. EVAP Hoses (Voltage regulator bracket re­
                                                                                 moved for clarity)
     b.   Remove EVAP hoses.

     c.   Discard hose clamps.

3.   See Figure 6-48. Remove charcoal canister (2).

     a.   Slide charcoal canister forward.

INSTALL

 PART NUMBER                   TOOL NAME
HD-41137              HOSE CLAMP PLIERS

1.   See Figure 6-48. Install charcoal canister.

     a.   Slide charcoal canister into place.
                                                                   1.   Battery box
     b.   Verify that charcoal canister is fully setted.
                                                                   2.   Charcoal Canister
                                                                   3.   Purge Solenoid
2.   See Figure 6-47. Install new hose clamps (4).
                                                                            Figure 6-48. Charcoal Canister

3.   Install EVAP hoses (5).                                  COMPLETE

4.   Using crimp tool tighten hose clamps.                    1.   Install purge solenoid. See PURGE         SOLENOID:
                                                                   EVAPORATIVE EMISSIONS (Page 6-40).
     Special Tool: HOSE CLAMP PLIERS (HD-41137)

5.   Install back EVAP hose (2).                              2.   Install battery. See INSPECT BATTERY (Page 2-38).
