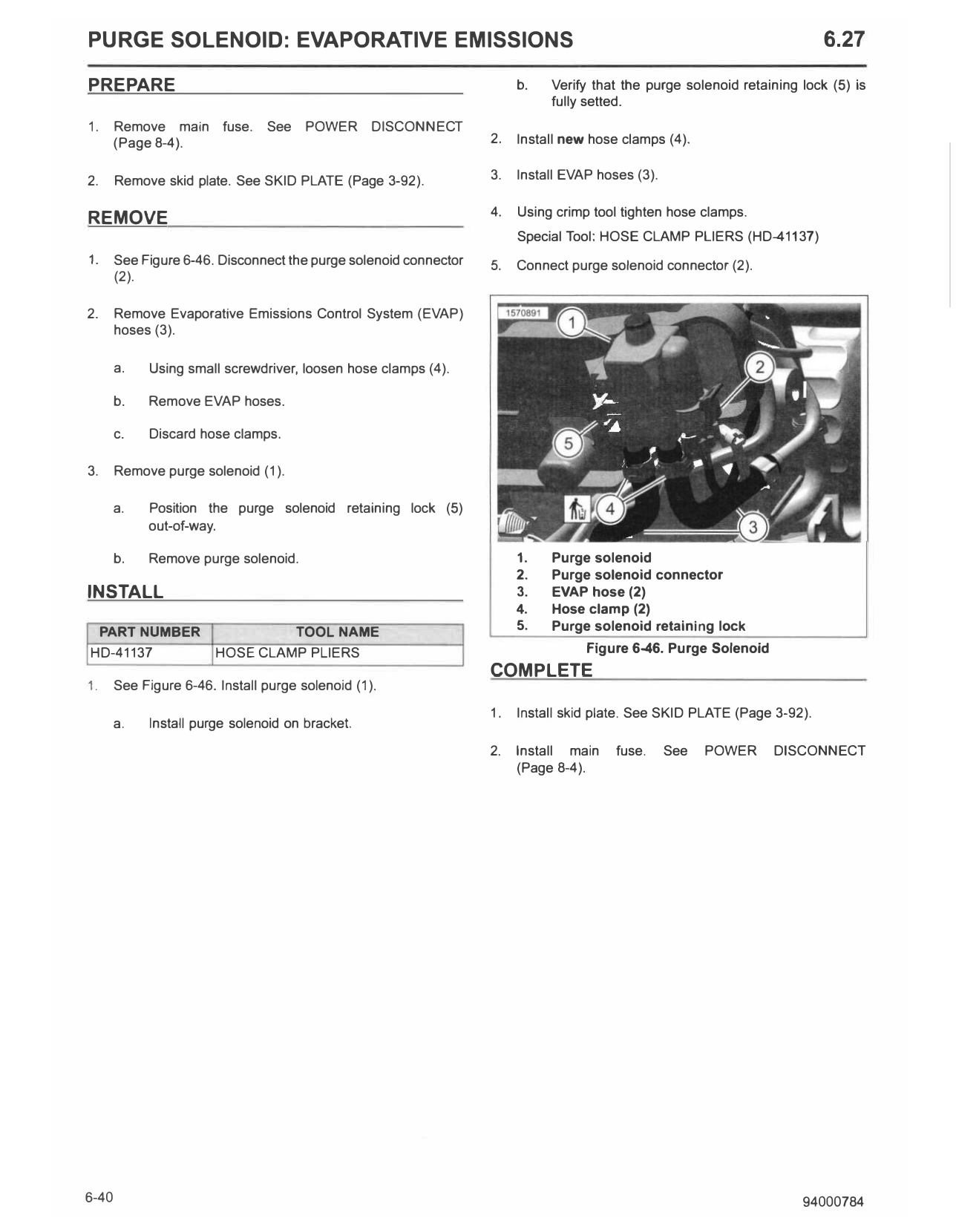

6.27 Purge Solenoid: Evaporative Emissions

PURGE SOLENOID: EVAPORATIVE EMISSIONS                                                                                    6.27

PREPARE                                                                b.   Verify that the purge solenoid retaining lock (5) is
                                                                            fully setted.
1.     Remove main fuse.         See   POWER DISCONNECT
       (Page 8-4).                                                2.   Install new hose clamps (4).

2.     Remove skid plate. See SKID PLATE (Page 3-92).             3.   Install EVAP hoses (3).

                                                                  4.   Using crimp tool tighten hose clamps.
REMOVE
                                                                       Special Tool: HOSE CLAMP PLIERS (HD-41137)
1.     See Figure 6-46. Disconnect the purge solenoid connector   5_   Connect purge solenoid connector (2).
       (2).

2.     Remove Evaporative Emissions Control System (EVAP)
       hoses (3).

       a.    Using small screwdriver, loosen hose clamps (4).

       b.   Remove EVAP hoses.

       c.    Discard hose clamps.

3.     Remove purge solenoid (1 ).

       a.    Position the purge solenoid retaining lock (5)
             out-of-way.

       b.   Remove purge solenoid.                                     1.   Purge solenoid
                                                                       2.   Purge solenoid connector
INSTALL                                                                3.   EVAP hose (2)
                                                                       4.   Hose clamp (2)
 PART NUMBER                     TOOL NAME                             5.   Purge solenoid retaining lock
HD-41137                HOSE CLAMP PLIERS                                         Figure 6-46. Purge Solenoid
                                                                  COMPLETE
1.     See Figure 6-46. Install purge solenoid (1 ).
                                                                  1.   Install skid plate. See SKID PLATE (Page 3-92).
       a.    Install purge solenoid on bracket.
                                                                  2.   Install main    fuse.     See   POWER    DISCONNECT
                                                                       (Page 8-4).

6-40                                                                                                                 94000784
