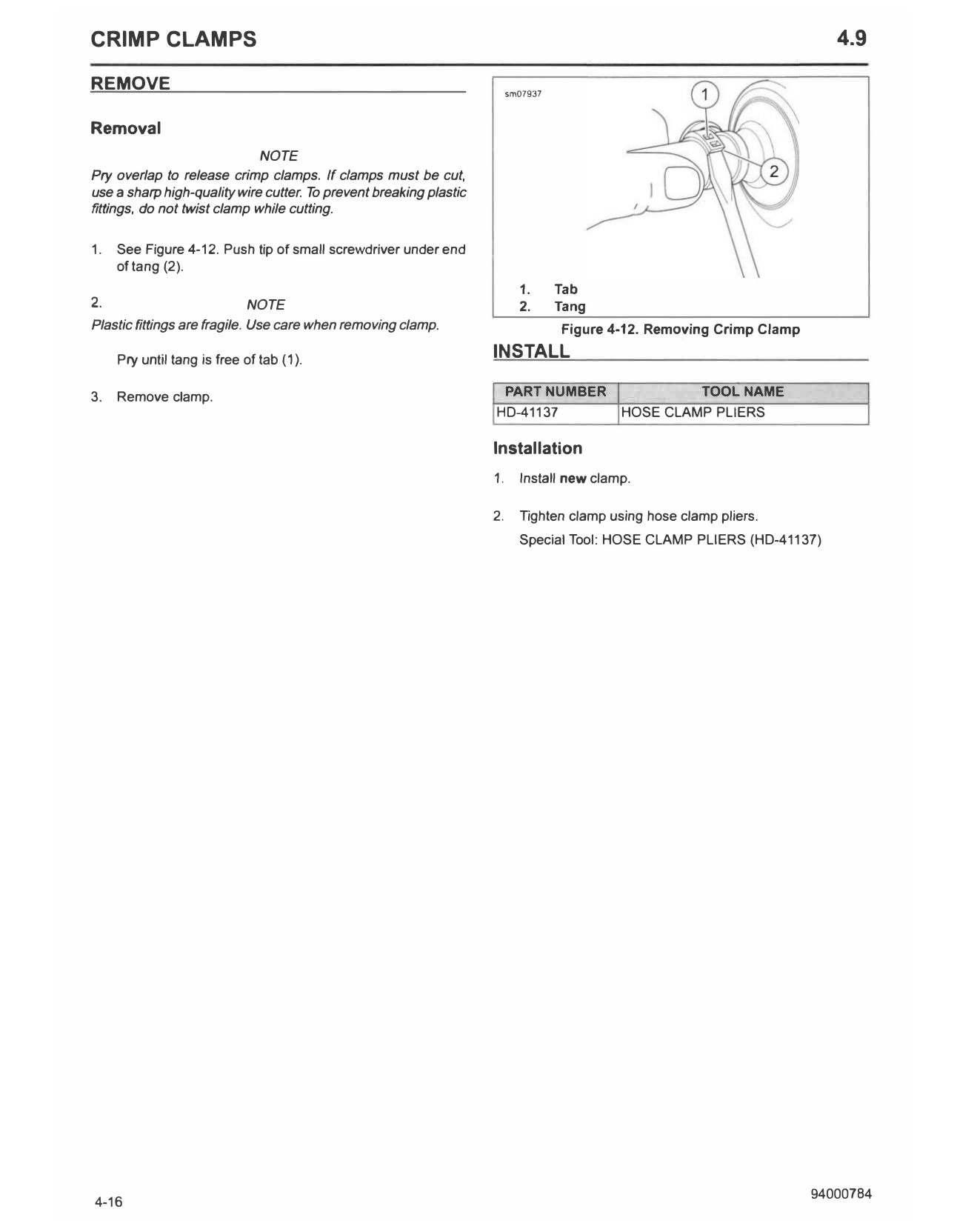

4.9 Crimp Clamps

CRIMP CLAMPS                                                                                                              4.9
REMOVE                                                                   sm07937

Removal
                                NOTE
Pry overlap to release crimp clamps. If clamps must be cut,
use a sharp high-quality wire cutter. To prevent breaking plastic
fittings, do not twist clamp while cutting.

1.   See Figure 4-12. Push tip of small screwdriver under end
     of tang (2).
                                                                           1.      Tab
2.                            NOTE                                         2.      Tang
Plastic fittings are fragile. Use care when removing clamp.                        Figure 4-12. Removing Crimp Clamp

     Pry until tang is free of tab ( 1 ).                           INSTALL

3.   Remove clamp.                                                   PART NUMBER                    TOOLNAME
                                                                    HD-41137               HOSE CLAMP PLIERS

                                                                    Installation
                                                                    1.     Install new clamp.

                                                                    2.     Tighten clamp using hose clamp pliers.
                                                                           Special Tool: HOSE CLAMP PLIERS (HD-41137)
