4.23 Starter Gear

STARTER GEAR                                                                                                      4.23

PREPARE

1.   Remove main         fuse.   See   POWER DISCONNECT
     (Page 8-4).

2.   Remove coolant manifold. See COOLANT MANIFOLD
     (Page 4-51 ).

3.   Remove electrical rotor. See ALTERNATOR (Page 8-8).

REMOVE

1.   See Figure 4-64. Remove screw (1 ).

2.   Remove starter gear (2).

INSTALL

          FASTENER                      TORQUE VALUE
Starter gear screw                  29-37 ft-lbs 39-50 N·m

1.   See Figure 4-64. Install starter gear (2).

2.   Install screw (1 ). Tighten.
     Torque: 29-37 ft-lbs (39-50 N·m) Starter gear screw

                                                                  1.   Screw
                                                                  2.   Starter gear

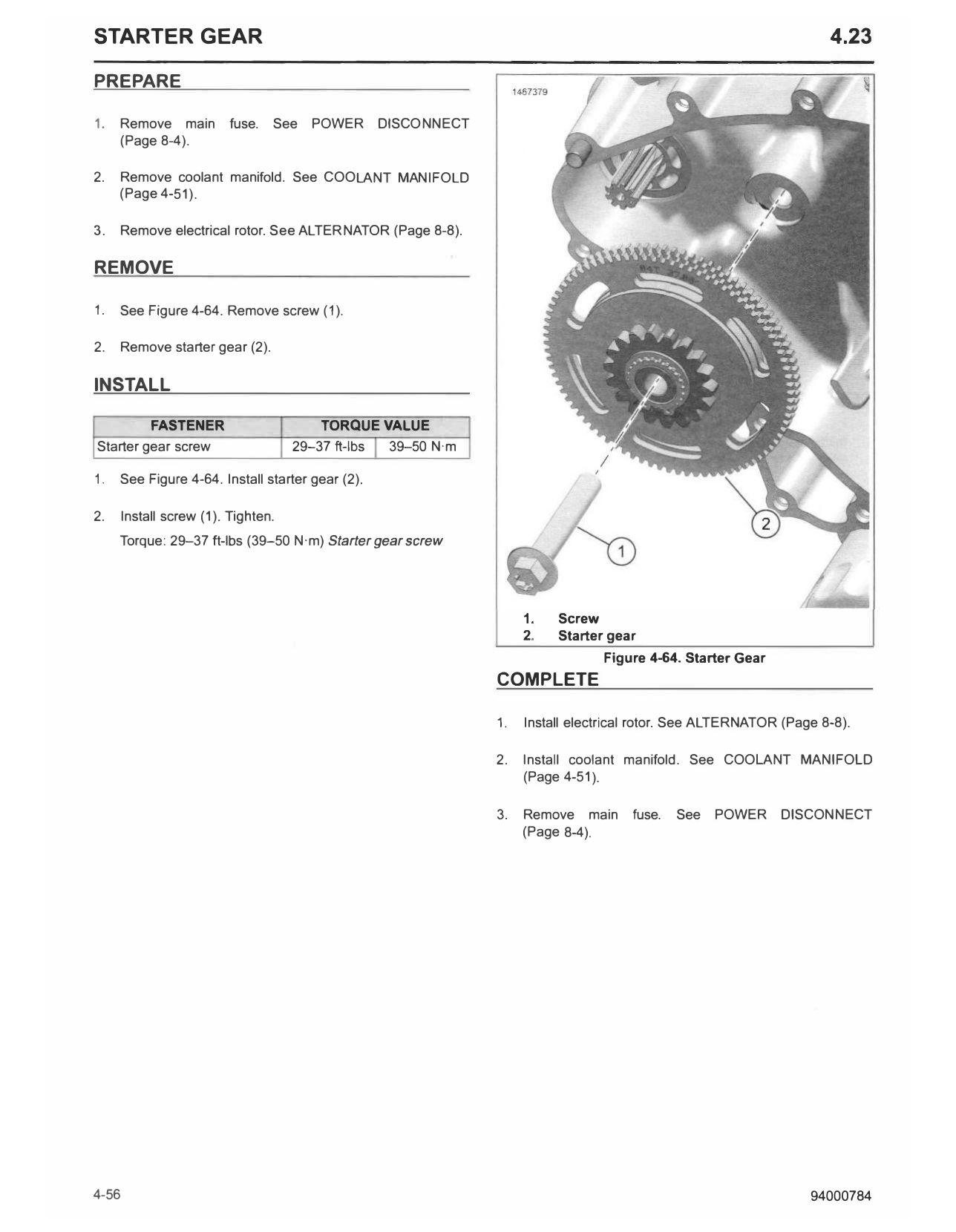

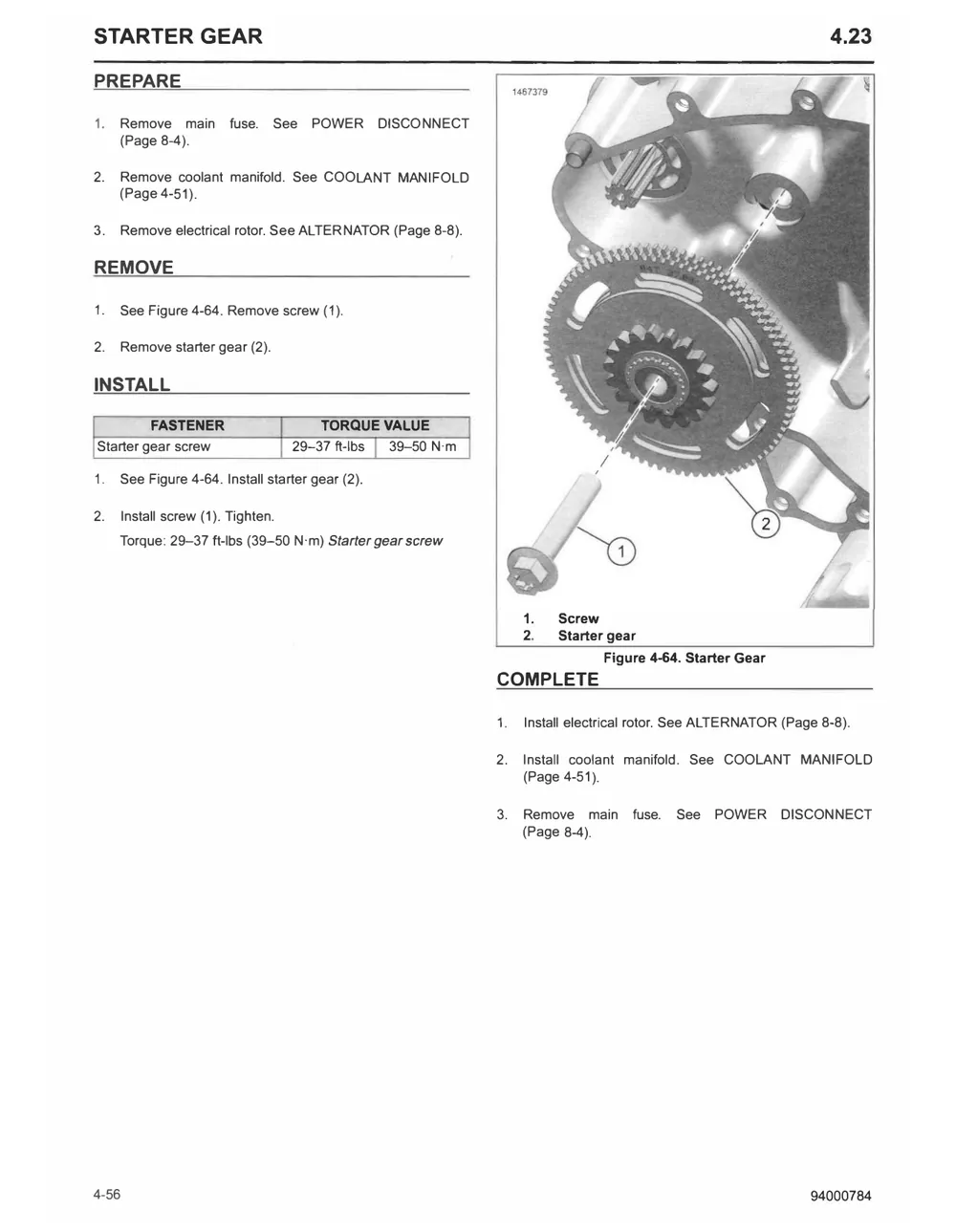

                                                                              Figure 4-64. Starter Gear
                                                             COMPLETE

                                                             1.   Install electrical rotor. See ALTERNATOR (Page 8-8).

                                                             2.   Install coolant manifold. See COOLANT MANIFOLD
                                                                  (Page 4-51 ).

                                                             3.   Remove main      fuse.   See   POWER DISCONNECT
                                                                  (Page 8-4).

4-56                                                                                                           94000784
