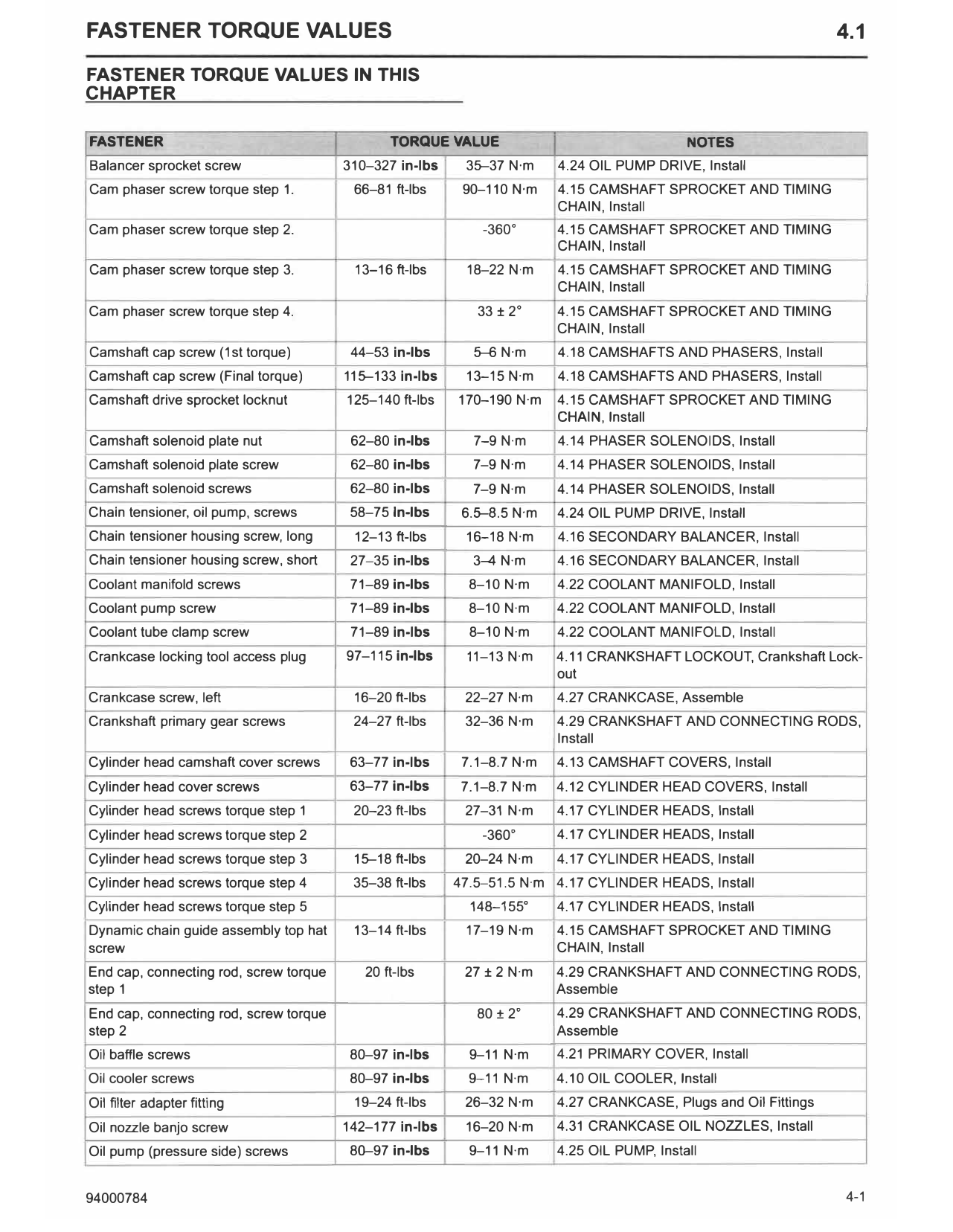

FASTENER TORQUE VALUES 4.1
FASTENER TORQUE VALUES IN THIS
CHAPTER
FASTENER TORQUE VALUE NOTES
Balancer sprocket screw 310-327 in-lbs 3�37 N·m 4.24 OIL PUMP DRIVE, Install
Cam phaser screw torque step 1. 66-81 ft-lbs 90-110 N·m 4.15 CAMSHAFT SPROCKET AND TIMING
CHAIN, Install
Cam phaser screw torque step 2. -360 ° 4.15 CAMSHAFT SPROCKET AND TIMING
CHAIN, Install
Cam phaser screw torque step 3. 13-16 ft-lbs 18-22 N·m 4.15 CAMSHAFT SPROCKET AND TIMING
CHAIN, Install
Cam phaser screw torque step 4. 33 ± 2 ° 4.15 CAMSHAFT SPROCKET AND TIMING
CHAIN, Install
Camshaft cap screw (1st torque) 44-53 in-lbs �N·m 4.18 CAMSHAFTS AND PHASERS , Install
Camshaft cap screw (Final torque) 11�133 in-lbs 13-15 N·m 4.18 CAMSHAFTS AND PHASERS, Install
Camshaft drive sprocket locknut 125-140 ft-lbs 170-190 N·m 4.15 CAMSHAFT SPROCKET AND TIMING
CHAIN, Install
Camshaft solenoid plate nut 62-80 in-lbs 7-9 N·m 4.14 PHASER SOLENOIDS, Install
Camshaft solenoid plate screw 62-80 in-lbs 7-9 N·m 4.14 PHASER SOLENOIDS, Install
Camshaft solenoid screws 62-80 in-lbs 7-9 N·m 4.14 PHASER SOLENOIDS, Install
Chain tensioner, oil pump, screws 58-75 in-lbs 6.�.5 N·m 4.24 OIL PUMP DRIVE, Install
Chain tensioner housing screw, long 12-13 ft-lbs 16-18 N·m 4.16 SECONDARY BALANCER, Install
Chain tensioner housing screw, short 27-35 in-lbs 3--4 N·m 4.16 SECONDARY BALANCER, Install
Coolant manifold screws 71-89 in-lbs 8-10 N·m 4.22 COOLANT MANIFOLD, Install
Coolant pump screw 71-89 in-lbs 8-10 N·m 4.22 COOLANT MANIFOLD, Install
Coolant tube clamp screw 71-89 in-lbs 8-10 N·m 4.22 COOLANT MANIFOLD, Install
Crankcase locking tool access plug 97-115 in-lbs 11-13 N·rn 4.11 CRANKSHAFT LOCKOUT, Crankshaft Lock-
out
Crankcase screw, left 16-20 ft-lbs 22-27 N·m 4.27 CRANKCASE, Assemble
Crankshaft primary gear screws 24-27 ft-lbs 32-36 N·m 4.29 CRANKSHAFT AND CONNECTING RODS,
Install
Cylinder head camshaft cover screws 63-77 in-lbs 7.1-8.7 N·m 4.13 CAMSHAFT COVERS, Install
Cylinder head cover screws 63-77 in-lbs 7.1-8.7 N·m 4.12 CYLINDER HEAD COVERS, Install
Cylinder head screws torque step 1 20-23 ft-lbs 27-31 N·m 4.17 CYLINDER HEADS, Install
°
Cylinder head screws torque step 2 -360 4.17 CYLINDER HEADS, Install
Cylinder head screws torque step 3 1�18 ft-lbs 20-24 N·m 4.17 CYLINDER HEADS, Install
Cylinder head screws torque step 4 35-38 ft-lbs 47.5-51.5 N·m 4.17 CYLINDER HEADS, Install
°
Cylinder head screws torque step 5 148-155 4.17 CYLINDER HEADS, Install
Dynamic chain guide assembly top hat 13-14 ft-lbs 17-19 N·m 4.15 CAMSHAFT SPROCKET AND TIMING
screw CHAIN, Install
End cap, connecting rod, screw torque 20 ft-lbs 27 ± 2 N·m 4.29 CRANKSHAFT AND CONNECTING RODS,
step 1 Assemble
End cap, connecting rod, screw torque 80 ± 2 ° 4.29 CRANKSHAFT AND CONNECTING RODS,
step 2 Assemble
Oil baffle screws 80-97 in-lbs 9-11 N·m 4.21 PRIMARY COVER, Install
Oil cooler screws 80-97 in-lbs 9-11 N·m 4.10 OIL COOLER, Install
Oil filter adapter fitting 19-24 ft-lbs 26-32 N·m 4.27 CRANKCASE, Plugs and Oil Fittings
Oil nozzle banjo screw 142-177 in-lbs 16-20 N·m 4.31 CRANKCASE OIL NOZZLES, Install
Oil pump (pressure side) screws 80-97 in-lbs 9-11 N·m 4.25 OIL PUMP, Install
94000784 4-1

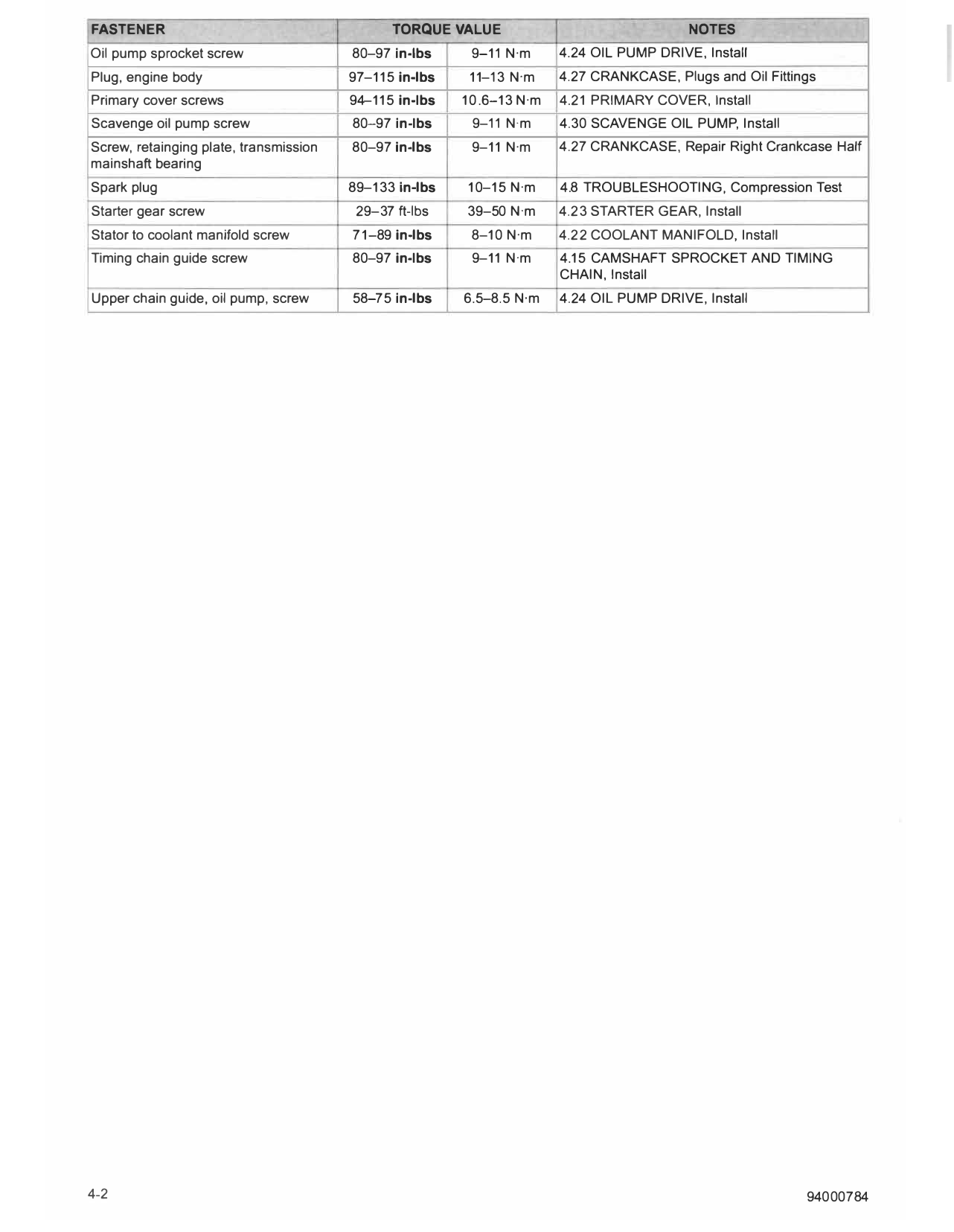

FASTENER TORQUE VALUE NOTES
Oil pump sprocket screw 80-97 in-lbs 9-11 N·m 4.24 OIL PUMP DRIVE, Install
Plug, engine body 97-115 in-lbs 11-13 N·m 4.27 CRANKCASE, Plugs and Oil Fittings
Primary cover screws 94-115 in-lbs 10.6-13 N·m 4.21 PRIMARY COVER, Install
Scavenge oil pump screw 80-97 in-lbs 9-11 N·m 4.30 SCAVENGE OIL PUMP, Install
Screw, retainging plate, transmission 80-97 in-lbs 9-11 N·m 4.27 CRANKCASE, Repair Right Crankcase Half
mainshaft bearing
Spark plug 89-133 in-lbs 10-15 N·m 4.8 TROUBLESHOOTING, Compression Test
Starter gear screw 29-37 ft-lbs 39-50 N·m 4.23 STARTER GEAR, Install
Stator to coolant manifold screw 71-89 in-lbs 8 -10 N·m 4.22 COOLANT MANIFOLD, Install
Timing chain guide screw 80-97 in-lbs 9-11 N·m 4.15 CAMSHAFT SPROCKET AND TIMING
CHAIN, Install
Upper chain guide, oil pump, screw 58-75 in-lbs 6.5-8.5 N·m 4.24 OIL PUMP DRIVE, Install
