3.49 Frame Crossmember

FRAME CROSSMEMBER                                                                                                   3.49

PREPARE

1.   Remove seat. See SEAT (Page 3-113).

2.   Remove fuel tank mounting bracket bolt and fuel tank
     mounting screws. See FUEL TANK (Page 6-13).

3.   Remove middle side covers. See SIDE COVERS
     (Page 3-52).

REMOVE

1.   See Figure 3-156. Remove crossmember.

     a.   Slightly raise fuel tank (1).                             1.   Fuel tank
                                                                    2.   Frame crossmember
     b.   Remove crossmember (2).                                   3.   Fuel tank mounting bushing
                                                                    4.   Fuel tank mount grommet

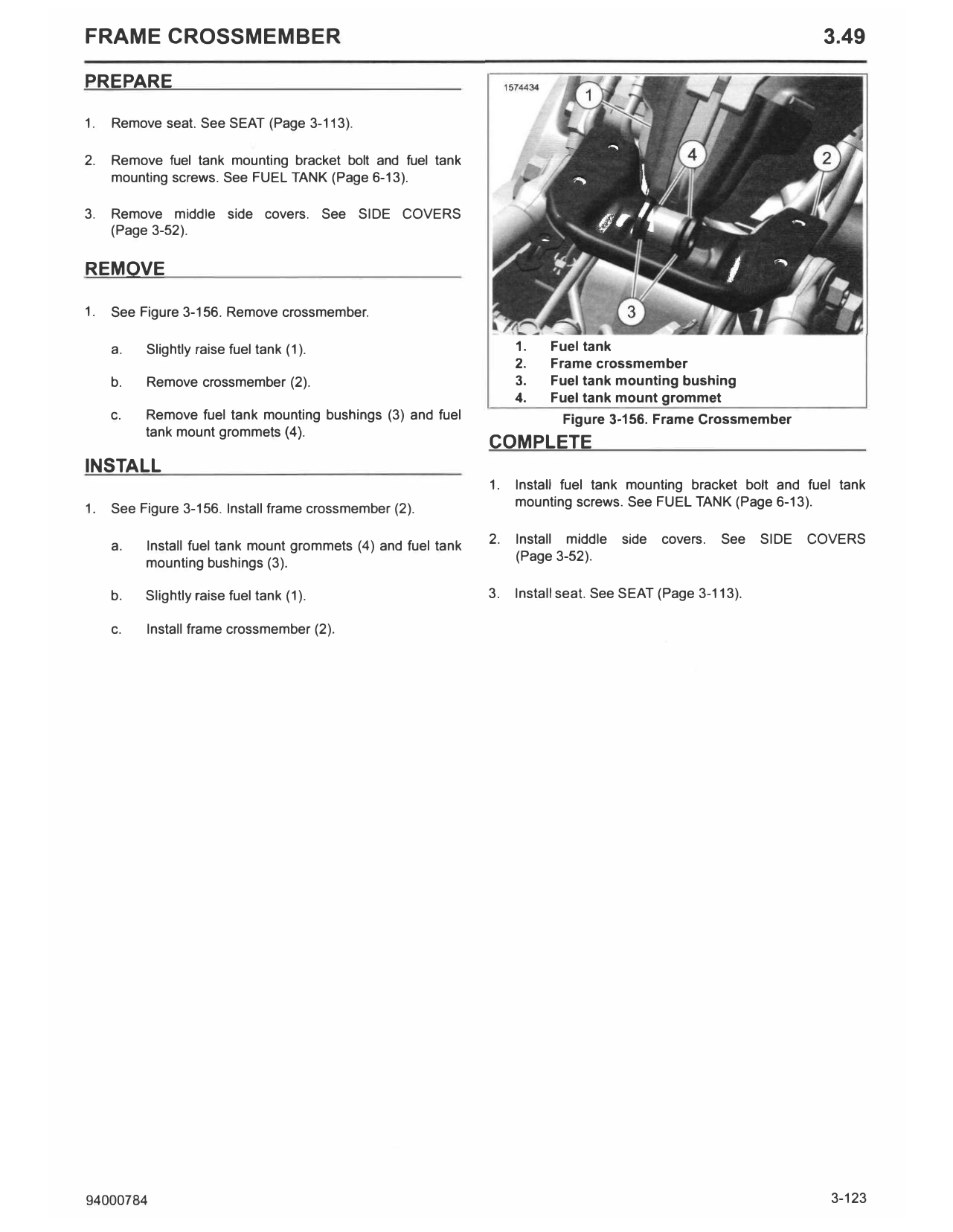

     c.   Remove fuel tank mounting bushings (3) and fuel                  Figure 3-156. Frame Crossmember
          tank mount grommets (4).
                                                               COMPLETE
INSTALL
                                                               1.   Install fuel tank mounting bracket bolt and fuel tank
1.   See Figure 3-156. Install frame crossmember (2).               mounting screws. See FUEL TANK (Page 6-13).

     a.   Install fuel tank mount grommets (4) and fuel tank   2.   Install middle   side   covers.   See   SIDE   COVERS
                                                                    (Page 3-52).
          mounting bushings (3).

     b.   Slightly raise fuel tank (1).                        3.   Install seat. See SEAT (Page 3-113).

     c.   Install frame crossmember (2).

94000784                                                                                                             3-123
