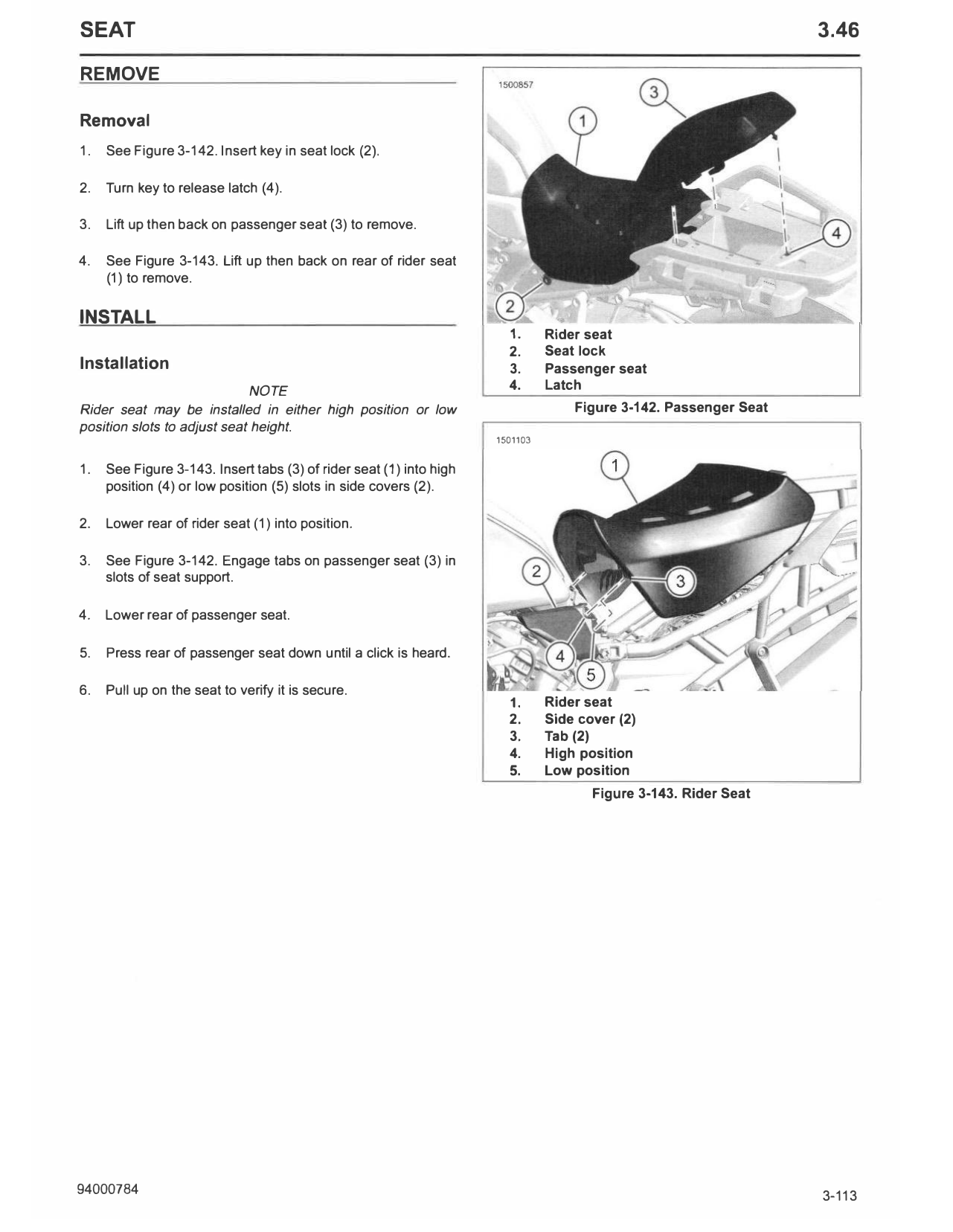

SEAT 3.46
REMOVE
Removal
1. See Figure 3-142. Insert key in seat lock (2).
2. Turn key to release latch (4).
3. Lift up then back on passenger seat (3) to remove.
4. See Figure 3-143. Lift up then back on rear of rider seat
(1) to remove.
INSTALL
1. Rider seat
2. Seat lock
Installation 3. Passenger seat
NOTE 4. Latch
Rider seat may be installed in either high position or low Figure 3-142. Passenger Seat
position slots to adjust seat height.
1501103
1. See Figure 3-143. Insert tabs (3) of rider seat (1) into high
position (4) or low position (5) slots in side covers (2).
2. Lower rear of rider seat (1) into position.
3. See Figure 3-142. Engage tabs on passenger seat (3) in
slots of seat support.
4. Lower rear of passenger seat.
5. Press rear of passenger seat down until a click is heard.
6. Pull up on the seat to verify it is secure.
1. Rider seat
2. Side cover (2)
3. Tab (2)
4. High position
5. Low position
Figure 3-143. Rider Seat
94000784 3-113
