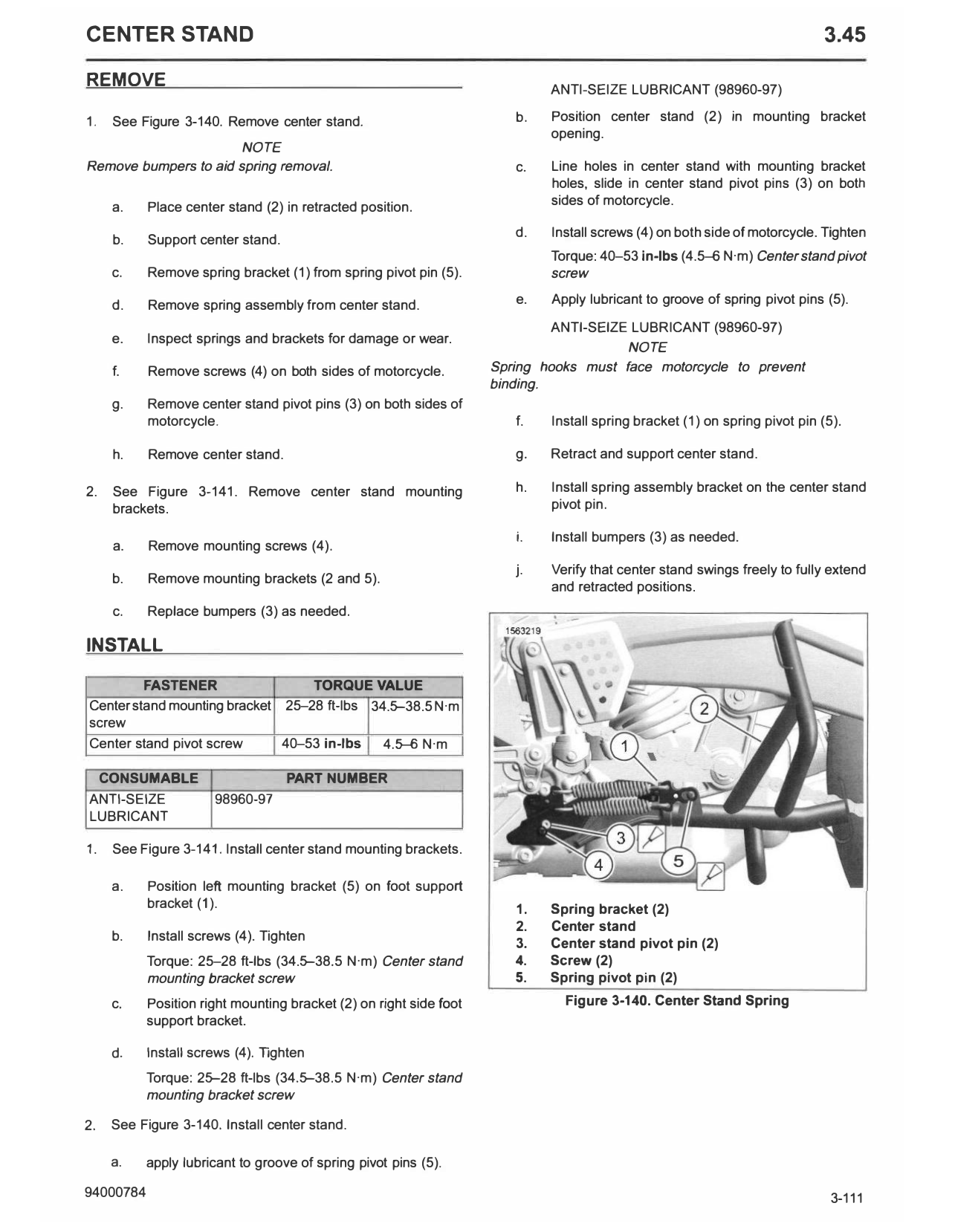

3.45 Center Stand

CENTER STAND                                                                                                               3.45

REMOVE                                                                      ANTI-SEIZE LUBRICANT (98960-97)

1.   See Figure 3-140. Remove center stand.                            b.   Position center stand (2) in mounting bracket
                                                                            opening.
                      NOTE
Remove bumpers to aid spring removal.                                  c.   Line holes in center stand with mounting bracket
                                                                            holes, slide in center stand pivot pins (3) on both
                                                                            sides of motorcycle.
     a.    Place center stand (2) in retracted position.
                                                                       d.   Install screws (4) on both side of motorcycle. Tighten
     b.    Support center stand.
                                                                            Torque: 40-53 in-lbs (4.5-6 N·m) Center stand pivot
     c.    Remove spring bracket (1) from spring pivot pin (5).             screw

     d.    Remove spring assembly from center stand.                   e.   Apply lubricant to groove of spring pivot pins (5).

                                                                             ANT I-SEIZE LUBRICANT (98960-97)
     e.    Inspect springs and brackets for damage or wear.
                                                                                        NOTE
     f.    Remove screws (4) on both sides of motorcycle.           Spring hooks must face motorcycle to prevent
                                                                    binding.
     g.    Remove center stand pivot pins (3) on both sides of
           motorcycle.                                                 f.   Install spring bracket (1) on spring pivot pin (5).

     h.    Remove center stand.                                        g.   Retract and support center stand.

2.   See Figure 3-141. Remove center stand mounting                    h.   Install spring assembly bracket on the center stand
     brackets.                                                              pivot pin.

                                                                       i.   Install bumpers (3) as needed.
     a.    Remove mounting screws (4).
                                                                       j.   Verify that center stand swings freely to fully extend
     b.    Remove mounting brackets (2 and 5).
                                                                            and retracted positions.
     c.    Replace bumpers (3) as needed.

INSTALL
         FASTENER                 TORQUE VALUE
Center stand mounting bracket 25-28 ft-lbs 34.5-38.5 N·m
screw
Center stand pivot screw      40-53 in-lbs   4.5-6 N·m

 CONSUMABLE                        PART NUMBER
ANTI-SEIZE            98960-97
LUBRICANT

1.   See Figure 3-141. Install center stand mounting brackets.

     a.    Position left mounting bracket (5) on foot support
           bracket ( 1 ).                                              1.   Spring bracket (2)
                                                                       2.   Center stand
     b.    Install screws (4). Tighten
                                                                       3.   Center stand pivot pin (2)
           Torque: 25-28 ft-lbs (34.5-38.5 N·m) Center stand           4.   Screw (2)
           mounting bracket screw                                      5.   Spring pivot pin (2)
     c.    Position right mounting bracket (2) on right side foot             Figure 3-140. Center Stand Spring
           support bracket.

     d.    Install screws (4). Tighten
           Torque: 25-28 ft-lbs (34.5-38.5 N·m) Center stand
           mounting bracket screw

2.   See Figure 3-140. Install center stand.

     a.    apply lubricant to groove of spring pivot pins (5).

94000784                                                                                                                     3-111

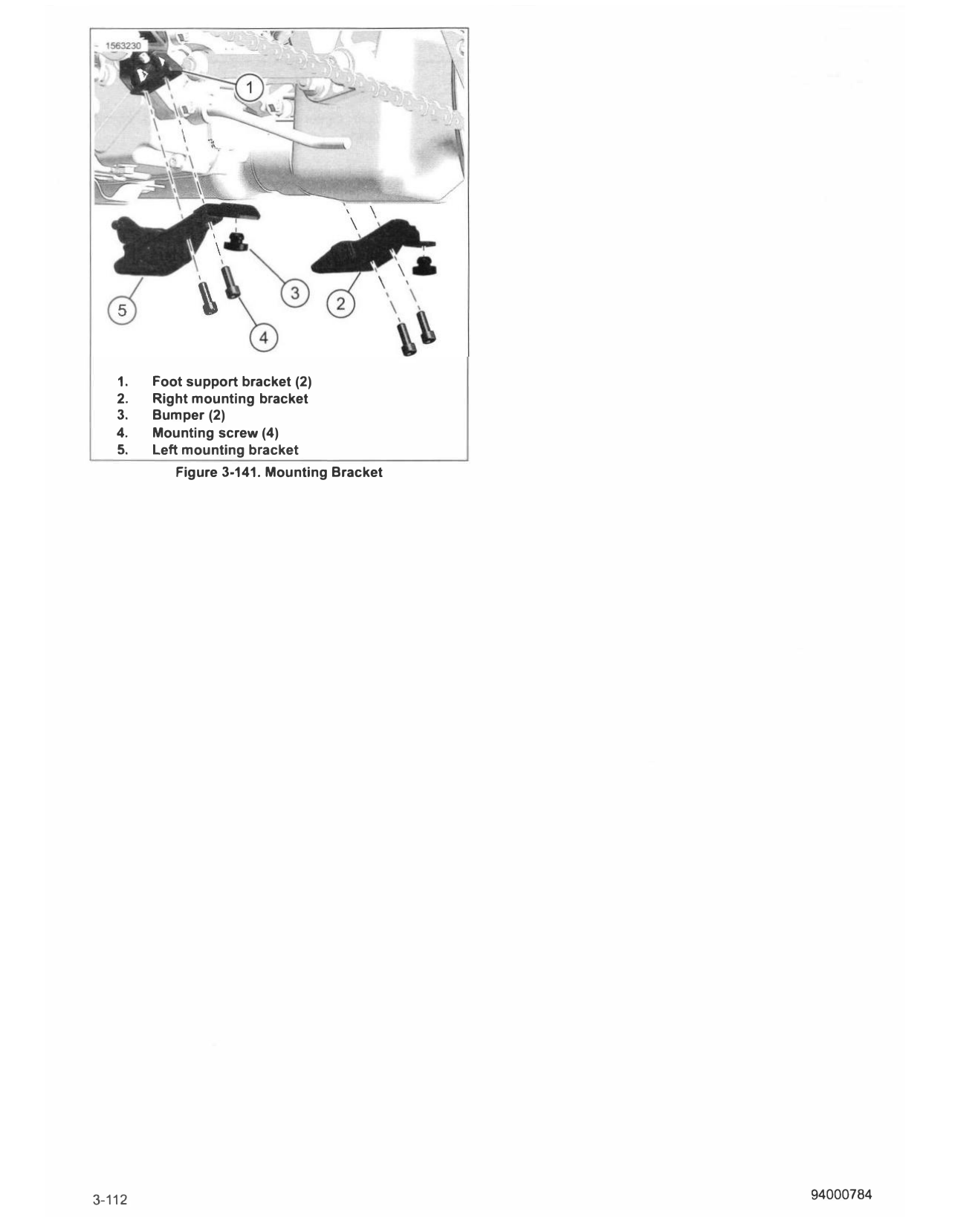

   1.   Foot support bracket (2)
   2.   Right mounting bracket
   3.   Bumper (2)
   4.   Mounting screw (4)
   5.   Left mounting bracket
           Figure 3-141. Mounting Bracket

3-112                                       94000784
