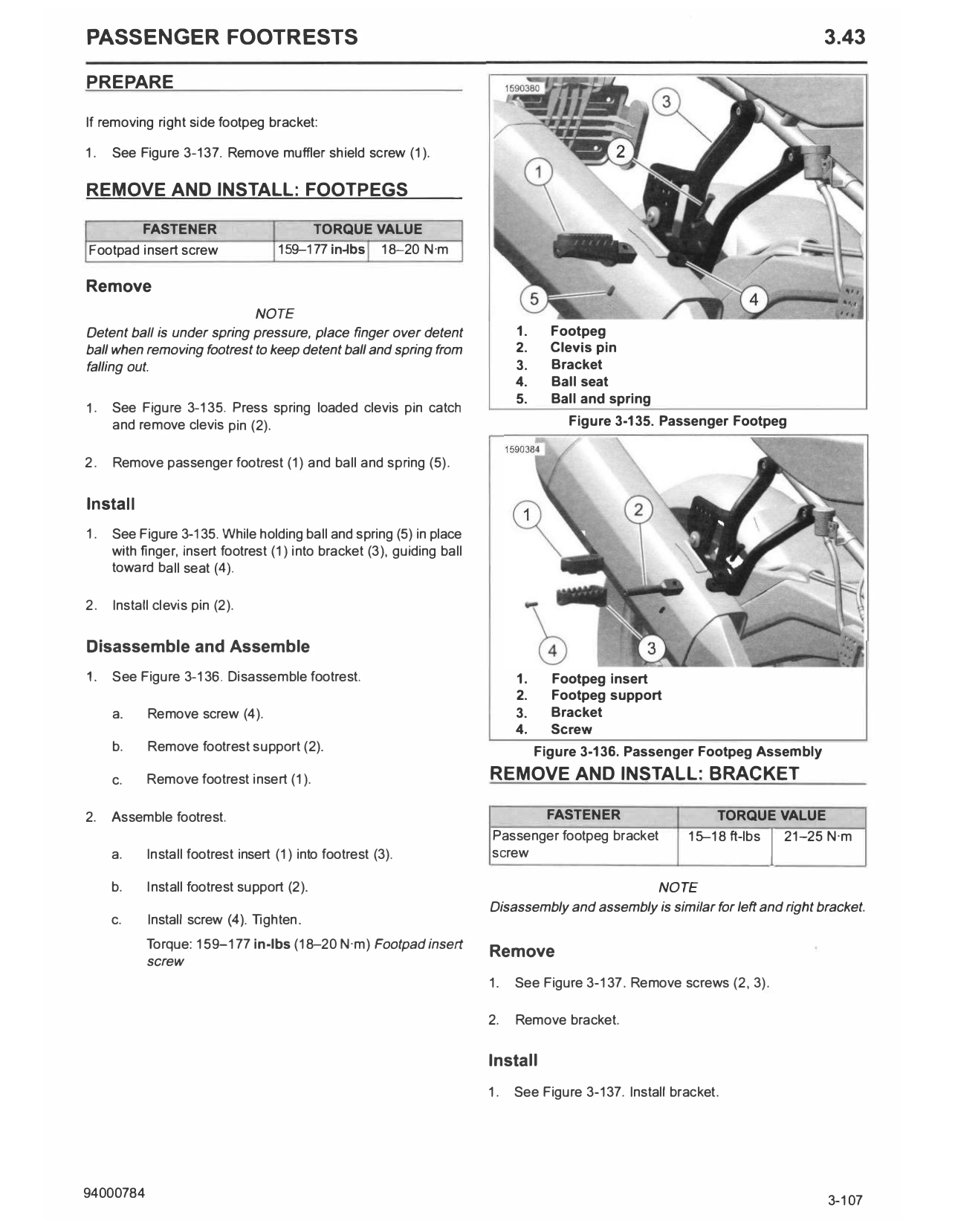

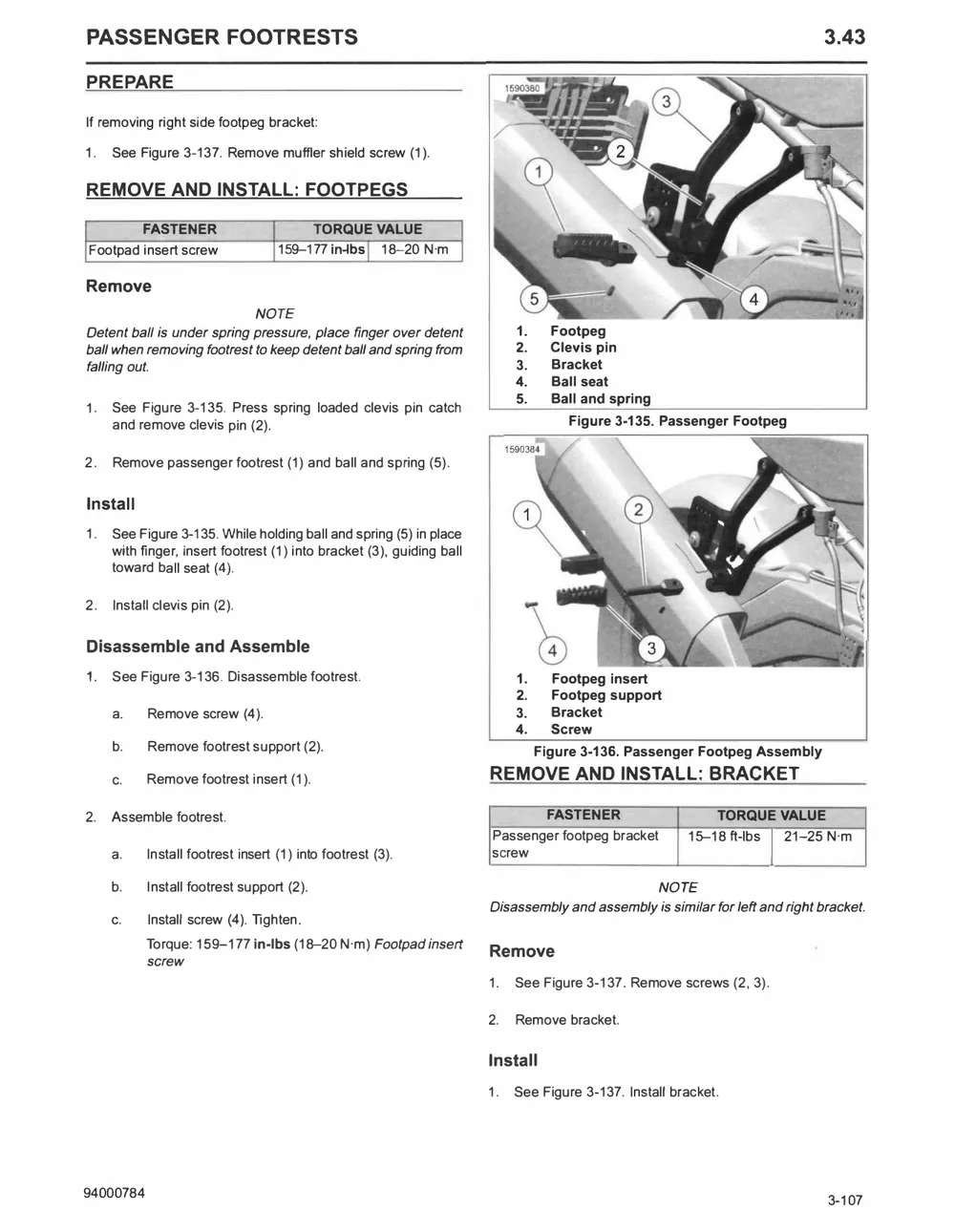

3.43 Passenger Footrests

PASSENGER FOOTRESTS                                                                                                            3.43

PREPARE

If removing right side footpeg bracket:

1.   See Figure 3-137. Remove muffler shield screw (1).

REMOVE AND INSTALL: FOOTPEGS

        FASTENER                        TORQUE VALUE
Footpad insert screw               159-177in-lbs 18-20 N·m

Remove
                            NOTE
Oetent ball is under spring pressure, place finger over detent              1.     Footpeg
ball when removing footrest to keep detent ball and spring from             2.     Clevis pin
falling out.                                                                3.     Bracket
                                                                            4.     Ball seat
                                                                            5.     Ball and spring
1.   See Figure 3-135. Press spring loaded clevis pin catch
     and remove clevis pin (2).                                                      Figure 3-135. Passenger Footpeg

2.   Remove passenger footrest (1) and ball and spring (5).

Install
1.   See Figure 3-135. While holding ball and spring (5) in place
     with finger, insert footrest (1) into bracket (3), guiding ball
     toward ball seat (4).

2.   Install clevis pin (2).

Disassemble and Assemble
1.   See Figure 3-136. Disassemble footrest.                                1.     Footpeg insert
                                                                            2.     Footpeg support
     a.    Remove screw (4).                                                3.     Bracket
                                                                            4.     Screw
     b.    Remove footrest support (2).                                          Figure 3-136. Passenger Footpeg Assembly
     c.    Remove footrest insert (1).                                 REMOVE AND INSTALL: BRACKET

2.   Assemble footrest.                                                       FASTENER                       TORQUE VALUE
                                                                       Passenger footpeg bracket        15--18 ft-lbs   21-25 N·m
                                                                       screw                                          I
     a.    Install footrest insert (1) into footrest (3).

     b.    Install footrest support (2).                                                       NOTE
                                                                       Disassembly and assembly is similar for left and right bracket.
     c.    Install screw (4). Tighten.
           Torque: 159-177 in-lbs (18-20 N·m) Footpad insert
           screw
                                                                       Remove
                                                                       1.   See Figure 3-137. Remove screws (2, 3).

                                                                       2.   Remove bracket.

                                                                       Install
                                                                       1.   See Figure 3-137. Install bracket.

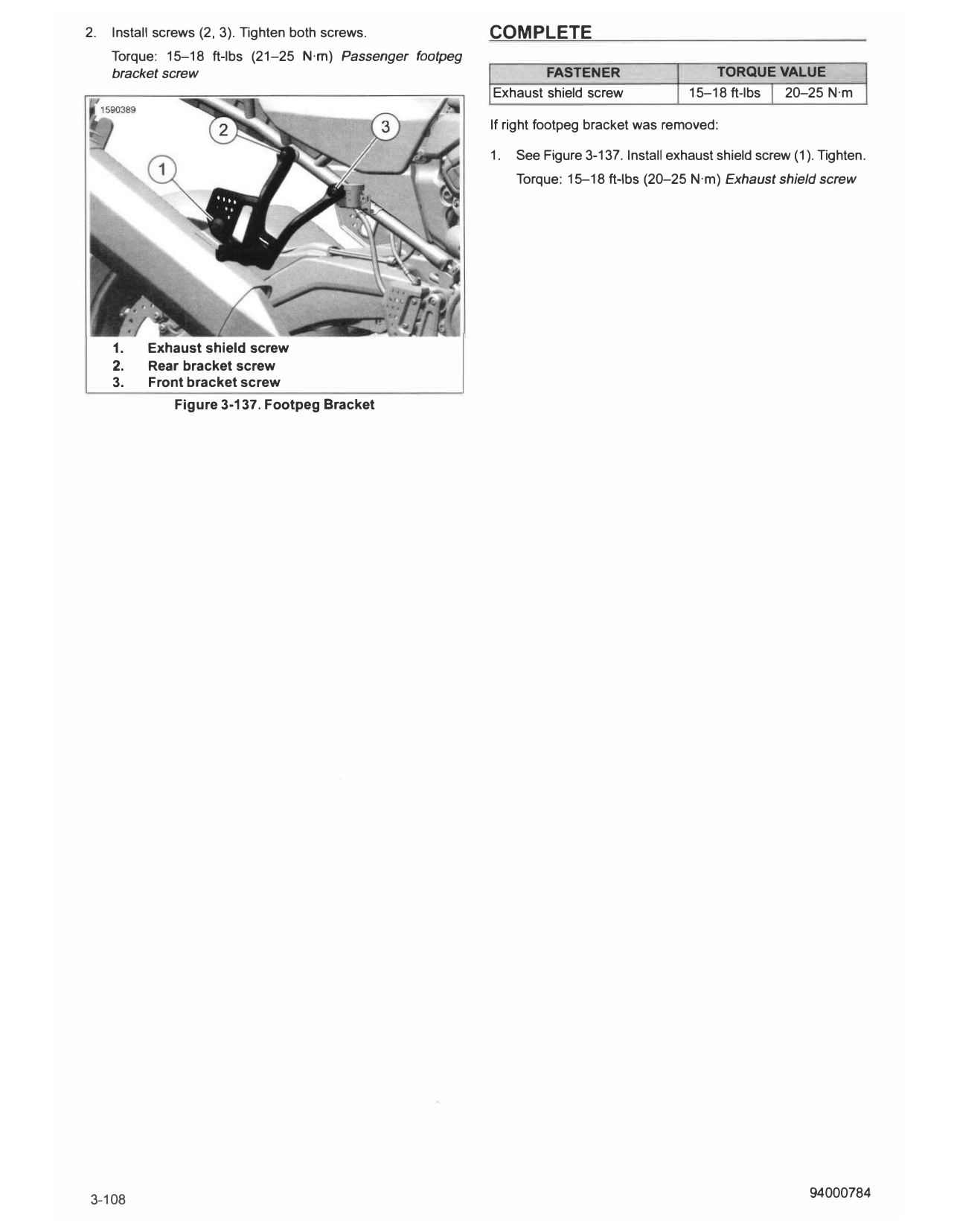

2.   Install screws (2, 3). Tighten both screws.           COMPLETE
     Torque: 15--18 ft-lbs (21-25 N·m) Passenger footpeg
     bracket screw                                                 FASTENER                      TORQUE VALUE
                                                           Exhaust shield screw              15-18 ft-lbs 20-25 N·m

                                                           If right footpeg bracket was removed:

                                                           1.   See Figure 3-137. Install exhaust shield screw (1). Tighten.
                                                                Torque: 15-18 ft-lbs (20-25 N·m) Exhaust shield screw

     1.   Exhaust shield screw
     2.   Rear bracket screw
     3.   Front bracket screw
               Figure 3-137. Footpeg Bracket

3-108                                                                                                             94000784
