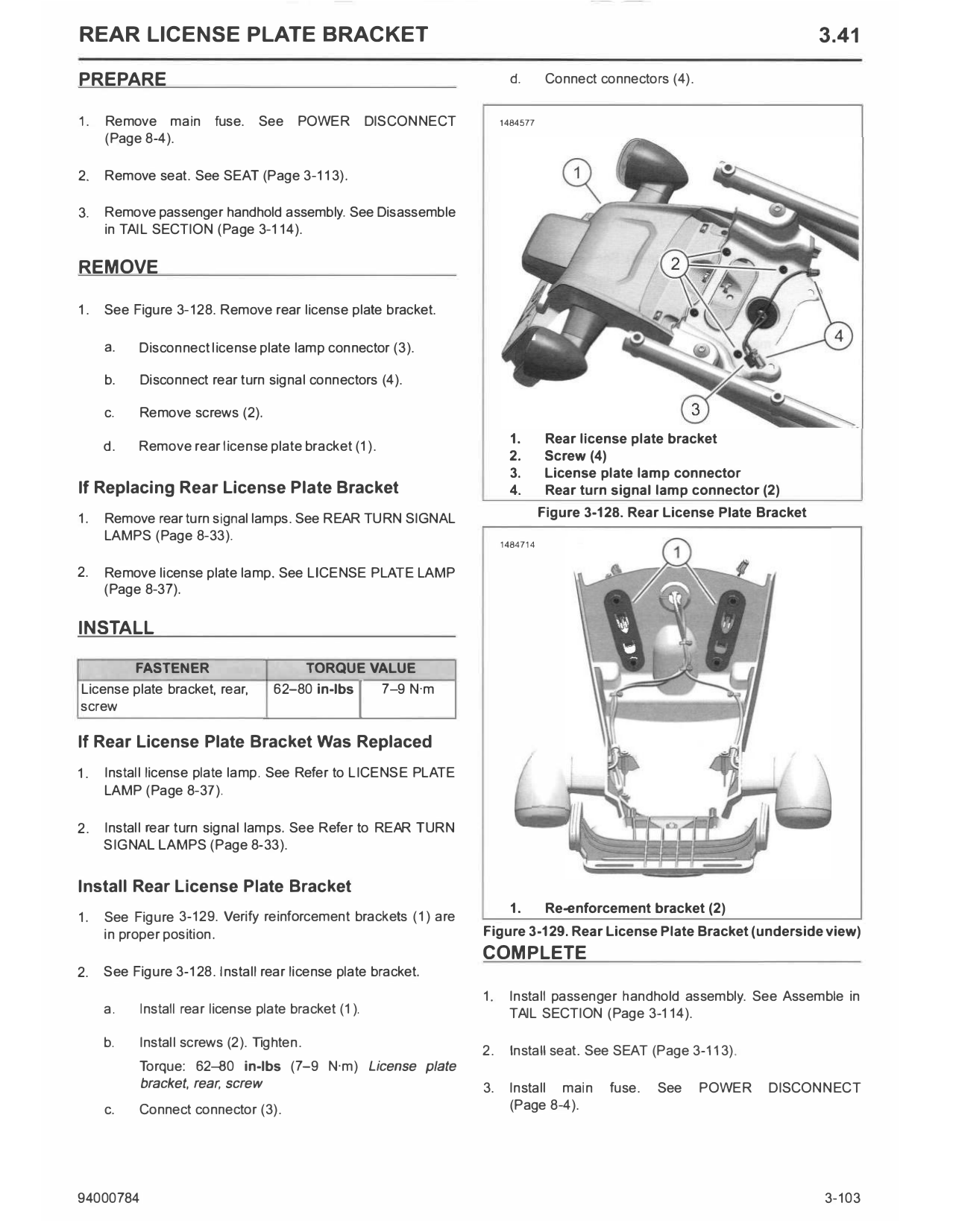

3.41 Rear License Plate Bracket

REAR LICENSE PLATE BRACKET                                                                                                  3.41
PREPARE                                                                  d.       Connect connectors (4).

1.   Remove main fuse.          See POWER            DISCONNECT        1484577
     (Page 8-4).

2.   Remove seat. See SEAT (Page 3-113).

3.   Remove passenger handhold assembly. See Disassemble
     in TAIL SECTION (Page 3-114).

REMOVE

1.   See Figure 3-128. Remove rear license plate bracket.

     a.   Disconnect license plate lamp connector (3).

     b.    Disconnect rear turn signal connectors (4).

     c.   Remove screws (2).

     d.   Remove rear license plate bracket (1).
                                                                        1.       Rear license plate bracket
                                                                        2.       Screw (4)
                                                                        3.       License plate lamp connector
If Replacing Rear License Plate Bracket                                 4.       Rear turn signal lamp connector (2)

1.   Remove rear turn signal lamps. See REAR TURN SIGNAL                         Figure 3-128. Rear License Plate Bracket
     LAMPS (Page 8-33).
                                                                       1484714

2.   Remove license plate lamp. See LICENSE PLATE LAMP
     (Page 8-37).

INSTALL

        FASTENER                      TORQUE VALUE
License plate bracket, rear,      62-80 in-lbs   7-9 N·m
                                               I
screw

If Rear License Plate Bracket Was Replaced
1.   Install license plate lamp. See Refer to LICENSE PLATE
     LAMP (Page 8-37).

2.   Install rear turn signal lamps. See Refer to REAR T URN
     SIGNAL LAMPS (Page 8-33).

Install Rear License Plate Bracket
1.   See Figure 3-129. Verify reinforcement brackets (1) are
                                                                        1.        Re-enforcement bracket (2)
     in proper position.                                          Figure 3-129. Rear License Plate Bracket (underside view)
                                                                  COMPLETE
2.   See Figure 3-128. Install rear license plate bracket.
                                                                  1.     Install passenger handhold assembly. See Assemble in
     a.    Install rear license plate bracket (1).                       TAIL SECTION (Page 3-114).

     b.   Install screws (2). Tighten.
                                                                  2.     Install seat. See SEAT (Page 3-113).
          Torque: 62--80 in-lbs (7-9 N·m) License plate
          bracket, rear, screw                                    3.     Install main       fuse.   See     POWER   DISCONNECT
     c.   Connect connector (3).                                         (Page 8-4).

94000784                                                                                                                    3-103
