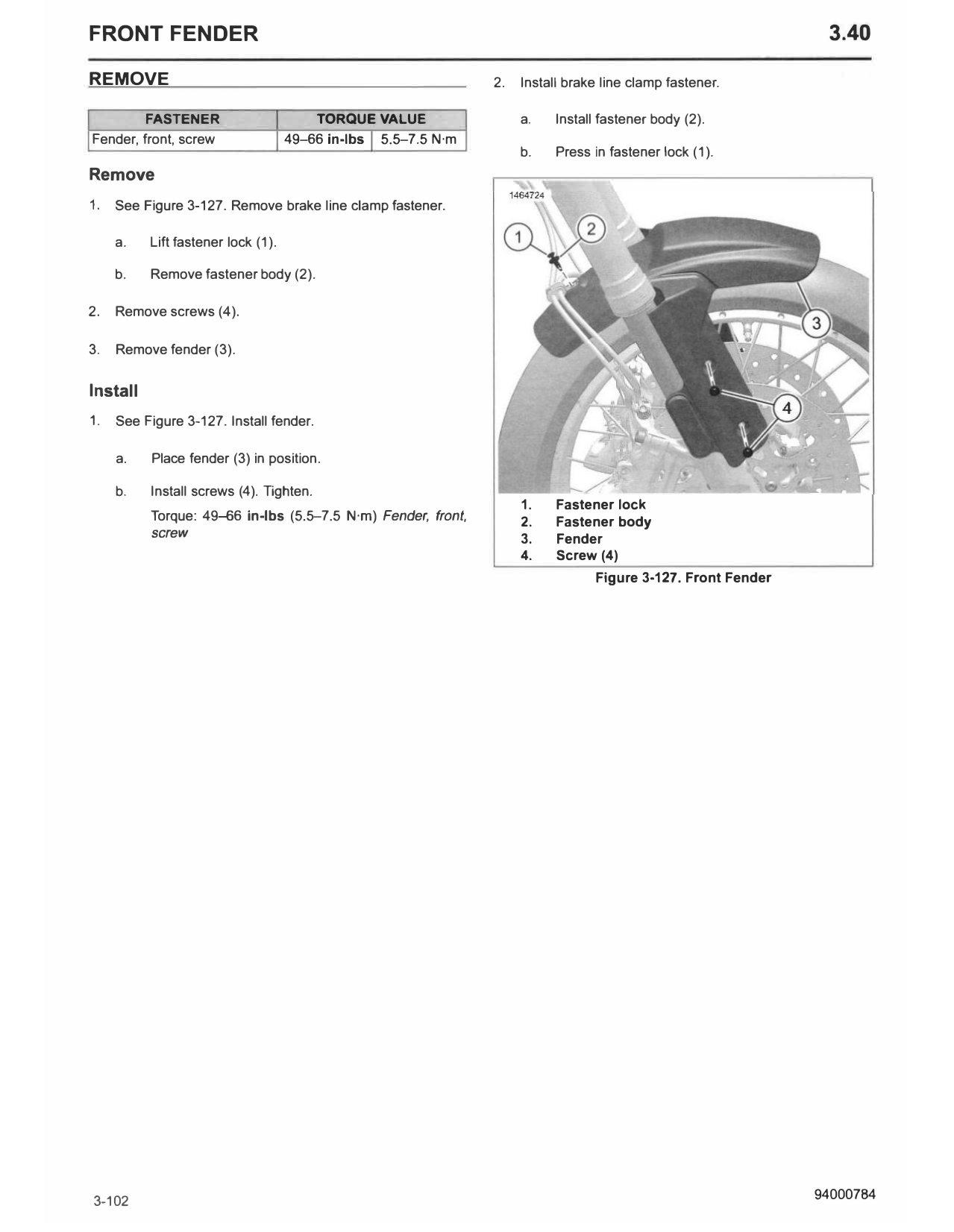

3.40 Front Fender

FRONT FENDER                                                                                                  3.40

REMOVE                                                         2.   Install brake line clamp fastener.

         FASTENER                       TORQUE VALUE                a.    Install fastener body (2).
Fender, front, screw                49-66 in-lbs 5.5-7.5 N·m
                                                                    b.    Press in fastener lock (1).
Remove
1.   See Figure 3-127. Remove brake line clamp fastener.

     a.   Lift fastener lock (1).

     b.   Remove fastener body (2).

2.   Remove screws (4).

3.   Remove fender (3).

Install
1.   See Figure 3-127. Install fender.

     a.   Place fender (3) in position.

     b.   Install screws (4). Tighten.
                                                                    1.   Fastener lock
          Torque: 49--66 in-lbs (5.5-7.5 N·m) Fender, front,        2.   Fastener body
          screw                                                     3.   Fender
                                                                    4.   Screw (4)
                                                                                Figure 3-127. Front Fender
