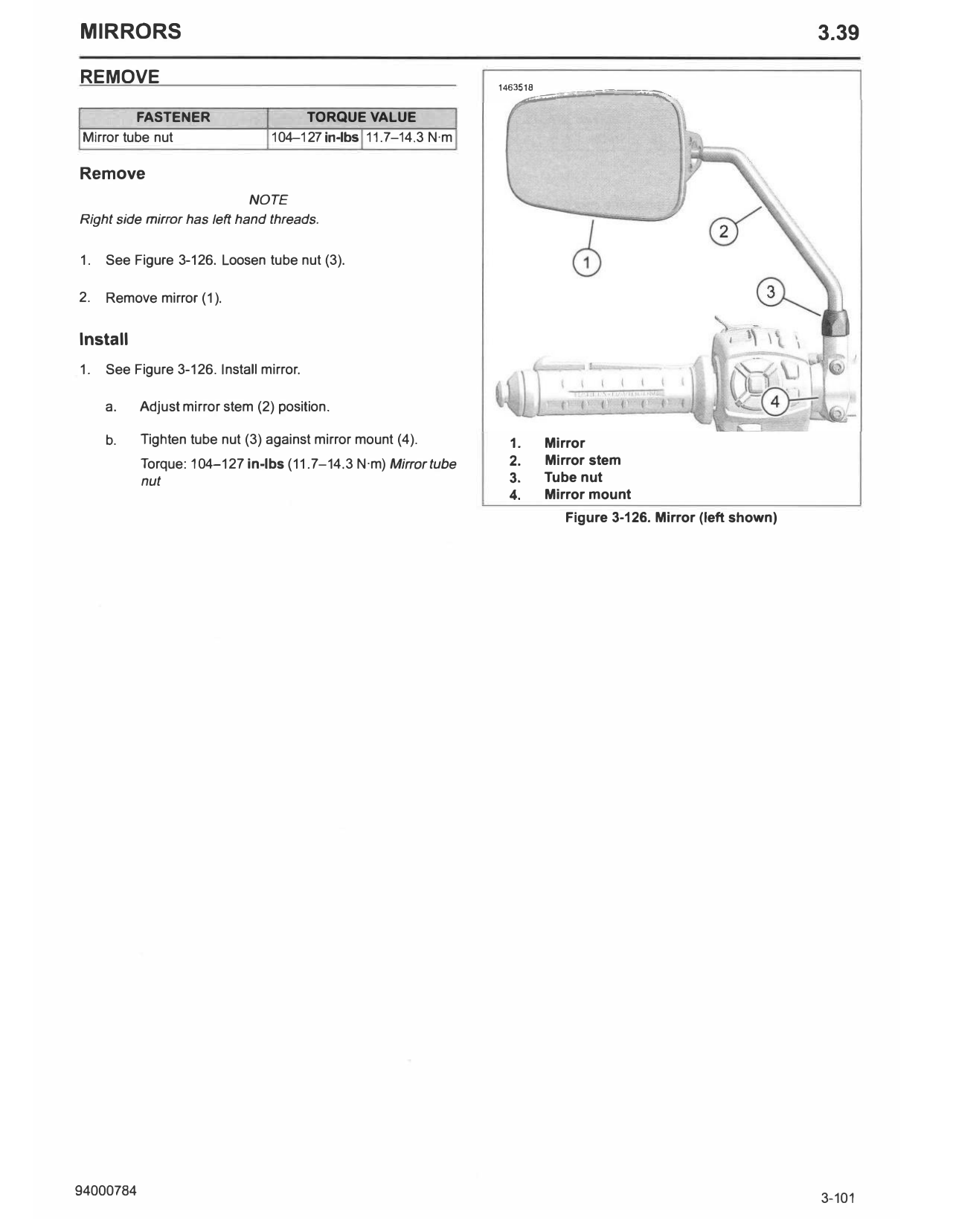

MIRRORS                                                                                                                   3.39
REMOVE                                                          1 453 51
                                                                     :'..: :S
                                                                                e   �=====�
          FASTENER                       TORQUE VALUE
Mirror tube nut                  104-127in-lbs 11.7-14.3 N·m

Remove
                             NOTE
Right side mirror has left hand threads.

1.   See Figure 3-126. Loosen tube nut (3).

2.   Remove mirror (1 ).

Install
1.   See Figure 3-126. Install mirror.

     a.    Adjust mirror stem (2) position.

     b.    Tighten tube nut (3) against mirror mount (4).         1.                Mirror
           Torque: 104-127 in-lbs (11.7-14.3 N·m) Mirror tube     2.                Mirror stem
           nut                                                    3.                Tube nut
                                                                  4.                Mirror mount
                                                                                      Figure 3-126. Mirror (left shown)
