FAIRING                                                                                                              3.31

REMOVE AND INSTALL                                            1495682   �

Remove

1.   See Figure 3-109. Remove fairing.

     a.   Pull fairing (1) away from the grommets (2).

                                                                1.      Fairing
                                                                2.      Grommet (4)
                                                                3.      Post (4)

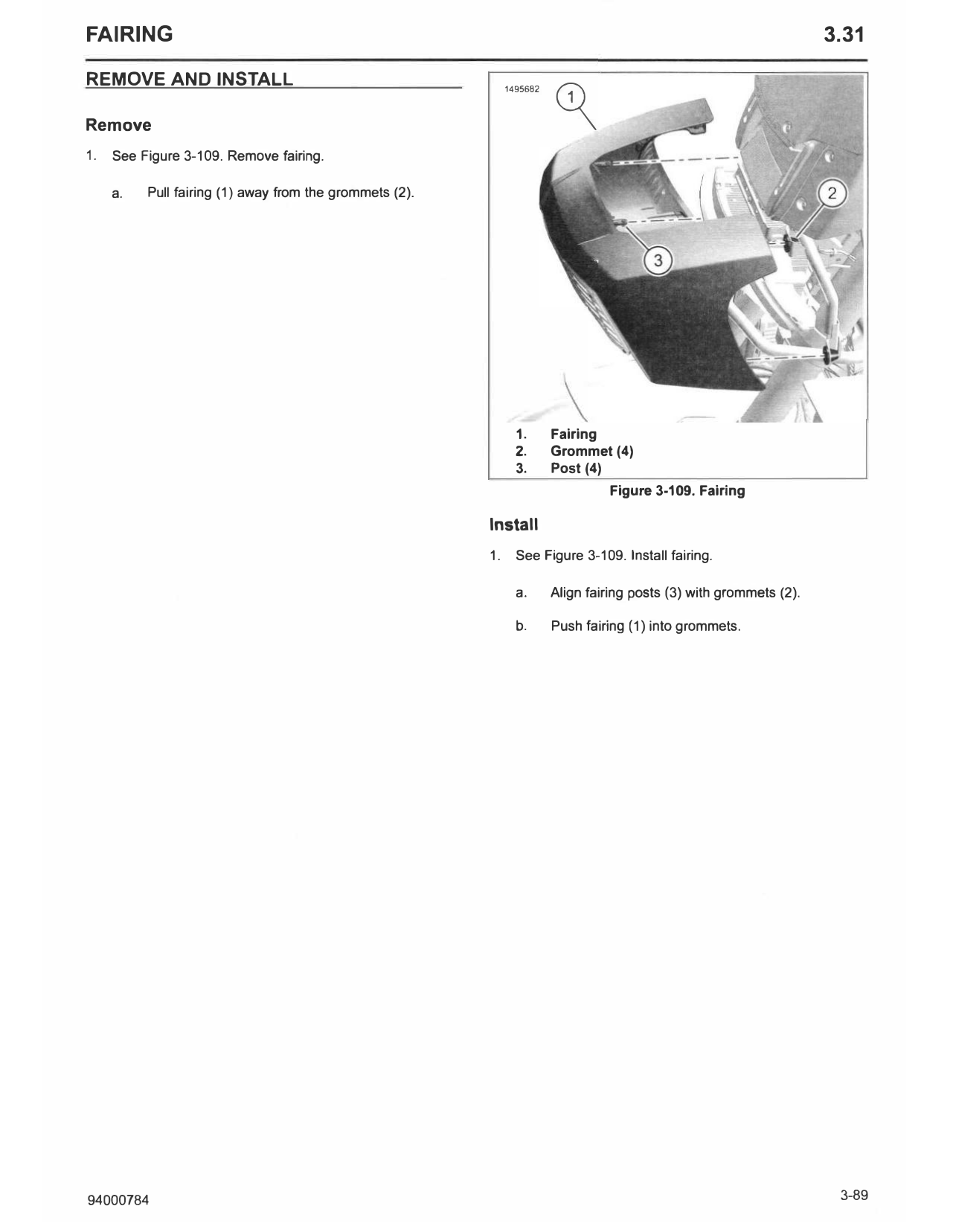

                                                                                  Figure 3-109. Fairing

                                                         Install

                                                         1.     See Figure 3-109. Install fairing.

                                                                a.      Align fairing posts (3) with grommets (2).

                                                                b.      Push fairing (1) into grommets.

94000784                                                                                                              3-89
