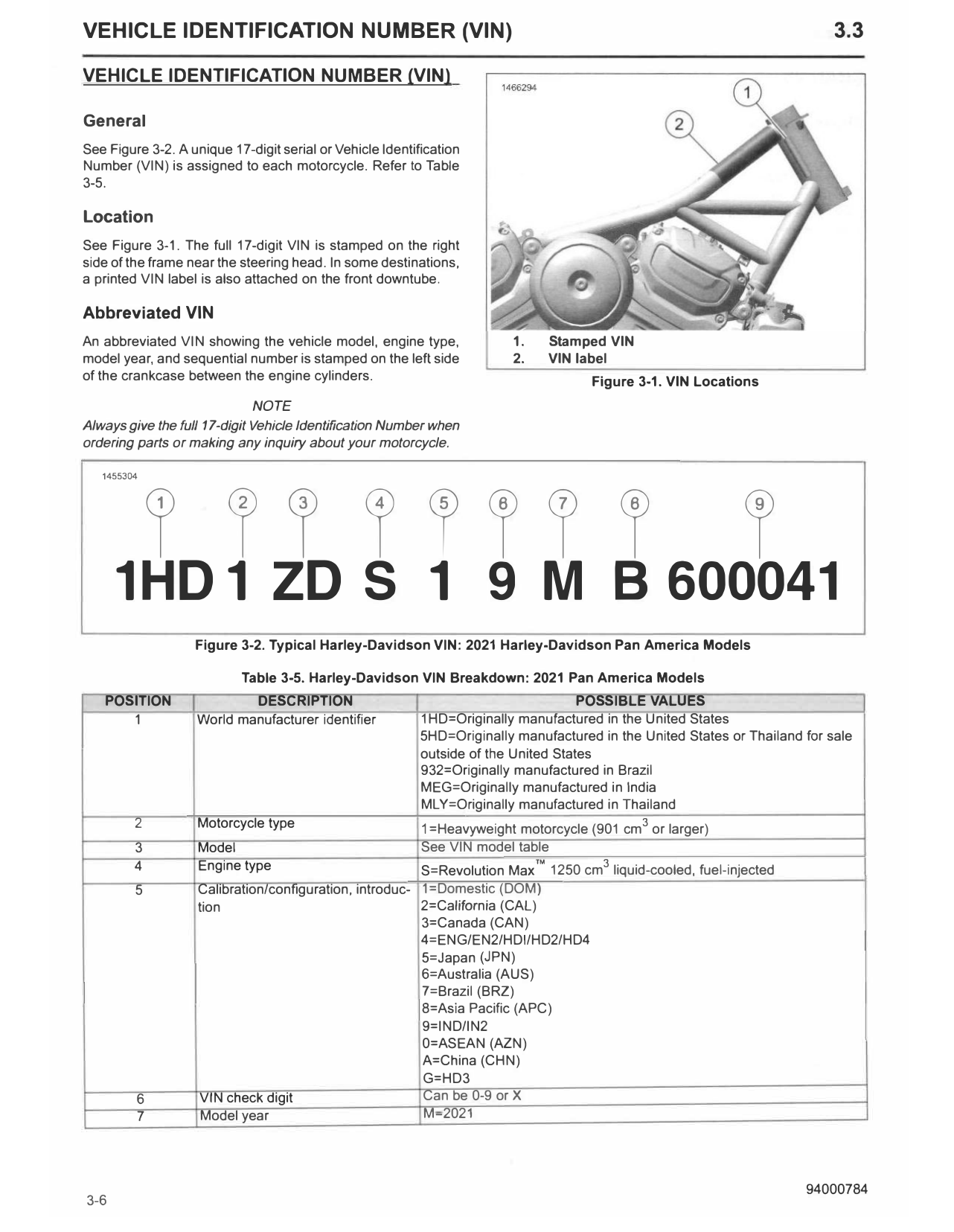

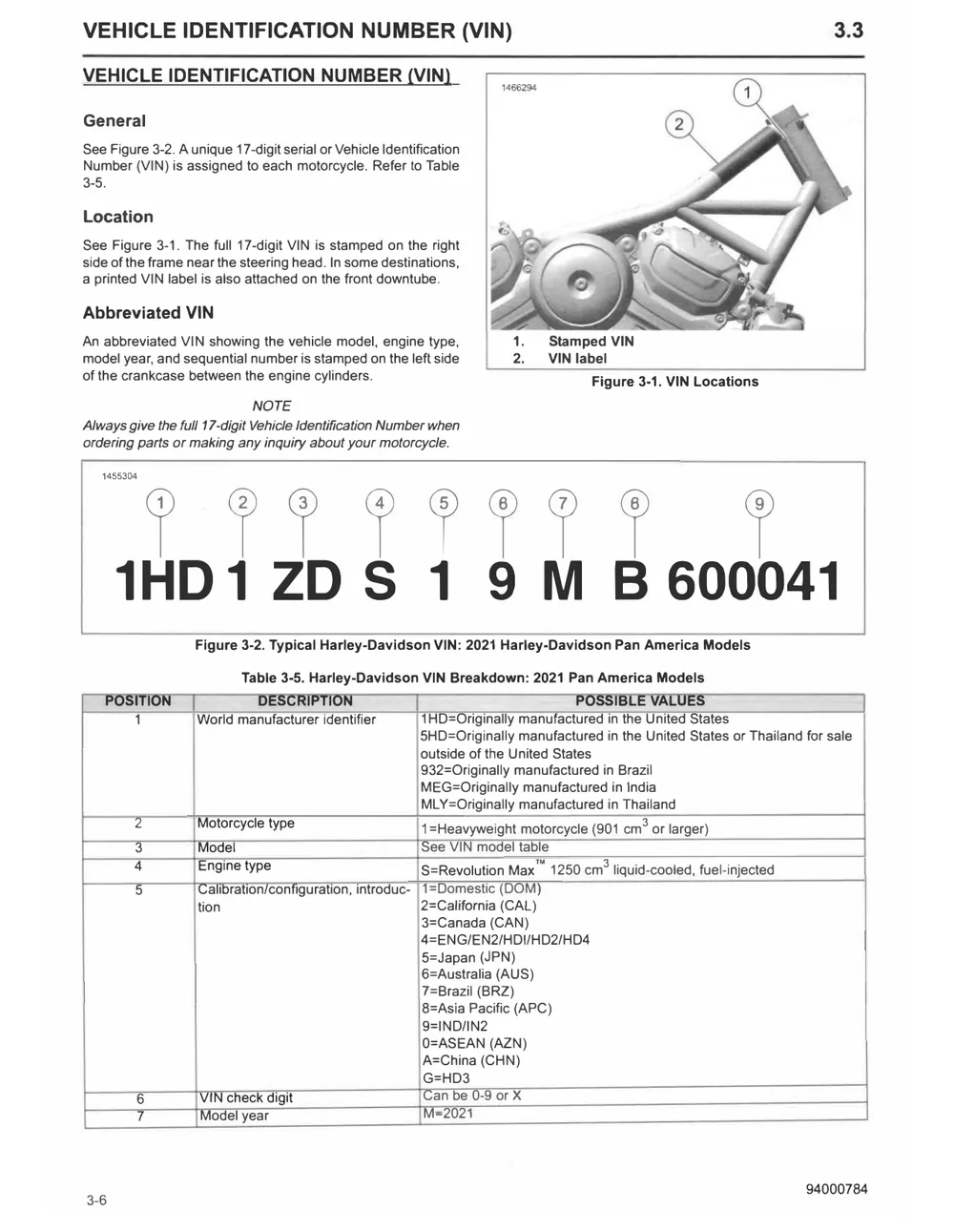

VEHICLE IDENTIFICATION NUMBER (VIN) 3.3
VEHICLE IDENTIFICATION NUMBER (VIN)
General
See Figure 3-2. A unique 17-digit serial or Vehicle Identification
Number (VIN) is assigned to each motorcycle. Refer to Table
3-5.
Location
See Figure 3-1. The full 17-digit VIN is stamped on the right
side of the frame near the steering head. In some destinations,
a printed VIN label is also attached on the front downtube.
Abbreviated VIN
An abbreviated VIN showing the vehicle model, engine type, 1. Stamped VIN
model year, and sequential number is stamped on the left side 2. VIN label
of the crankcase between the engine cylinders. Figure 3-1. VIN Locations
NOTE
Always give the fu/117-digit Vehicle Identification Number when
ordering parts or making any inquiry about your motorcycle.
TTT�TTTT T
1455304
1 HD 1 ZD S 1 9 M B 600041
Figure 3-2. Typical Harley-Davidson VIN: 2021 Harley-Davidson Pan America Models
Table 3-5. Harley-Davidson VIN Breakdown: 2021 Pan America Models
POSITION DESCRIPTION POSSIBLE VALUES
1 World manufacturer identifier 1 HD=Originally manufactured in the United States
5HD=Originally manufactured in the United States or Thailand for sale
outside of the United States
932=Originally manufactured in Brazil
MEG=Originally manufactured in India
MLY=Originally manufactured in Thailand
2 Motorcycle type 3
1 =Heavyweight motorcycle (901 cm or larger)
3 Model See VIN model table
4 Engine type TM 3
S=Revolution Max 1250 cm liquid-cooled, fuel-injected
5 Calibration/configuration, introduc- 1=Domestic (DOM)
tion 2=California (CAL)
3=Canada (CAN)
4=ENG/EN2/HDI/HD2/HD4
5=Japan (JPN)
6=Australia (AUS)
7=Brazil (BRZ)
8=Asia Pacific (APC)
9=IND/IN2
0=ASEAN (AZN)
A=China (CHN)
G=HD3
6 VIN check digit Can be 0-9 or X
7 Model year M-2021

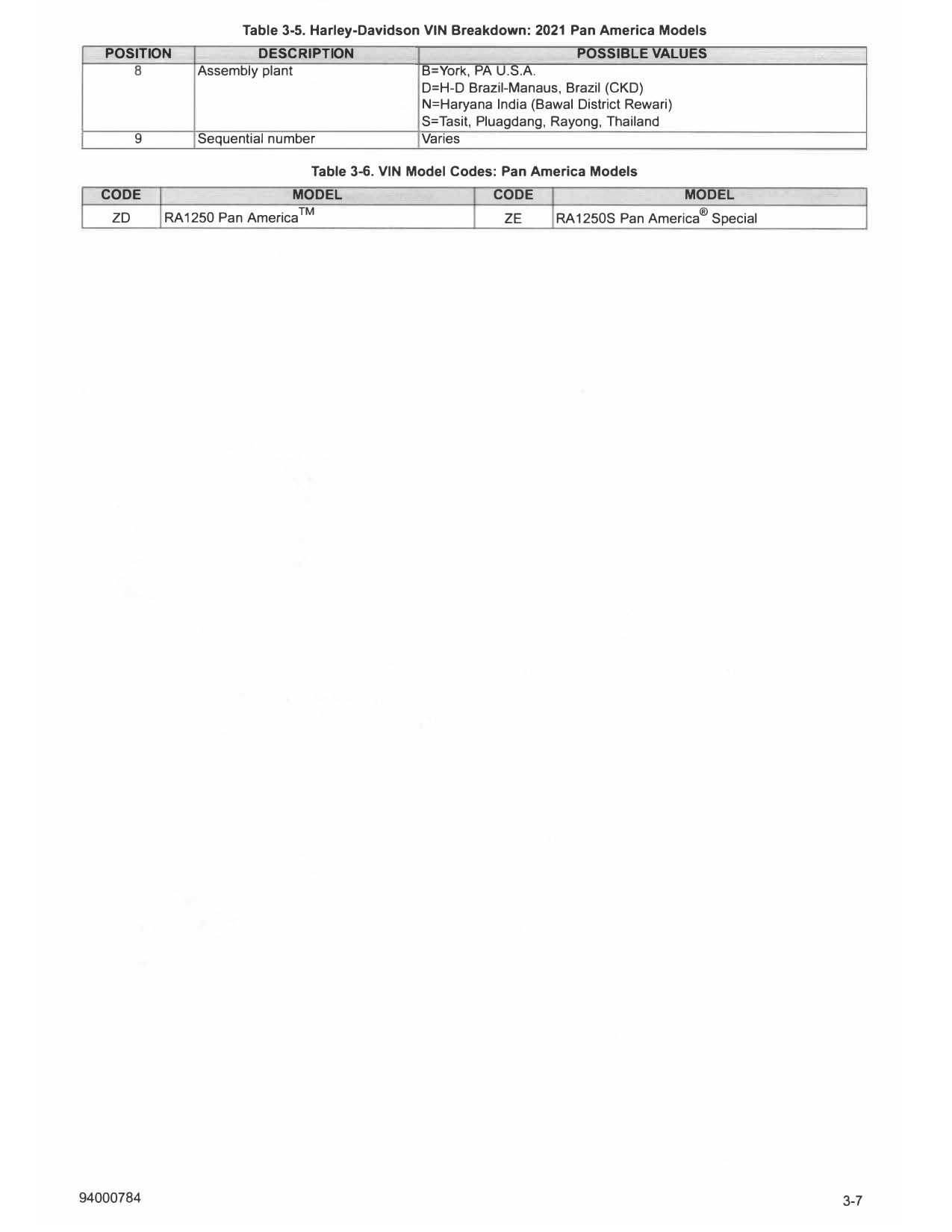

Table 3-5. Harley-Davidson VIN Breakdown: 2021 Pan America Models
POSITION DESCRIPTION POSSIBLE VALUES
8 Assembly plant B=York, PA U.S.A.
D=H-D Brazil-Manaus, Brazil (CKD)
N=Haryana India (Bawal District Rewari)
S=Tasit, Pluagdang, Rayong, Thailand
9 Sequential number Varies
Table 3-6. VIN Model Codes: Pan America Models
CODE MODEL CODE MODEL
TM ®
ZD RA 1250 Pan America ZE RA1250S Pan America Special
