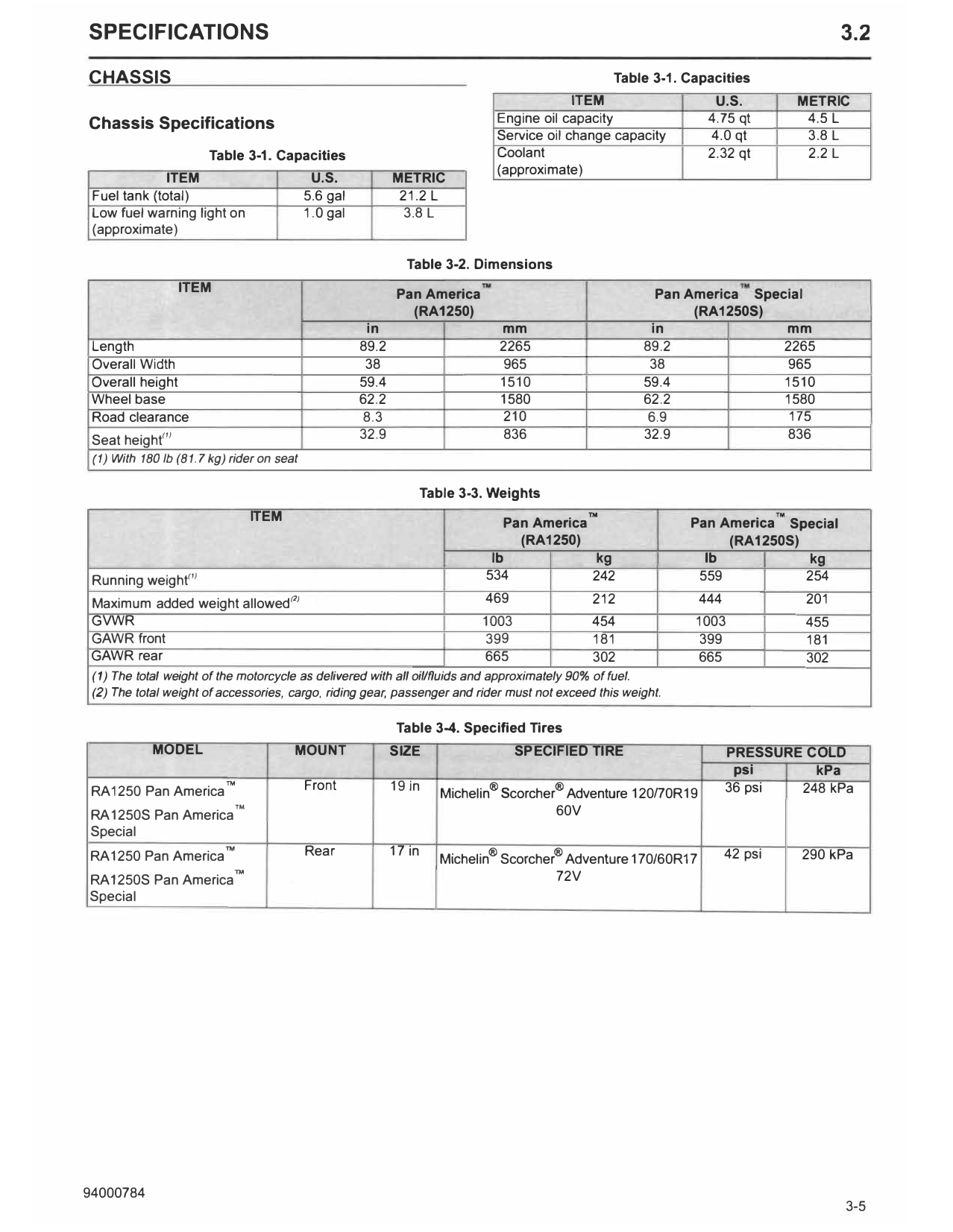

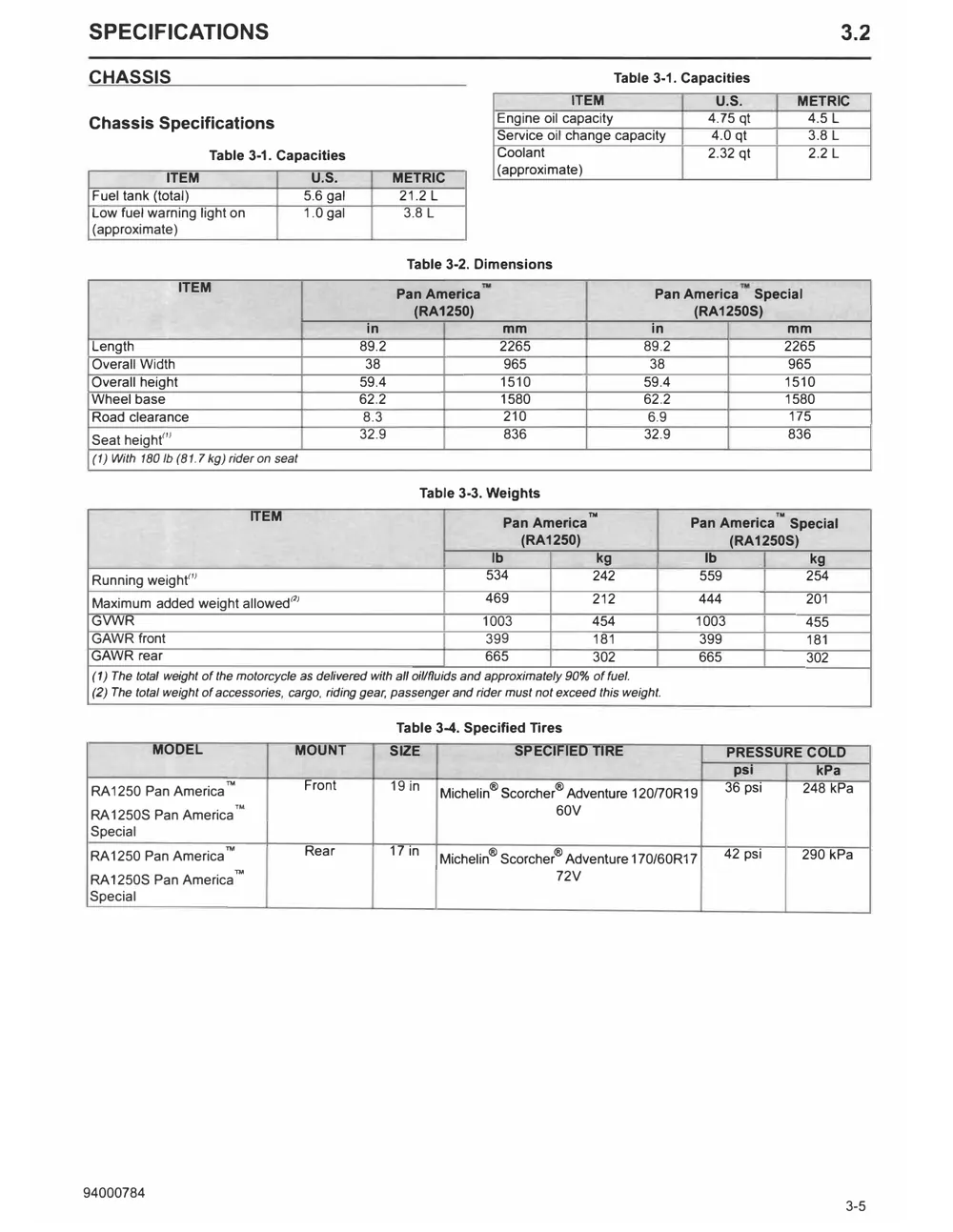

3.2 Specifications

SPECIFICATIONS                                                                                                                          3.2
CHASSIS                                                                                          Table 3-1. Capacities
                                                                                          ITEM                  U.S.              METRIC
Chassis Specifications                                                       Engine oil capacity               4.75 qt             4.5 L
                                                                             Service oil change capacity       4.0 qt              3.8 L
                       Table 3-1. Capacities                                 Coolant                           2.32 qt             2.2 L
                                                                             (approximate)
             ITEM                            U.S.            METRIC
 Fuel tank (total)                          5.6 gal           21.2 L
 Low fuel warning light on                  1.0 gal            3.8 L
 (approximate)

                                                               Table 3-2. Dimensions
                 ITEM                                         Pan America                                Pan America Special
                                                                (RA1250)                                      (RA1250S)
                                                       in                       mm                      in               mm
 Length                                               89.2                      2265                  89.2               2265
 Overall Width                                         38                        965                   38                 965
 Overall height                                       59.4                      1510                  59.4              1510
 Wheel base                                           62.2                      1580                  62.2               1580
 Road clearance                                       8.3                        210                   6.9                175
 Seat height°1                                        32.9                       836                  32.9                836
 (1) With 180 lb (81.7 kg) rider on seat

                                                                 Table 3-3. Weights
                                 ITEM                                          Pan America
                                                                                            TM                               TM
                                                                                                             Pan America Special
                                                                                 (RA1250)                         (RA1250S)
                                                                             lb             kg                 lb            kg
 Running weight°1                                                           534            242                559           254
 Maximum added weight allowed1 J
                                        2                                   469              212              444                 201
 GVWR                                                                       1003             454             1003                 455
 GAWR front                                                                 399              181              399                 181
 GAWR rear                                                                  665              302              665                 302
 (1) The total weight of the motorcycle as delivered with all oil/fluids and approximately 90% of fuel.
 (2) The total weight of accessories, cargo, riding gear. passenger and rider must not exceed this weight.

                                                              Table 3-4. Specified Tires
            MODEL                       MOUNT                SIZE                  SPECIFIED TIRE                   PRESSURE COLD
                                                                                                                     psi      kPa
                          ™                 Front            19 in
 RA1250 Pan America                                                         ®           ®
                                                                     Michelin scorcher Adventure 120/70R19          36 psi  248 kPa
RA1250S Pan America
                            TM
                                                                                      60V
Special
RA1250 Pan America
                          TM
                                            Rear             17 in          ®           ®                           42 psi        290 kPa
                                                                     Michelin Scorcher Adventure 170/60R 17
RA 1250S Pan America
                           TM
                                                                                      72V
Special
