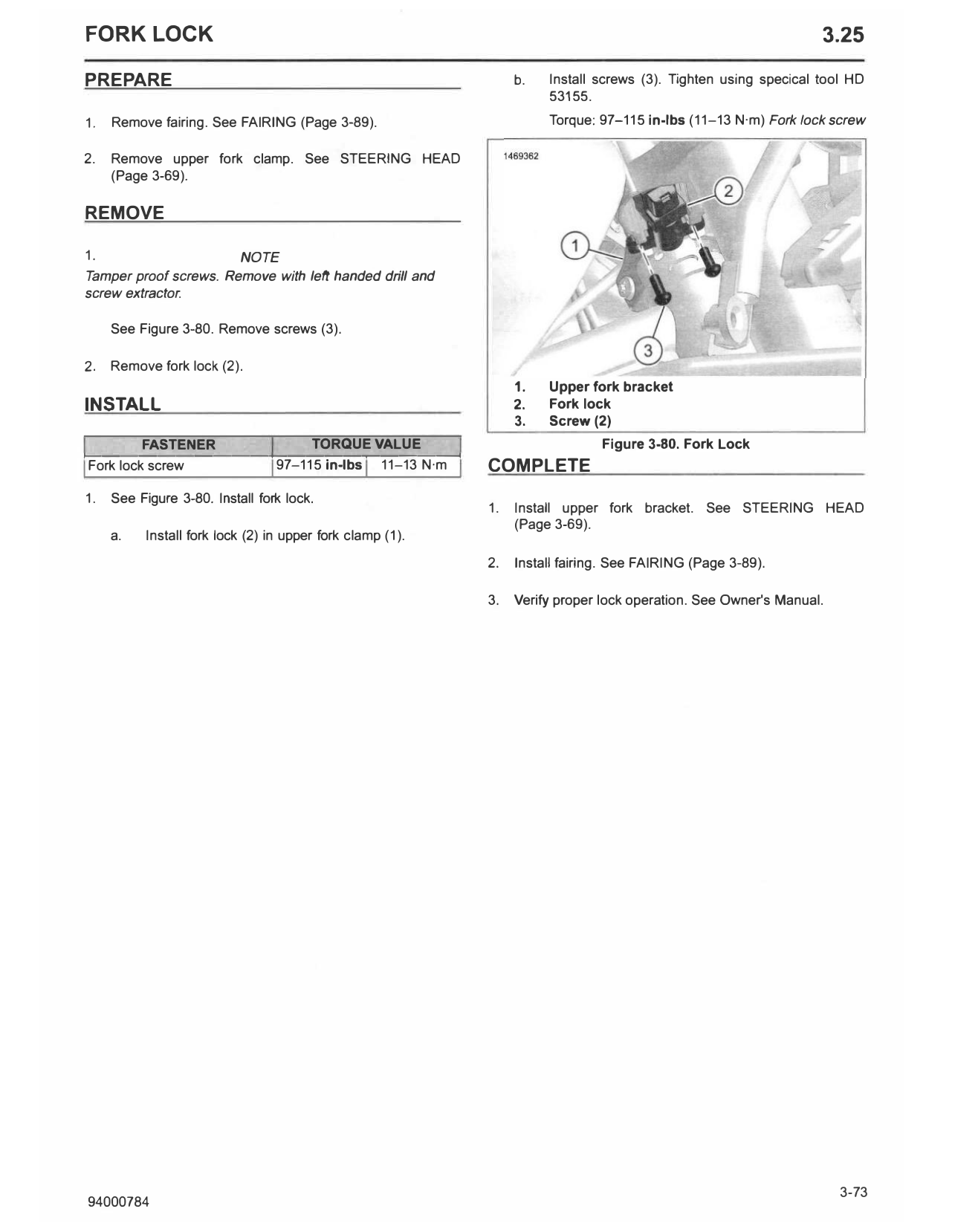

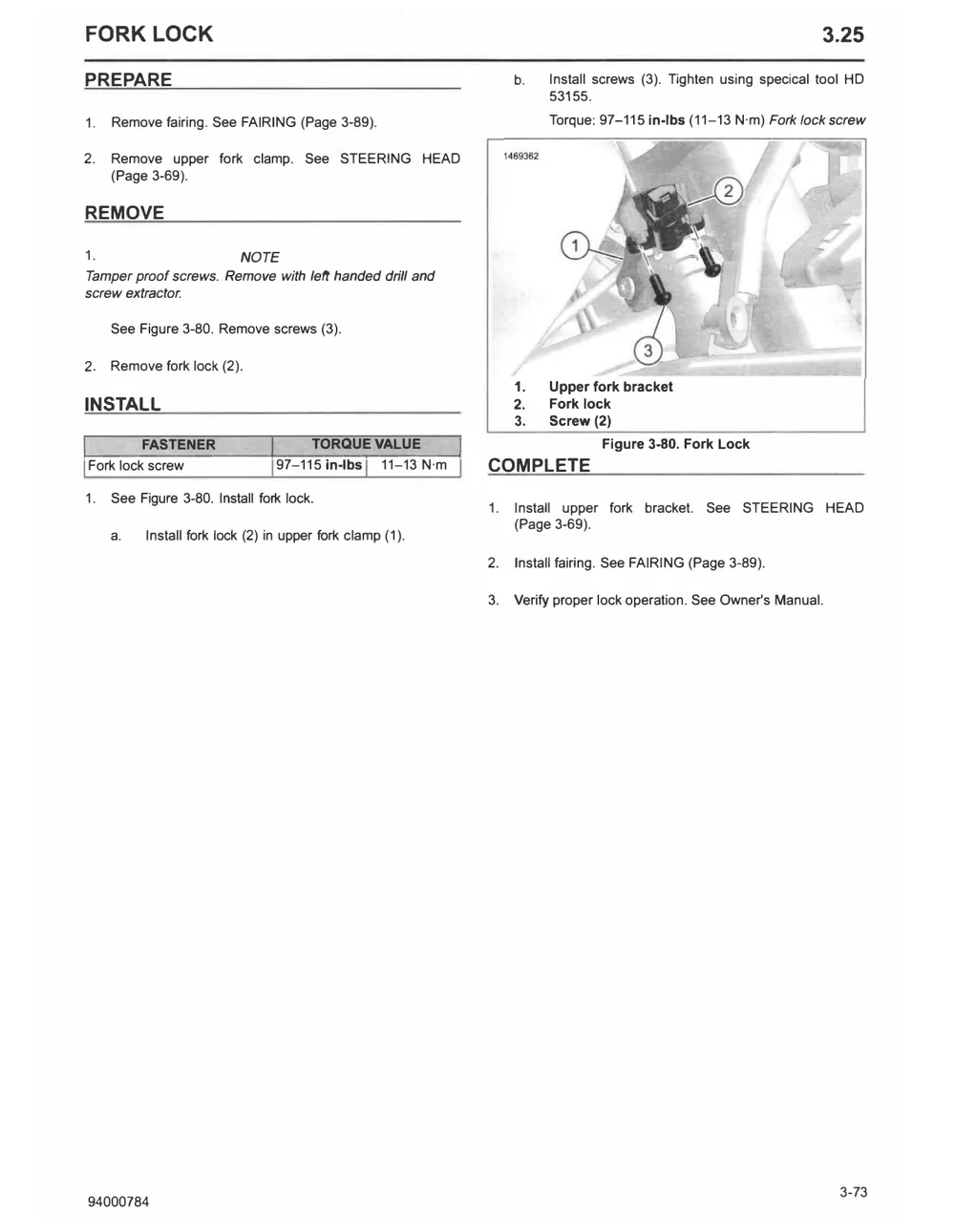

3.25 Fork Lock

FORK LOCK                                                                                                            3.25

PREPARE                                                              b.   Install screws (3). Tighten using specical tool HD
                                                                          53155.
1.   Remove fairing. See FAIRING (Page 3-89).                             Torque: 97-115 in-lbs (11-13 N·m) Fork lock screw

2.   Remove upper fork clamp. See STEERING HEAD
     (Page 3-69).

REMOVE

1.                     NOTE
Tamper proof screws. Remove with left handed drill and
screw extractor.

     See Figure 3-80. Remove screws (3).

2.   Remove fork lock (2).
                                                                     1.   Upper fork bracket
INSTALL                                                              2.   Fork lock
                                                                     3.   Screw (2)
          FASTENER                      TORQUE VALUE                               Figure 3-80. Fork Lock
1------------+-----.....---------!
Fork lock screw                   97-115 in-lbs     11-13 N·m   COMPLETE
1.   See Figure 3-80. Install fork lock.
                                                                1.   Install upper fork bracket. See STEERING HEAD
                                                                     (Page 3-69).
     a.    Install fork lock (2) in upper fork clamp (1).
                                                                2.   Install fairing. See FAIRING (Page 3-89).

                                                                3.   Verify proper lock operation. See Owner's Manual.
