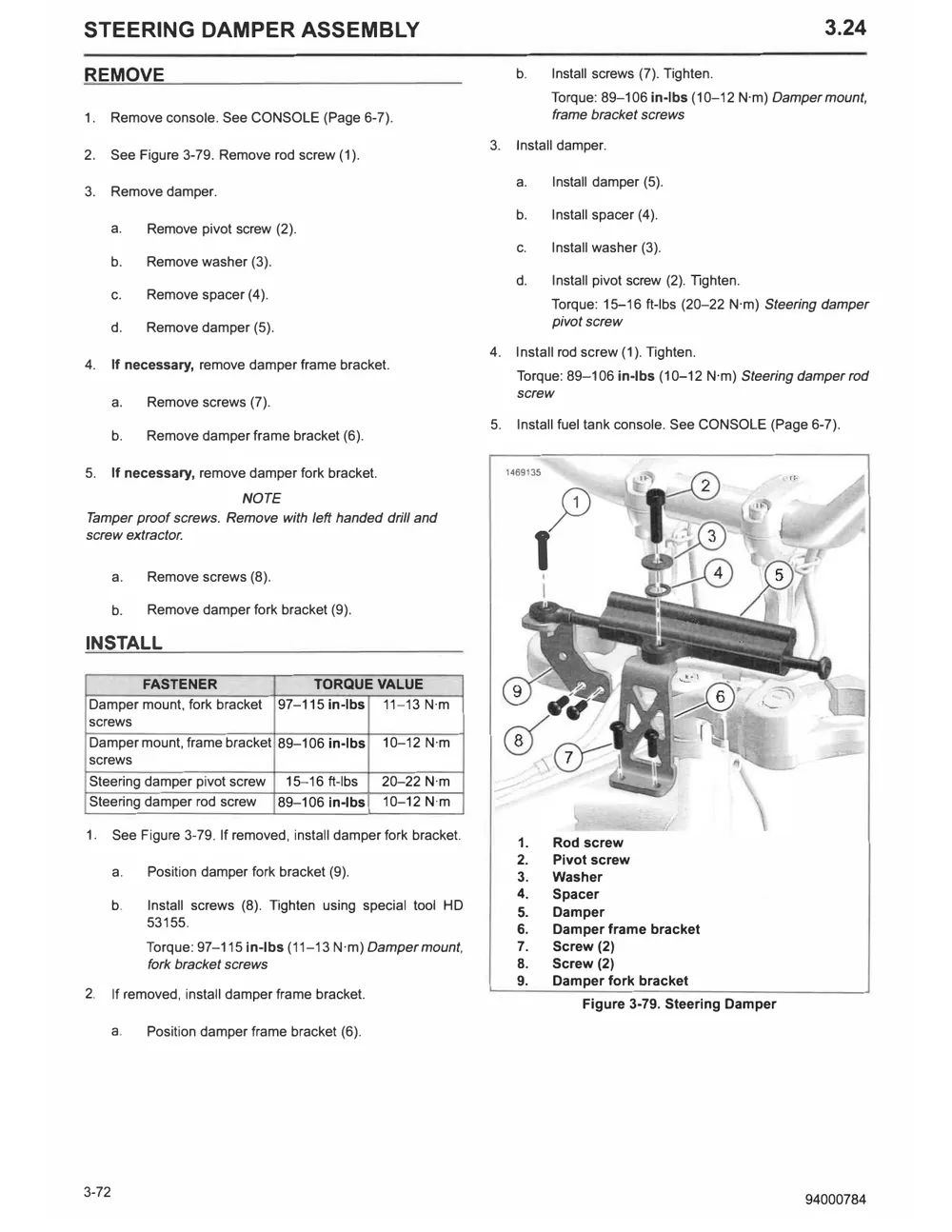

STEERING DAMPER ASSEMBLY                                                                                                   3.24

REMOVE                                                                    b.      Install screws (7). Tighten.
                                                                                  Torque: 89-106 in-lbs (10-12 N·m) Damper mount,
1.   Remove console. See CONSOLE (Page 6-7).                                      frame bracket screws

                                                                   3.     Install damper.
2.   See Figure 3-79. Remove rod screw (1).
                                                                          a.      Install damper (5).
3.     Remove damper.
                                                                          b.      Install spacer (4).
     a.     Remove pivot screw (2).
                                                                          c.      Install washer (3).
     b.     Remove washer (3).
                                                                          d.      Install pivot screw (2). Tighten.
       c.   Remove spacer (4).
                                                                                  Torque: 15-16 fl-lbs (20-22 N·m) Steering damper
     d.     Remove damper (5).                                                    pivot screw

                                                                   4.     Install rod screw (1). Tighten.
4.     If necessary, remove damper frame bracket.
                                                                          Torque: 89--106 in-lbs (10-12 N·m) Steering damper rod
                                                                          screw
       a.   Remove screws (7).
                                                                   5.     Install fuel tank console. See CONSOLE (Page 6-7).
       b.   Remove damper frame bracket (6).

5.     If necessary, remove damper fork bracket.                        1469135

                            NOTE
                                                                                fa
                                                                               1
Tamper proof screws. Remove with left handed drill and
screw extractor.

       a.   Remove screws (8).

       b.   Remove damper fork bracket (9).

INSTALL

       FASTENER                  TORQUE VALUE
Damper mount, fork bracket 97-115 in-lbs 11-13 N·m

                                                                                                                       ------
screws
Damper mount, frame bracket 89-106 in-lbs 10-12 N·m

                                                                   ---
screws
Steering damper pivot screw 15-16 ft-lbs           20-22 N·m
Steering damper rod screw   89-106 in-lbs          10-12 N·m

1.     See Figure 3-79. If removed, install damper fork bracket.
                                                                          1.      Rod screw
                                                                          2.      Pivot screw
       a.   Position damper fork bracket (9).                             3.      Washer
                                                                          4.      Spacer
       b.   Install screws (8). Tighten using special tool HD             5.      Damper
            53155.                                                        6.      Damper frame bracket
            Torque: 97-115 in-lbs (11-13 N·m) Damper mount,               7.      Screw (2)
            fork bracket screws                                           8.      Screw (2)
                                                                          9.      Damper fork bracket
2.     If removed, install damper frame bracket.

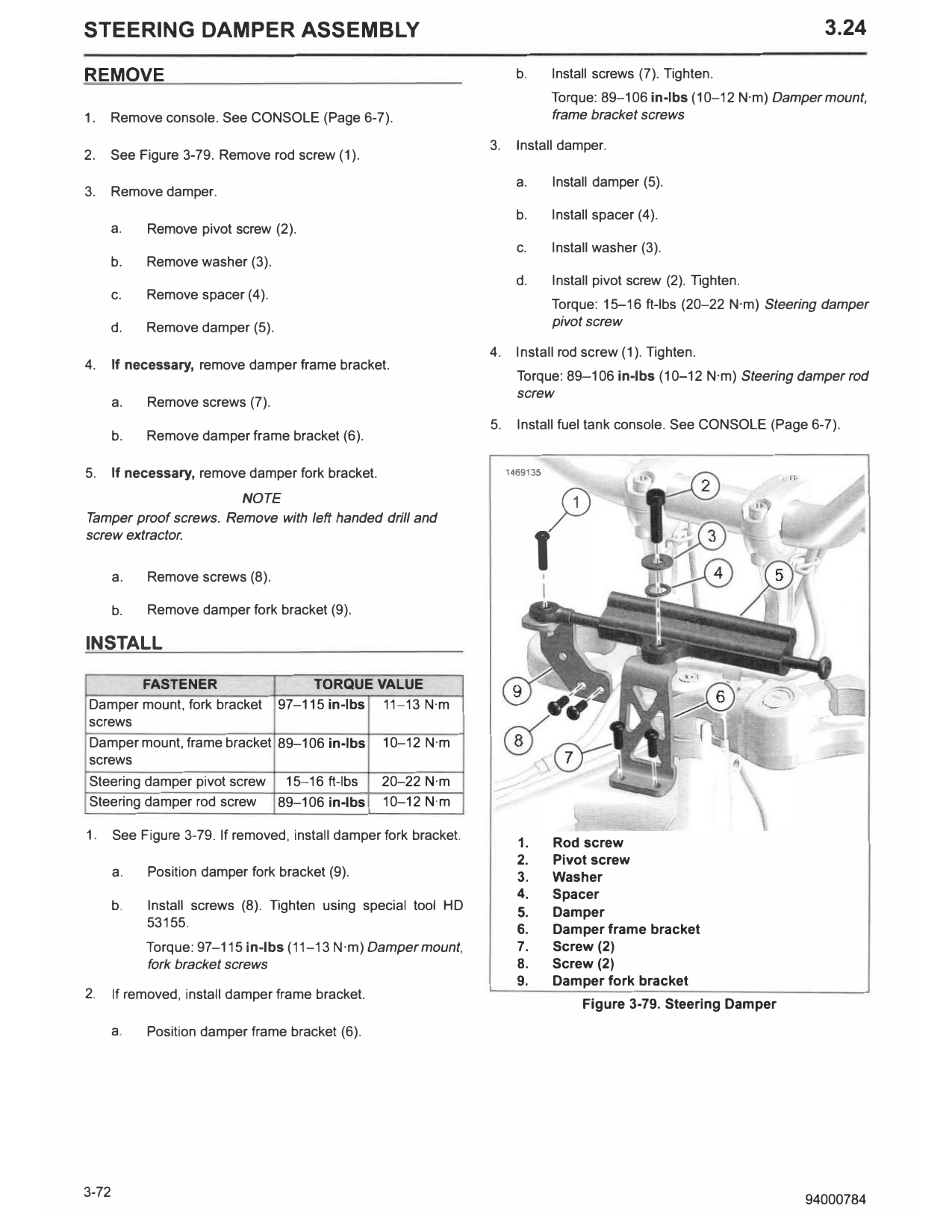

                                                                                       Figure 3-79. Steering Damper
       a.   Position damper frame bracket (6).
