STEERING HEAD/FORK STEM AND BRACKET ASSEMBLY 3.23
PREPARE 2. NOTE
Removing bearings destroys them. Always install new
1. Remove steering head cover. See SIDE COVERS bearings upon assembly.
(Page 3-52).
Replace bearings as necessary.
2. Remove main fuse. See POWER DISCONNECT
(Page 8-4). 3. NOTE
Internal reliefs in steering head allow punch access to
3. Remove fairing. See FAIRING (Page 3-89). bearing cups.
4. Remove steering damper, if equipped. See STEERING If necessary: Remove bearing cups (7) from steering head
DAMPER ASSEMBLY (Page 3-72). (9).
5. Remove brake line P-clamp fastener from upper fork. See 4. Inspect bores in steering head.
BRAKE LINES (Page 3-40).
a. Remove any paint, rust or burrs.
6. Remove handlebar. See HANDLEBAR (Page 3-99).
INSTALL
7. Remove front fork. See FRONT FORK (Page 3-53).
PART NUMBER TOOL NAME
REMOVE HD-39302 STEERING HEAD BEARING RACE
INSTALLER
Upper Fork Bracket FASTENER TORQUE VALUE
1. See Figure 3-78. Remove upper fork bracket assembly. Fork stem pinch screw 15-18 ft-lbs 20-24 N·m
Fork stem screw, 1st torque 14-15 ft-lbs 19-20 N·m
a. Remove fork stem screw (1). Fork stem screw, final torque 119--128 in-lbs 13.5-14.5 N·m
b. Remove washer (2). CONSUMABLE PART NUMBER
SPECIAL 99857-97A
c. Loosen fork stem pinch screw (5).
PURPOSE
GREASE
d. Remove upper fork bracket (3).
A WARNING
2. Inspect fork stem and lower fork bracket assembly (10).
Replace as necessary. Properly seat bearing cups in steering head bore. Improper
seating can loosen fork stem bearings adversely affecting
3. If replacing upper fork bracket: stability and handling, which could result in death or
serious injury. (00302a)
a. Remove fork lock. See FORK LOCK (Page 3-73).
A WARNING
4. Remove steering damper bracket. See STEERING Properly adjust fork stem bearings. Improper adjustments
DAMPER ASSEMBLY (Page 3-72). can adversely affect stability and handling, which could
result in death or serious injury. (00301c)
Lower Fork Bracket
Steering Head Bearings
1. Remove upper fork bracket assembly.
NOTICE
2. Remove fork stem and lower fork bracket assembly (10)
Replace both bearing assemblies even if one assembly
from steering head (9).
appears to be good. Mismatched bearings can lead to
excessive wear and premature replacement. (00532c)
Steering Head Bearings
1. Inspect steering head bearings (7) and bearing cups (8) 1. See Figure 3-78.lf removed: Install new bearing cups (10)
for: using bearing installer.
Special Tool: STEERING HEAD BEARING RACE
a. Pitting INSTALLER (HD-39302)
b. Wear 2. Grease steering head bearings (9).
Consumable: SPECIAL PURPOSE GREASE (99857-97A)
C. Scoring
3. If removed: Install new dust shield (8) and new steering
head bearing (9) on fork stem and lower fork bracket
assembly (12).
Lower Fork Bracket
1. Install front fork stem and lower fork bracket assembly.
a. Install fork stem through steering head (11).
b. Install new upper steering head bearing (9) and new
dust seal (8).
2. Install upper fork bracket (5).
Upper Fork Bracket
1. If replacing upper fork bracket:
a. Install fork lock. See FORK LOCK (Page 3-73).
[2]
2. Install steering damper bracket. See STEERING DAMPER �
ASSEMBLY (Page 3-72). J
3. Install upper fork bracket assembly. 10
11
a. Install washer (2) and fork stem screw (1). Tighten. J
Torque: 14-15 ft-lbs (19-20 N·m) Fork stem screw, h., l
f,
1st torque :.-- ;::;__
b. Loosen fork stem screw. \-
° 1. Fork stem screw
Angle: 45
2. Washer
c. Final tighten fork stem screw. 3. Upper fork bracket
Torque: 119-128 in-lbs (13.5--14.5 N·m) Fork stem 4. Upper fork bracket pinch screw (2)
screw, final torque 5. Fork stem pinch screw
6. Dust seal (2)
4. Tighten fork stem pinch screw (7). 7. Steering head bearing (2)
8. Bearing cup (2)
Torque: 15--18 ft-lbs (20-24 N·m) Fork stem pinch screw
9. Steering head
10. Fork stem and lower fork bracket assembly
11. Lower fork bracket pinch screw (4)

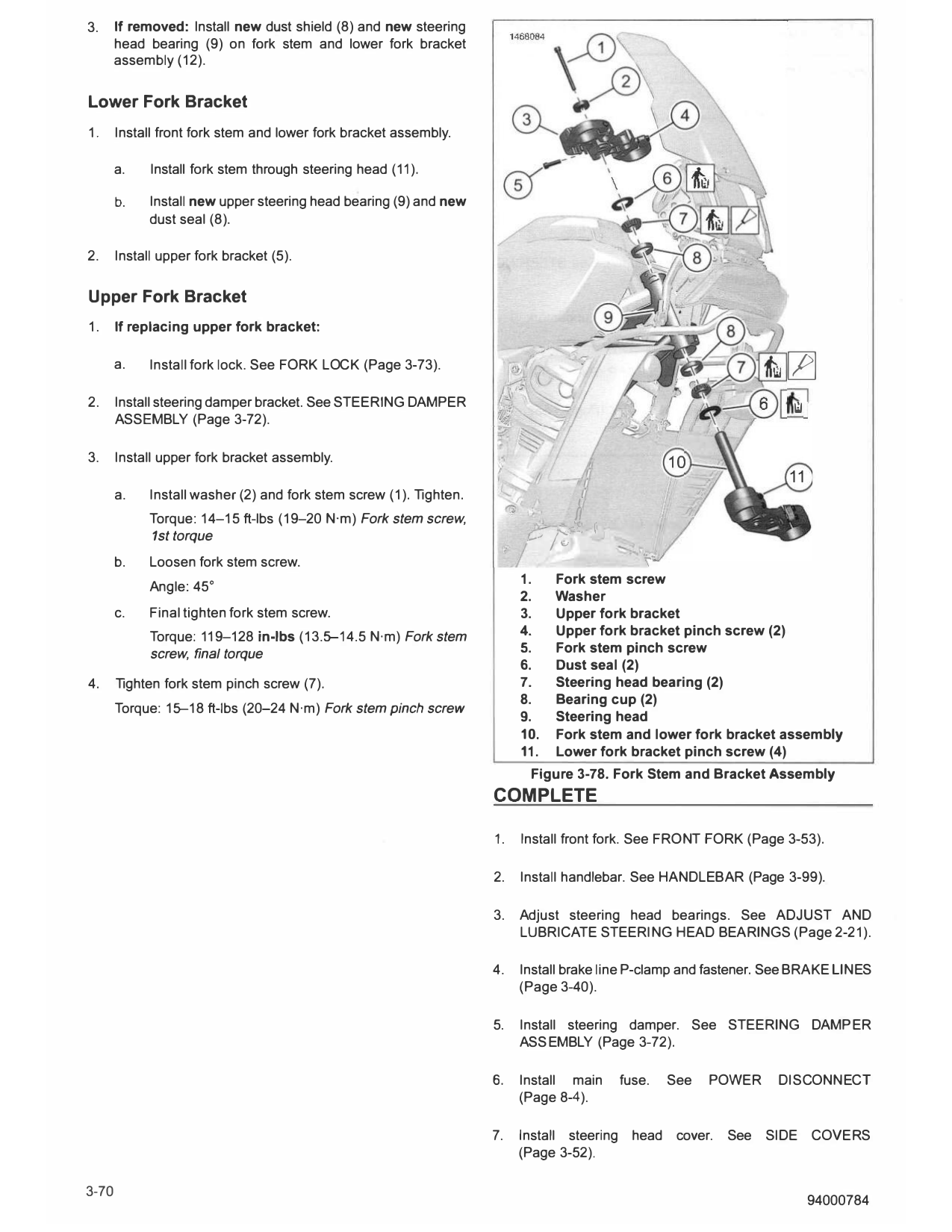

Figure 3-78. Fork Stem and Bracket Assembly
COMPLETE
1. Install front fork. See FR ONT FORK (Page 3-53).
2. Install handlebar. See HANDLEBAR (Page 3-99).
3. Adjust steering head bearings. See ADJUST AND
LUBRICATE STEERING HEAD BEARINGS (Page 2-21).
4. Install brake line P-clamp and fastener. See BRAKE LINES
(Page 3-40).
5. Install steering damper. See STEERING DAMPER
ASSEMBLY (Page 3-72).
6. Install main fuse. See POWER DISCONNECT
(Page 8-4).
7. Install steering head cover. See SIDE COVERS
(Page 3-52).
8. Install fairing. See FAIRING (Page 3-89).
